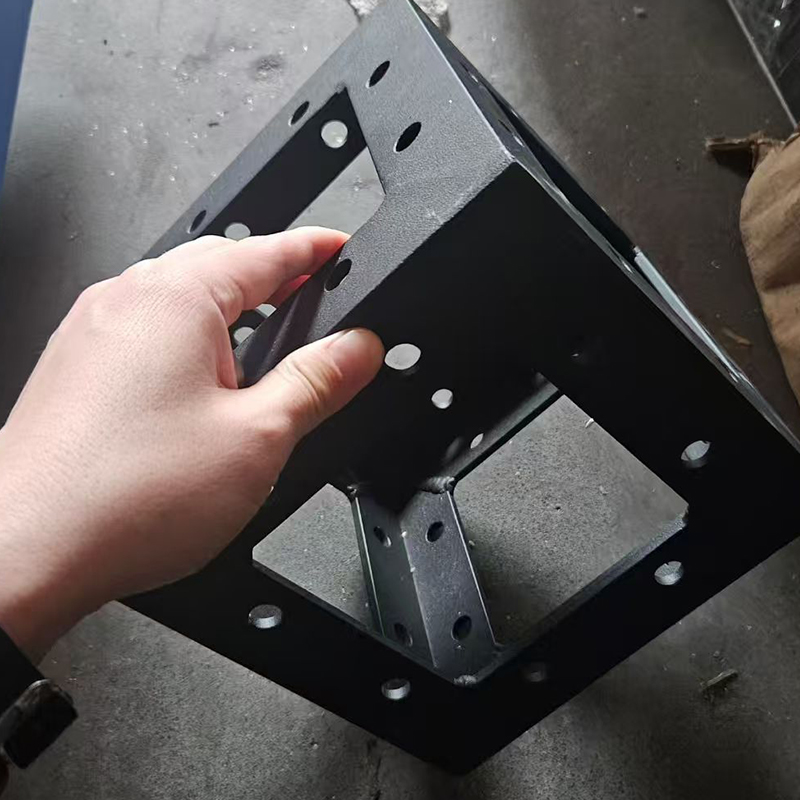

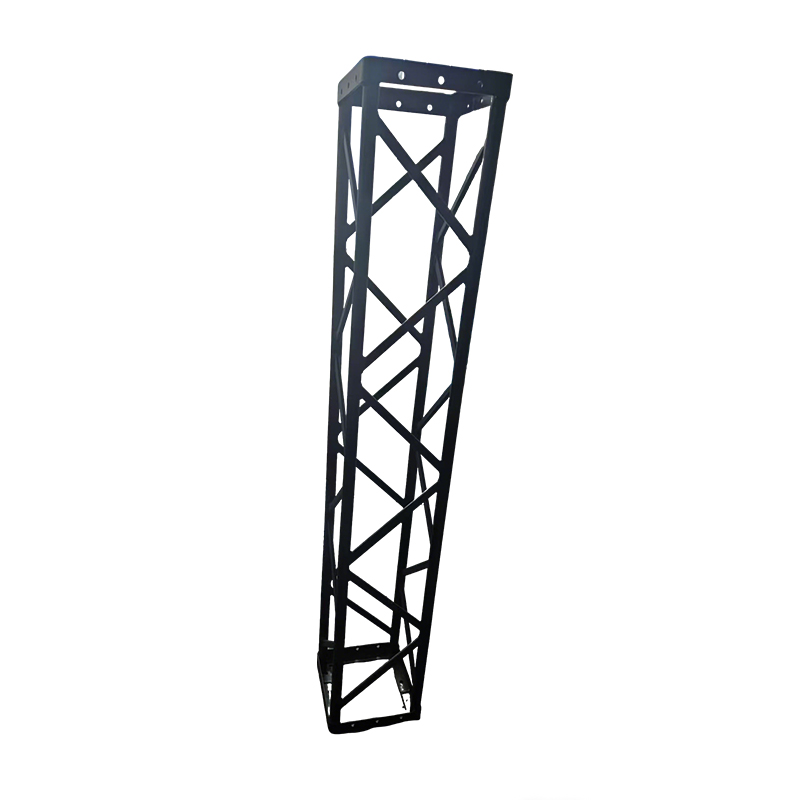

Durable Aluminum Lighting Truss
6 month ago
Product details
When selecting trusses, purchasers often face issues such as non-compliance, poor adaptability, low installation efficiency, and unstable load-bearing capacity. Especially in exhibition setup, concert rigging, and commercial building construction, products that do not comply with ANSI E1.2-2021 standards and AISC 360-22 specifications can easily lead to work stoppages and fines. Square Truss, as a core product, paired with compatible options such as Aluminum Square Truss and Triangle Lighting Truss, can solve the above problems. The entire process meets fire safety requirements and various construction standards, combining lightness and durability, helping purchasers reduce costs and improve project execution efficiency.
Product Core Parameters
The core material is 6061-T6 aluminum alloy, which has undergone rigorous strength testing and anti-corrosion treatment, adapting to various climatic environments. Whether it is the load-bearing requirements in snowy northern regions or the corrosion resistance needs in humid southern areas, it consistently meets standards. The main specifications include three commonly used sizes: 12ft, 24ft, and 36ft, which can be flexibly spliced and extended to meet span requirements for different scenarios. The connection method uses 3/8"-A307 standard bolts, conforming to the general specifications for stage construction and building construction in the United States, requiring no additional tools and directly compatible with existing local installation equipment.
Specific parameter details are as follows:
Material purity ≥99.8%,
Tensile strength ≥310MPa,
Yield strength ≥276MPa,
Weight per meter controlled between 8.5kg and 12kg,
Balancing lightness and load-bearing capacity;
Maximum deflection ≤ span (inches)/240, complying with ANSI E1.2-2021 entertainment industry aluminum truss standards. Among them, the 12ft Square Truss has a maximum uniform distributed load of 3252lbs and a maximum center point load of 1627lbs; the 24ft specification has a maximum uniform distributed load of 1272lbs, meeting the load-bearing requirements of large events and commercial buildings. The surface is treated with anodizing, with a corrosion resistance rating meeting ASTM B117 standards, allowing long-term use in harsh outdoor environments, with a service life of over 15 years, far exceeding the industry average of 8 years.
Scenario Adaptation
Our products provide customized adaptation solutions, highlighting advantages with quantitative data, covering three core scenarios. The first is exhibition builders. Exhibitions generally have short setup cycles (only 2-3 days), high union labor costs, and strict compliance requirements. Our Portable Outdoor Event Truss, paired with Square Truss, uses a modular design. A single truss set requires only 2 people and 30 minutes to install, improving efficiency by 60% compared to traditional trusses, while requiring no additional professional installation teams, directly adapting to local union construction processes, helping purchasers save over 30% on labor costs. All products are pre-fabricated and quality-inspected locally to avoid design and implementation disconnections caused by cross-border transportation.
The second scenario is event planning companies. Concerts, music festivals, and other entertainment events have strong demand, requiring high lightness, stability, and lighting compatibility from trusses. The Triangle Lighting Truss and Square Aluminum Truss combination can flexibly build lighting supports, with each meter carrying 80kg of lighting equipment, far exceeding the industry standard of 50kg/m, and weighing 40% less than traditional steel trusses, facilitating transportation and on-site debugging, meeting the mobile setup needs of touring concerts. Similar truss combinations have been used to achieve flexible switching of lighting effects. The Heavy Duty Roof Truss System, paired with Square Truss, can achieve a maximum unsupported span of 36ft, with a load-bearing capacity of 1500lbs/㎡, flexibly adapting to different construction standards without requiring additional customization, reducing procurement costs.
Providing customized Square Truss, Aluminum Square Truss, and Triangle Bolt Stage Truss combination solutions, all products are OSHA certified, adapting to local union construction processes and venue fire safety requirements. Addressing the pain point of short setup cycles, modular splicing designs and 24-hour local technical support are provided to assist with rapid installation.
