Product details

YZPST-2MBI200XAA-120-50 （YZPST-200B120F23）

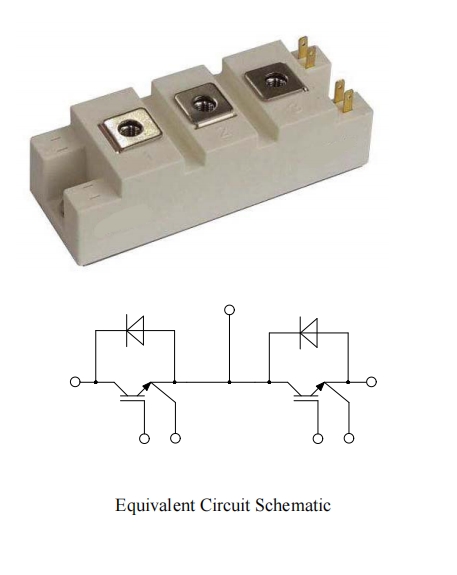

IGBT Power Module

Applications

Inverter for motor drive

AC and DC servo drive amplifier

UPS (Uninterruptible Power Supplies)

Soft switching welding machine

Features

Low Vce(sat) with Trench Field-stop technology

Vce(sat) with positive temperature coefficient

Including fast & soft recovery anti-parallel FWD

High short circuit capability(10us)

Low inductance module structure

Maximum junction temperature 175℃

Absolute Maximum Ratings

Parameter	Symbol	Conditions	Value	Unit
Collector-Emitter Voltage	VCES	VGE=0V, IC =1mA, Tvj=25℃	1200	V
Continuous Collector Current	IC	Tc=100℃	200	A
Peak Collector Current	ICRM	tp=1ms	400	A
Gate-Emitter Voltage	VGES	Tvj=25℃	±20	V
Total Power Dissipation (IGBT-inverter)	Ptot	Tc=25℃ Tvjmax=175℃	695	W

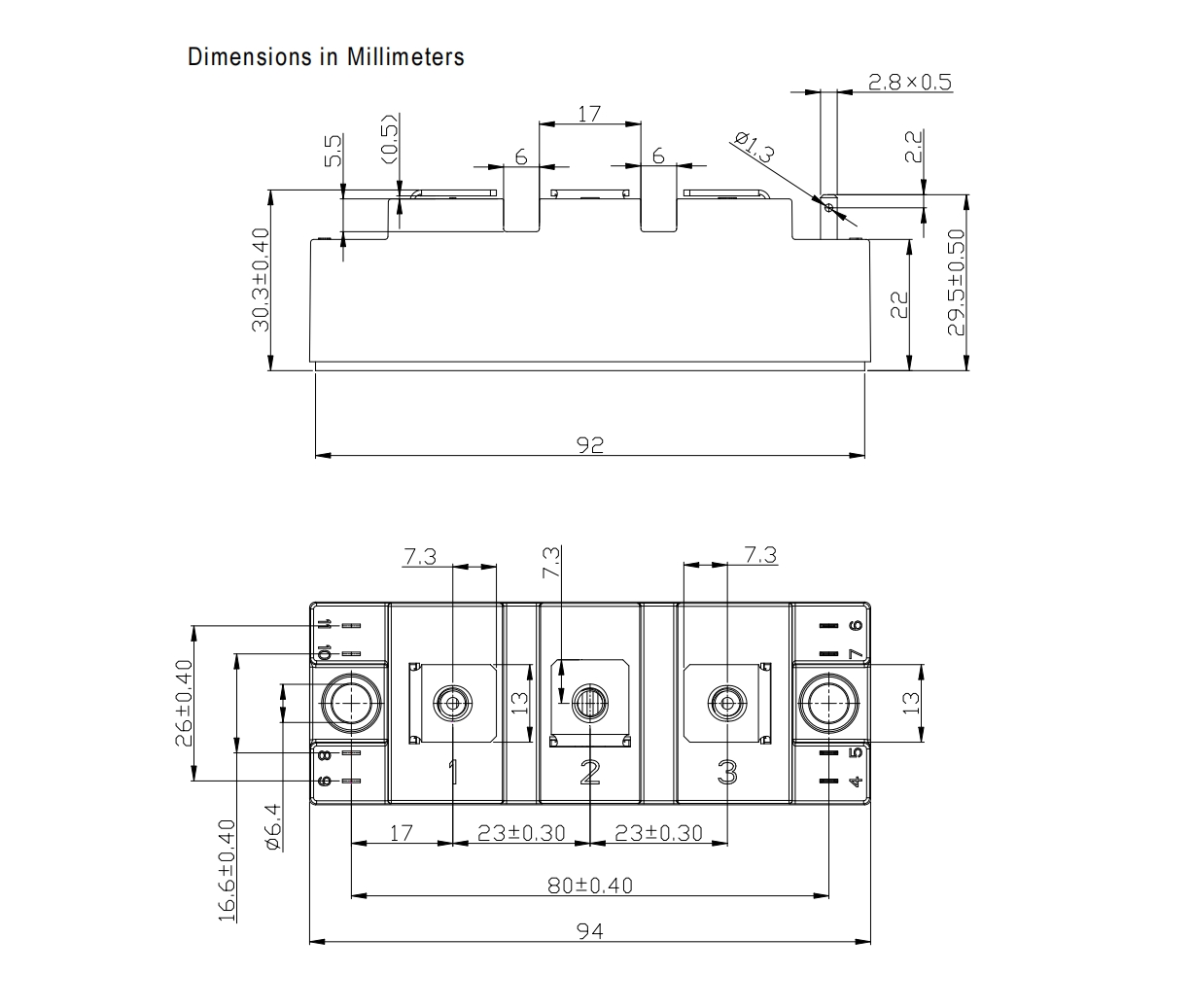

Package Dimensions
