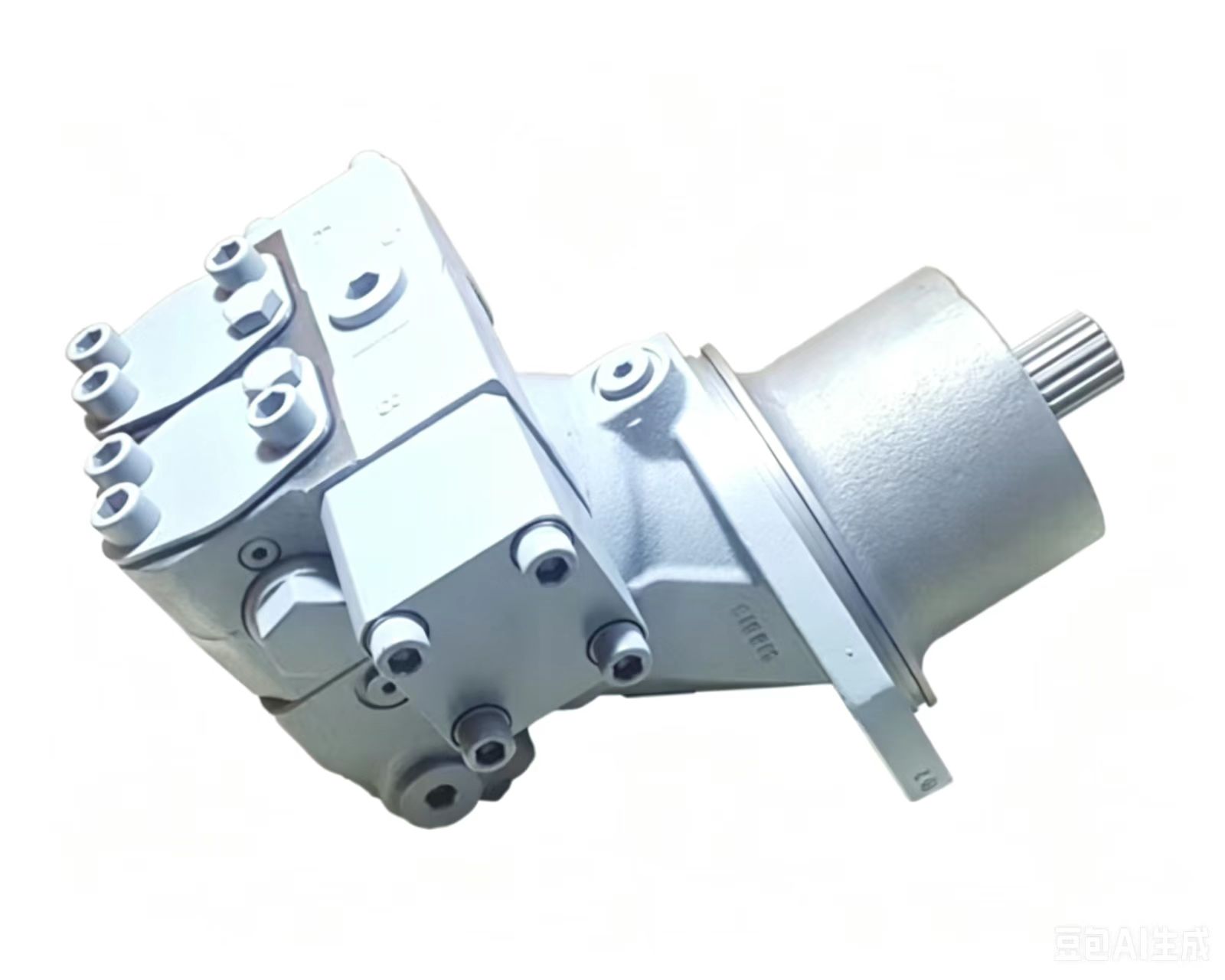

A2FE Series Fixed Displacement Motor
The A2FE Series Fixed Displacement Motor, produced by Bosch Rexroth, is a high-performance axial-piston fixed displacement hydraulic motor widely used in various industrial and mobile equipment applications. Below is a detailed overview:
I. Technical Features
1. Axial-Piston Design:
• The A2FE series employs an axial-piston conical rotor group with a tilted-axis design, offering a compact structure and high efficiency.
• The tilted-axis design ensures stable operation under high pressure and delivers substantial output torque.
2. Fixed Displacement:
• With a constant displacement, the output speed depends on the pump's flow rate, while the output torque increases with the pressure differential between the high-pressure and low-pressure sides.
• Suitable for applications requiring constant rotational speed and torque.
3. High-Pressure Performance:
• Rated pressure up to 35 MPa (some models up to 40 MPa), with peak pressure reaching 400 MPa (some models up to 450 MPa).
• Capable of stable operation in high-pressure environments, meeting the demands of heavy-duty equipment.
4. Compact Structure:
• The mounting flange is designed in the middle of the housing, allowing the motor to be almost entirely integrated into mechanical gearboxes, providing a highly compact component.
• Easy to assemble, requiring only "insertion" into the mechanical gearbox without considering mounting tolerances.
5. Long-Life Bearings:
• Utilizes a robust rolling bearing system to ensure long service life and high reliability.
• Suitable for high-load and continuous operation applications.
6. Multiple Displacement Options:
• Available in various displacement models, including 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180, 250, and 355 cm³, to meet different application requirements.
II. Application Areas
The A2FE series fixed displacement motors are widely used in the following fields:
1. Construction Machinery:
• Such as the slewing and traveling systems of excavators, loaders, and cranes.
2. Industrial Equipment:
• Including hydraulic systems for metallurgical machinery, plastic machinery, and forging presses.
3. Marine Machinery:
• Such as anchor winches, capstans, and cargo winches on ships.
4. Mobile Equipment:
• Including hydraulic transmission systems for crawler drive gearboxes and agricultural machinery.
III. Main Models and Parameters
【表格】
Model Displacement (cm³) Rated Pressure (MPa) Peak Pressure (MPa)
A2FE28 28 35 (some 40) 400 (some 450)
A2FE32 32 35 (some 40) 400 (some 450)
A2FE45 45 35 (some 40) 400 (some 450)
A2FE56 56 35 (some 40) 400 (some 450)
A2FE63 63 35 (some 40) 400 (some 450)
A2FE80 80 35 (some 40) 400 (some 450)
A2FE90 90 35 (some 40) 400 (some 450)
A2FE107 107 35 (some 40) 400 (some 450)
A2FE125 125 35 (some 40) 400 (some 450)
A2FE160 160 35 (some 40) 400 (some 450)
A2FE180 180 35 (some 40) 400 (some 450)
A2FE250 250 35 400
A2FE355 355 35 400
IV. Advantages and Characteristics
1. High Efficiency and Energy Saving:
• Low peripheral speed and high-efficiency design minimize energy loss.
2. Easy Maintenance:
• Compact structure facilitates easy installation and disassembly, reducing maintenance costs.
3. High Interchangeability:
• Fully interchangeable with original Rexroth motors, enabling convenient upgrades and replacements.
4. Low Noise:
• Optimized design reduces noise and vibration during operation.
5. Standardized Interfaces:
• Adopts ISO-standard mounting flanges, shaft dimensions, and port sizes for easy integration into existing systems.
