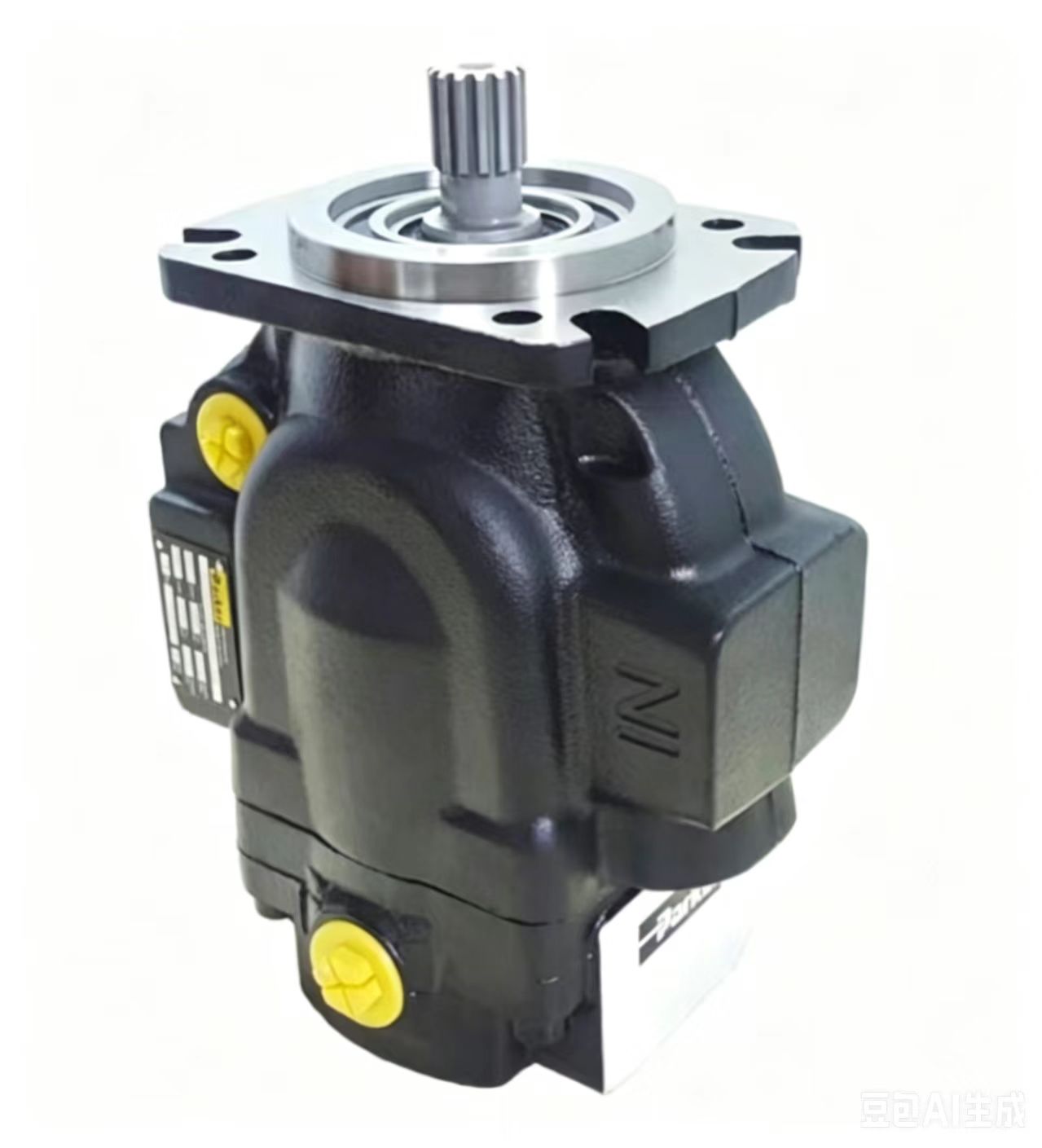

Parker P3 Series Hydraulic Pump
TheParker P3 Series Hydraulic Pumpis a high-performance axial piston variable displacement pump specifically designed by Parker Hannifin for mobile machinery and mobile hydraulic systems. Below is a detailed introduction to its key features:
------
I. Key Features
1. High-Pressure Performance:
• Rated Pressure: 320 bar (some models up to 350 bar).
• Peak Pressure: 370 bar.
• Capable of stable operation under high-pressure conditions, meeting the demands of heavy-duty construction machinery.
2. Compact Design:
• Small size and lightweight, suitable for installation in space-constrained mobile equipment.
• Flat pump body design eliminates the need for offset gearboxes, facilitating installation in narrow spaces.
3. Low Noise and Vibration:
• Unique pressure pulsation chamber design reduces outlet pressure fluctuations by up to 50%.
• Lowers noise levels by 5–8 dB, providing a quiet and efficient working environment.
4. High Self-Priming Capability:
• High self-priming speed, suitable for applications requiring self-priming and operation at high altitudes.
• The P3 series incorporates a built-in suction port pressurization device to enhance the pump's self-priming ability and operational efficiency.
5. Multiple Control Options:
• Offers load-sensing, pressure limiters, power control, and other control methods to meet diverse application requirements.
• Supports modular controllers for easy conversion and integration.
6. Easy Installation and Maintenance:
• Complies with SAE and ISO standards for mounting flanges and ports, facilitating integration with existing systems.
• Multiple housing drain port designs accommodate various installation orientations.
• Modular design simplifies troubleshooting and component replacement.
------
II. Applications
The Parker P3 Series Hydraulic Pump is widely used in the following fields:
1. Construction Machinery: Excavators, loaders, cranes, road rollers, etc.
2. Material Handling Equipment: Forklifts, stackers, conveying equipment, etc.
3. Agricultural Machinery: Harvesters, tractors, irrigation equipment, etc.
4. Marine Manufacturing: Propulsion systems, steering systems, etc.
5. Mining Equipment: Roadheaders, coal mining machines, transport equipment, etc.
6. Municipal and Vocational Equipment: Street sweepers, aerial work platforms, etc.
7. Defense and Military Vehicles: Armored vehicles, transport vehicles, etc.
------
III. Technical Specifications
• Displacement Range: 75–145 cm³/rev (The P3 series primarily offers 105 and 145 cc displacement options, with some models featuring 75 cc, depending on the model or application).
• Operating Speed: Varies by model, with maximum operating speeds ranging from 2,200 to 2,600 rpm.
• Weight: Ranges from 62 to 76 kg, depending on the model.
• Control Method: Pressure and flow control.
• Material: Cast iron.
• Operating Mode: Open circuit.
• Mounting Method: SAE splined shaft, SAE flange.
