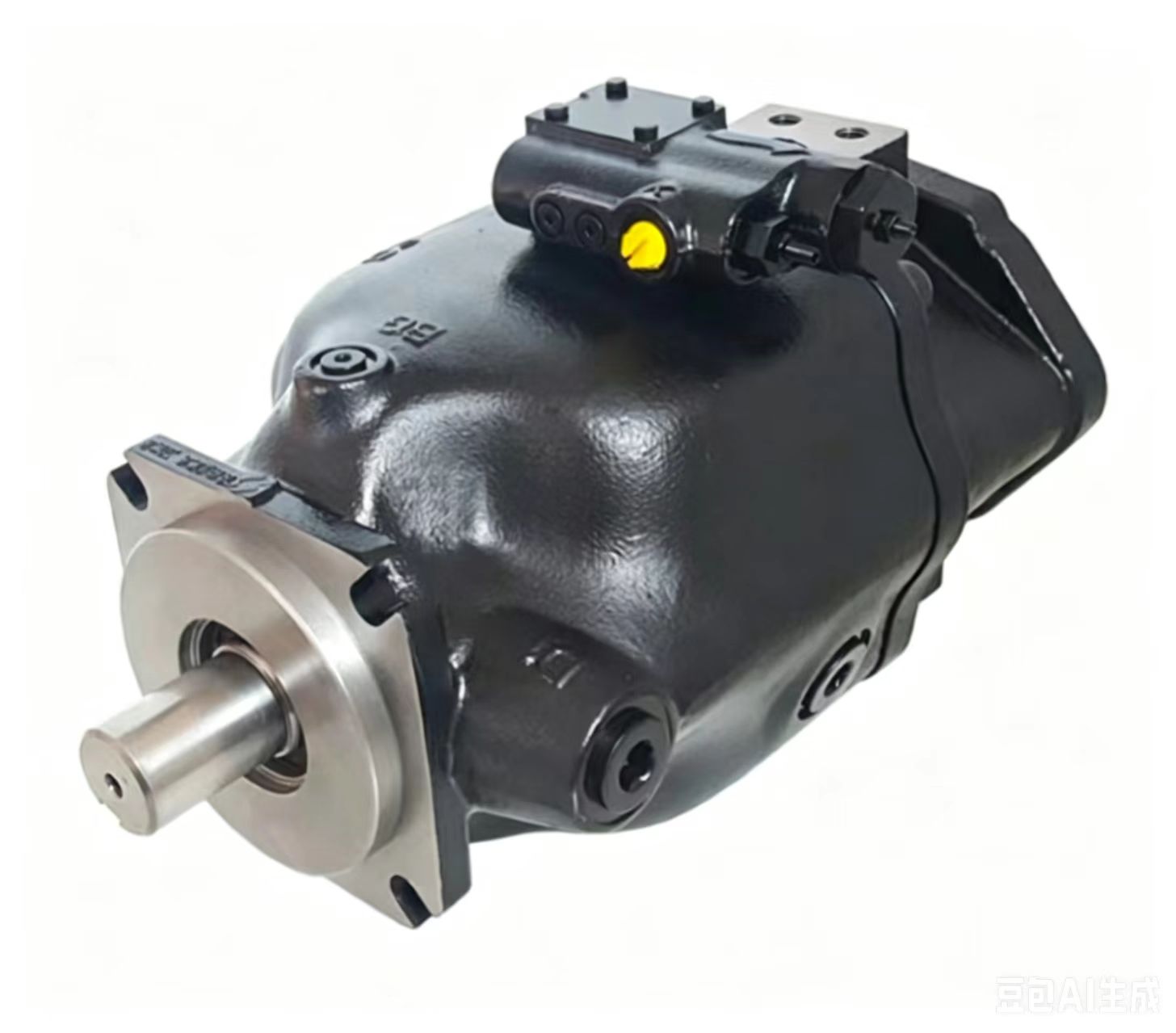

PARKER PD Series Hydraulic Pumps

I. Product Overview

• Type: Axial piston variable hydraulic pumps for open-circuit applications, designed for medium-pressure industrial use.

• Applications: The PD series low-noise pumps are suitable for industrial applications such as construction equipment, agricultural machinery, and material handling systems.

------

II. Key Features

1. High Efficiency and Reliability

• Compact overall structure with high power density.

• Utilizes elastic material seals without gaskets, minimizing external leakage.

• Long-life roller bearings with low friction and hydrostatically balanced swashplate saddle bearings ensure long-term stable operation.

2. Superior Control Performance

• Swashplate with bearing design for efficient and quiet control performance.

• Fast and stable compensator response ensures precise control of hydraulic systems.

• Multiple standard controller options with modular design for easy conversion, meeting diverse application requirements.

3. Convenient Installation and Maintenance

• Conforms to SAE and ISO standards for mounting flanges and ports, facilitating installation and maintenance.

• Multiple case drain ports suitable for various mounting orientations, such as horizontal or vertical axial installations.

• Optional maximum and minimum displacement limit adjustment functions for easy customization based on actual needs.

4. Energy Efficiency and Environmental Protection

• High operating efficiency with low power consumption, reducing heat generation and energy consumption.

• Adopts unique "ripple chamber" technology to minimize pressure pulsation, reduce noise, and enhance operational smoothness.

------

III. Technical Parameters

• Operating Pressure: Continuous working pressure of 280 bar (4,060 psi), with a peak pressure of up to 42 MPa.

• Displacement Range: Offers multiple displacement options, including 18, 28, 45, 60, 75, 100, and 140 cm³/rev, allowing adjustment of displacement to control flow and pressure in hydraulic systems.

• Speed Range: 600 – 1,800 rpm, adapting to speed requirements in various working scenarios.

• Fluid Viscosity: Industry-leading low-viscosity capability, compatible with a wide range of hydraulic fluids.

• Fluid Temperature: Case drain temperature not exceeding 110°C (230°F), ensuring safe system operation.

------

IV. Application Scenarios

• Industrial Equipment: Such as machine tools, plastic machinery, and metallurgical machinery, providing stable hydraulic power support.

• Construction Machinery: Such as excavators and loaders, meeting hydraulic demands under harsh working conditions.

• Agricultural Machinery: Such as tractors and harvesters, improving agricultural production efficiency.

• Material Handling Systems: Such as forklifts and cranes, enabling fast and accurate material handling.
