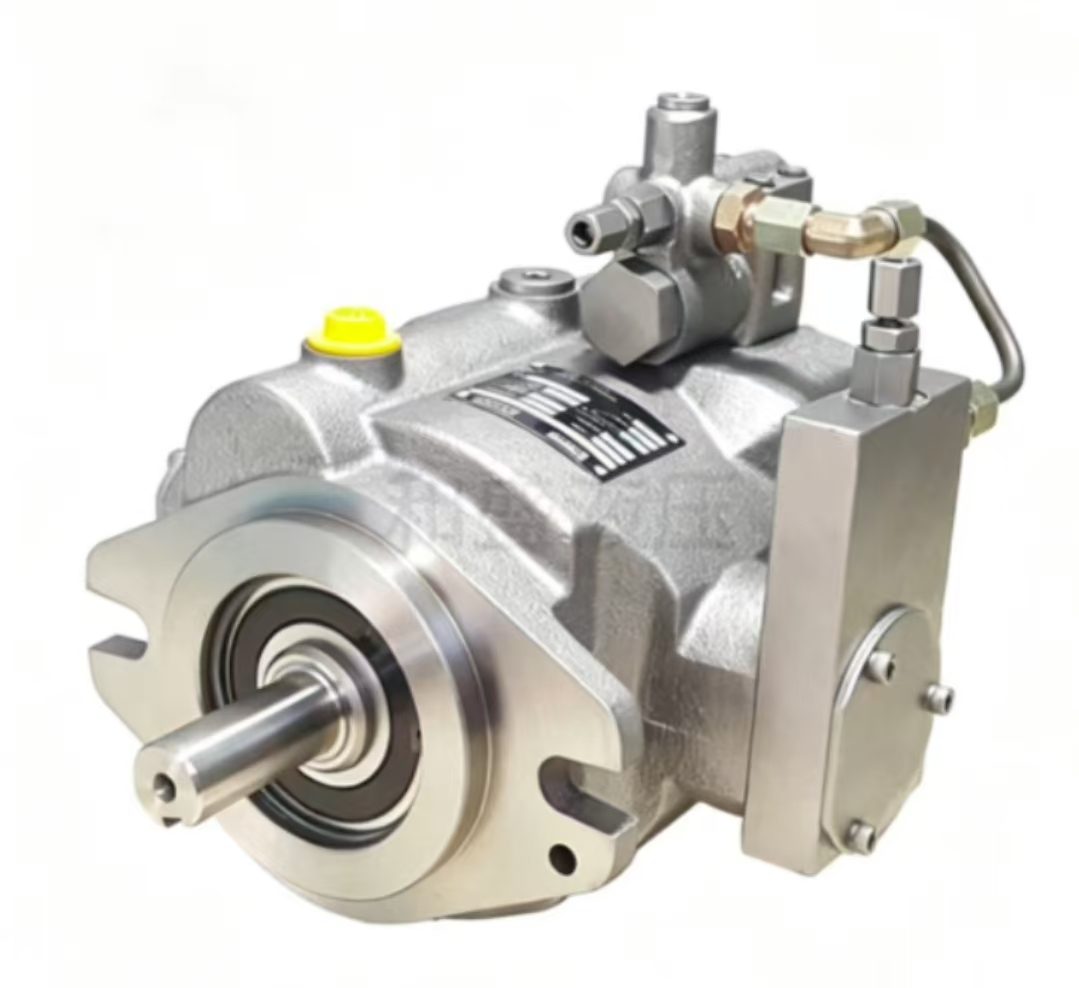

Parker PVP Series Hydraulic Pumps
The Parker PVP Series Hydraulic Pumps are high-performance swashplate-type axial piston variable displacement pumps designed by Parker Hannifin specifically for open-circuit systems. They are widely used in industrial equipment and mobile machinery applications. Below is a detailed introduction to this series of hydraulic pumps:
------
I. Key Features
1. Wide Range of Displacement and Pressure:
• The maximum displacement ranges from 16 to 140 ml/rev, meeting the flow requirements of various applications.
• Rated operating pressure is 250 bar (with some models reaching up to 3600 psi), suitable for medium-pressure application environments. Some models can achieve a maximum pressure of 250 bar (3600 psi).
2. Speed and Temperature Adaptability:
• Operating speeds can reach up to 500 revolutions per minute (with some models offering continuous speeds of 2400 rpm and peak speeds of 2800 rpm), fully satisfying the demands of high-efficiency operations.
• Stable operation within a temperature range of -40 to 122°F (-40 to 50°C), demonstrating excellent temperature adaptability.
3. Structural and Material Advantages:
• Adopts a through-shaft design, allowing for standalone use or combination with multiple other pumps to achieve complex hydraulic system configurations.
• Constructed from high-strength cast steel, offering excellent durability and strength. This not only extends the equipment's service life but also effectively reduces operating noise, improving the working environment.
• Supports installation via metric or SAE standards, with shaft ends available in SAE spline and metric or SAE flat key options to accommodate different working conditions. The pump body features SAE flange ports on the side, further enhancing installation and maintenance convenience.
4. Diverse Control Methods:
• Offers various control options, including standard pressure control, power control, remote pressure control, and load-sensing pressure control, facilitating adjustments according to actual needs.
5. High Efficiency and Energy Saving:
• Features high volumetric and mechanical efficiencies, reducing energy consumption and enhancing production efficiency.
------
II. Application Areas
The Parker PVP Series Hydraulic Pumps are widely used in various fields requiring efficient, reliable, and variable-capacity piston pumps, including but not limited to:
1. Industrial Hydraulics: Such as injection molding machines, machine tools, hydraulic power units, and metallurgical equipment.
2. Construction Machinery: Such as mini excavators, loaders, and forklifts.
3. Marine Industry: Marine hydraulic systems demand extremely high performance, especially in complex and harsh environments. The Parker PVP Series Hydraulic Pumps are widely used in critical components such as steering gear systems and deck machinery on ships, thanks to their outstanding durability and reliability.
4. Mining Machinery: In mining operations, hydraulic excavators, mining trucks, and other equipment require powerful power support. The Parker PVP Series Hydraulic Pumps play a core role in the hydraulic systems of these equipment, ensuring stable operation and efficient operations.
5. Petrochemical Industry: In the petroleum and chemical fields, various pressure vessels and reactors require precise pressure control and flow regulation. The Parker PVP Series Hydraulic Pumps are widely used in the hydraulic systems of these equipment due to their precise control performance and long service life.
6. Agricultural Machinery: In agricultural machinery, such as tractors and harvesters, hydraulic systems are essential for ensuring efficient operations. The Parker PVP Series Hydraulic Pumps are also widely used in the hydraulic systems of these equipment due to their good durability and reliability.
------
III. Model Examples
The Parker PVP Series Hydraulic Pumps offer a variety of model options to meet different customer needs. Common models include PVP016, PVP023, PVP033, PVP041, PVP048, PVP060, PVP076, PVP100, and PVP140.
The PVP33 hydraulic piston pumps are designed to provide long life while operating with hydraulic Oil. It is the power element of the hydraulic system. It is driven by an engine or electric motor, sucking oil from the hydraulic oil tank, forming pressure oil and discharging it to the actuator. Hydraulic pumps are divided into gear pumps, plunger pumps, vane pumps and screw pumps according to their structure.
