Kawasaki K3VL Hydrualic piston pump
3 month ago
Product details
K3V Series
K3V63BDT K3V63DT K3V63DTP K3V63S
K3V112BDT K3V112DP K3V112DT K3V112DTP K3V112S
K3V140DT K3V140DTP K3V140S
K3V180DT K3V180DTH K3V180DTP
K3V280DT K3V280DTH K3V280S K3V280SG K3V280SH
K5V Series
K5V80DT K5V80DTP K5V80S K5V112DP
K5V140DP K5V140DT K5V140DTP K5V140S
K5V160DPH K5V200DP K5V200DPH K5V200DT
K5V200DTH K5V200DTP K5V200S K5V200SH
K3VG Series
K3VG112 K3VG180 K3VG180DT K3VG280 K3VG280DT K3VG63
K3VL Series
K3VL112 K3VL140 K3VL200 K3VL45 K3VL60 K3V
K3V63BDT K3V63DT K3V63DTP K3V63S
K3V112BDT K3V112DP K3V112DT K3V112DTP K3V112S
K3V140DT K3V140DTP K3V140S
K3V180DT K3V180DTH K3V180DTP
K3V280DT K3V280DTH K3V280S K3V280SG K3V280SH
K5V Series
K5V80DT K5V80DTP K5V80S K5V112DP
K5V140DP K5V140DT K5V140DTP K5V140S
K5V160DPH K5V200DP K5V200DPH K5V200DT
K5V200DTH K5V200DTP K5V200S K5V200SH
K3VG Series
K3VG112 K3VG180 K3VG180DT K3VG280 K3VG280DT K3VG63
K3VL Series
K3VL112 K3VL140 K3VL200 K3VL45 K3VL60 K3V

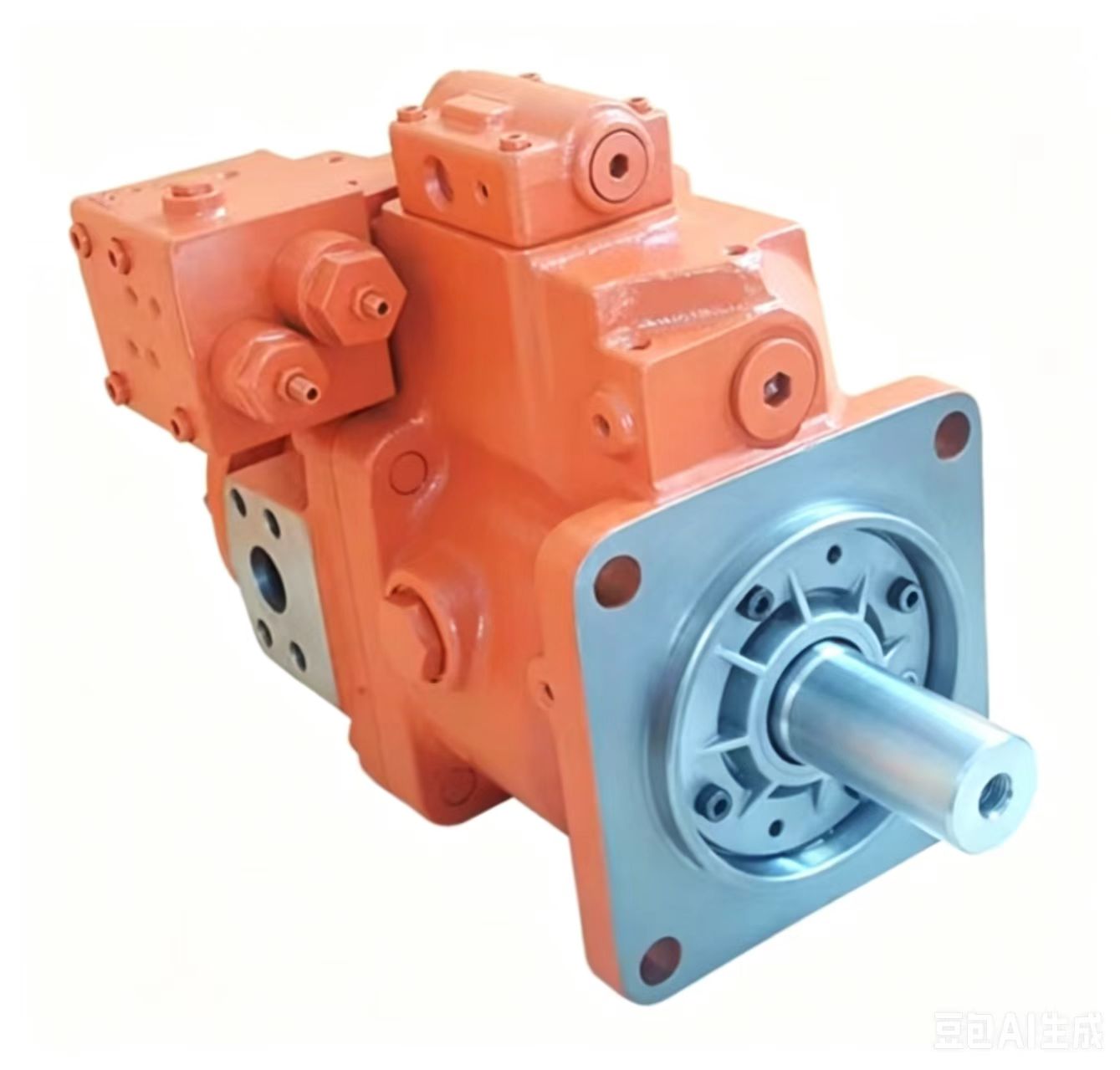

The Kawasaki K3VL series hydraulic piston pump is a swashplate-type axial piston pump designed to meet the application requirements of medium- and high-pressure variable pumps in both mobile and industrial sectors. Below is a detailed introduction to this series of pumps:
I. Product Features
1. High Pump Efficiency: Achieved through optimized design, enabling efficient hydraulic conversion and reduced energy loss.
2. Low Noise Operation: Utilizes advanced low-noise technology to minimize noise levels during operation, enhancing the comfort of the operating environment.
3. Multiple Control Modes: Supports various control methods such as load sensing, torque limiting, and electronic displacement control, allowing flexible adjustment of pump performance based on actual needs.
4. Compact Structure: The piston motor section, mechanical brake section, and various auxiliary valve sections are reasonably arranged, resulting in an ultra-compact design that saves installation space.
II. Models and Specifications
The K3VL series offers a range of models with displacement volumes ranging from 28 cm³ to 200 cm³. Specific models and their specifications are as follows:
【表格】
Model Displacement (cm³) Rated Pressure (MPa) Peak Pressure (MPa) Self-Priming Speed (min⁻¹) Mass (kg)
K3VL28 28 32 35 2600 20
K3VL45 45 32 35 2700 25
K3VL80 80 32 35 2400 35
K3VL112 112 32 35 2200 65
K3VL140 140 32 35 2200 65
K3VL200 200 32 35 1900 95
K3VL200H*1 200 32 35 2200 130
*1: With impeller pump
III. Application Fields
The K3VL series pumps are widely used in various scenarios requiring medium- and high-pressure hydraulic power, including but not limited to:
1. Construction Machinery: Such as excavators, loaders, and cranes, providing stable and reliable hydraulic power for these equipment.
2. Industrial Equipment: In machine tools, plastic processing machinery, metallurgical equipment, and other fields, the K3VL series pumps also play an important role.
3. Agricultural Machinery: Providing hydraulic power for tractors, harvesters, and other agricultural machinery to enhance operational efficiency.
IV. Technical Advantages
1. Load Sensing Control: Through built-in pressure compensators, load-independent flow control is achieved, ensuring stable operating speeds for machines under different loads.
2. Torque Limiting Function: When the pressure in the pump output circuit becomes excessively high, the main relief valve on the main control valve will relieve pressure, preventing overload of the pump circuit and protecting the pump and system safety.
3. Electronic Displacement Control: Supports electronic displacement control, allowing precise adjustment of pump displacement based on actual needs, improving system flexibility and efficiency.
V. Selection and Usage Recommendations
1. Select the Appropriate Model Based on Needs: Choose the suitable K3VL series pump model according to the required flow rate and pressure.
2. Pay Attention to Installation and Commissioning: During installation and commissioning, strictly follow the product manual to ensure normal pump operation.
3. Regular Maintenance and Upkeep: Regularly maintain and upkeep the pump, checking oil performance, cleaning oil filters, etc., to extend the pump's service life.
