HD DB78P male to HD DB78P female cables

3 month ago

8 0 

2 year

Product details

CHAMAX can customize various Automation equipment wire harness, Industrial machine wire harness, Custom automation equipment cables, Machine control cables ...

The HD DB78P male-to-female cable is engineered to meet the demanding requirements of high-density signal transmission in industrial environments. At its core lies a 78-pin high-density D-SUB connector, enabling simultaneous multi-channel signal transfer within a compact form factor.

For enhanced reliability, the cable incorporates a dual-layer shielding structure combining aluminum foil and braided copper, effectively isolating electromagnetic interference (EMI) and radio frequency interference (RFI). Its thickened PVC sheath provides robust protection against mechanical stress and chemical corrosion, while select high-end models offer IP65-rated waterproof and dustproof capabilities, maintaining stable operation across extreme temperatures from -40°C to +85°C. Customizable lengths ranging from 0.5 to 30 meters cater to diverse installation scenarios, from tight machinery enclosures to extended factory floor layouts.

Versatile Applications: Powering Efficiency Across Industries

In industrial automation, the HD DB78P cable serves as the "neural network" connecting PLC controllers, servo drives, and sensors. It synchronously transmits control commands, status data, and feedback signals, ensuring precise coordination of production lines and enabling seamless operation of robotic arms and precision machining tools.

Within communication infrastructure, this cable optimizes space utilization in data centers and base stations by enabling multi-channel signal transmission through a single line, increasing equipment deployment density while maintaining signal integrity in complex electromagnetic environments.

1. Cable: #28 x 25P + double-shielding, UL2464, black.

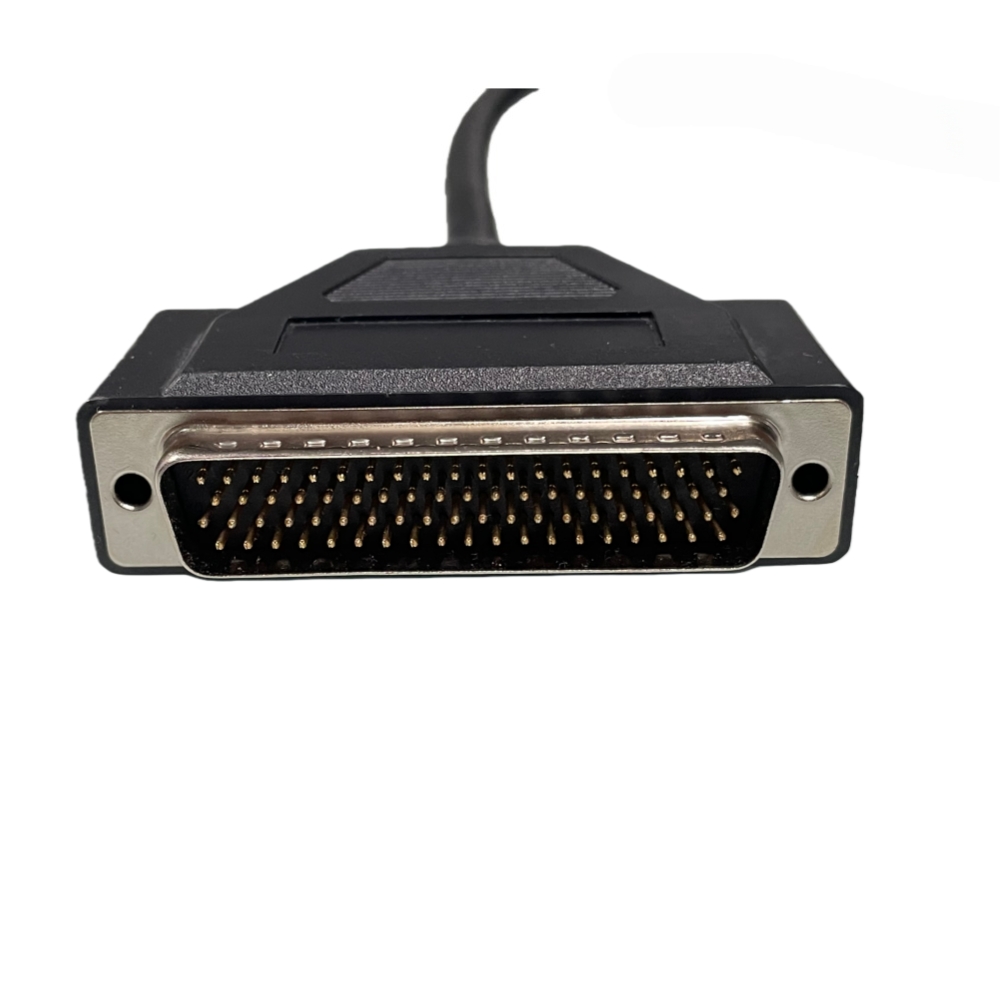

2. HD D-SUB 78P male connector: Contact: gold flash, Insulation: UL94V-0.

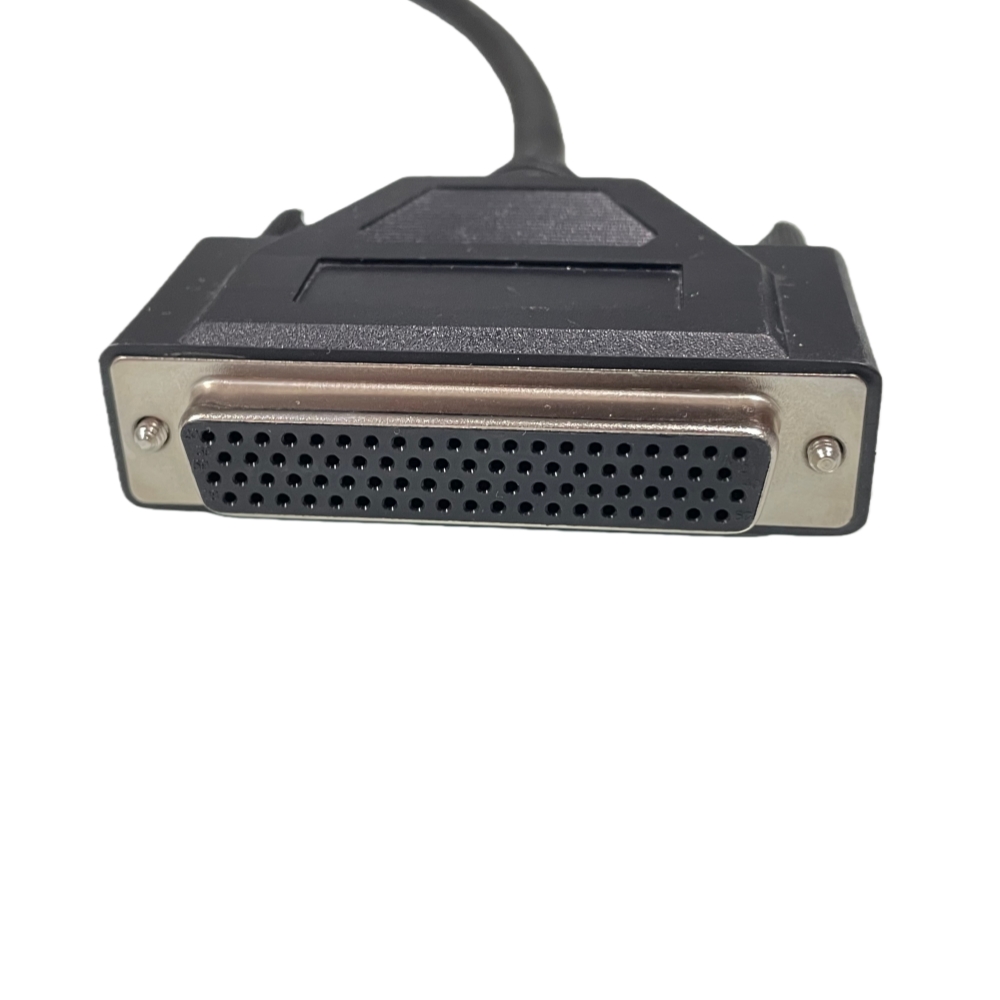

3. HD D-SUB 78P female connector: Contact: gold flash, Insulation: UL94V-0.

4. Outer molded: PVC UL94V-0, black.

UL certified cables

RoHS, REACH compliant
