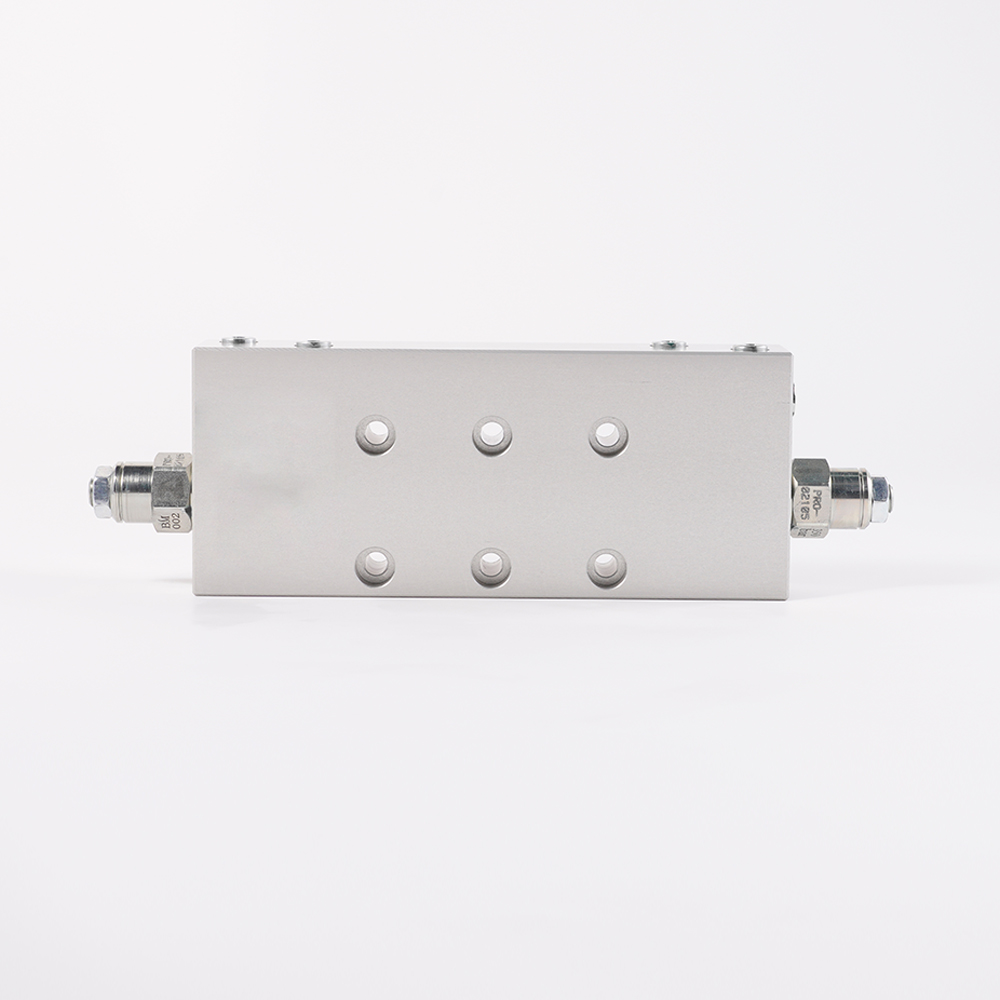

FLOATING COUNTERBALANCE Valve
AFLOATING COUNTERBALANCE Valveis a critical control component used in hydraulic systems, primarily designed to balance loads, prevent uncontrolled load descent, and ensure stable and safe system operation. Below is a detailed introduction to the floating counterbalance valve:
I. Working Principle
The floating counterbalance valve typically consists of two main parts: a check valve and a relief valve:
1. Check Valve Function: Allows hydraulic fluid to freely flow into the actuator (such as a hydraulic cylinder), pushing the load upward and preventing reverse movement (i.e., descent) of the load due to gravity.
2. Relief Valve Function: When load descent is required, the relief valve is opened by external pilot pressure, allowing hydraulic fluid to flow back to the tank in a controlled manner, thereby precisely controlling the descent speed of the load.
II. Structural Features
1. Floating Design: The valve spool can float within the valve body, automatically adjusting its position based on changes in system pressure to balance the load.
2. Pilot Control: The opening and closing of the relief valve are controlled by external pilot pressure, enabling remote operation and precise control.
3. High Reliability: Utilizes hard-seated seals and wear-resistant materials to ensure excellent sealing performance even after prolonged use.
4. Multiple Specifications: Available in various flow and pressure ratings to meet the needs of different hydraulic systems.
III. Application Areas
Floating counterbalance valves are widely used in hydraulic systems requiring precise control over load lifting and lowering, such as:
1. Elevators: Ensure smooth operation during ascent and descent, preventing safety incidents caused by uncontrolled load movement.
2. Cranes: In the boom and hook systems of cranes, floating counterbalance valves balance loads and prevent rapid descent of lifted objects due to gravity.
3. Construction Machinery: Such as excavators and loaders, where floating counterbalance valves balance the loads on hydraulic motors in slewing and traveling systems, improving operational stability and safety.
4. Industrial Automation Equipment: Play a crucial role in automated production lines and assembly lines requiring precise control over load positioning.
IV. Technical Parameters and Selection
When selecting a floating counterbalance valve, consider the following technical parameters:
1. Rated Flow: Choose an appropriate flow rating based on the requirements of the hydraulic system.
2. Rated Pressure: Ensure the valve's rated pressure exceeds the maximum operating pressure of the system.
3. Pilot Ratio: Select an appropriate pilot ratio based on control requirements to achieve precise control.
4. Seal Material: Choose a suitable seal material based on the type and temperature range of the hydraulic fluid to ensure sealing performance.
V. Installation and Maintenance
1. Installation:
• The floating counterbalance valve should be installed in the return line of the hydraulic cylinder or hydraulic motor to ensure smooth load descent.
• Pay attention to the flow direction of the valve during installation to ensure proper functioning of the check valve and relief valve.
• Tighten connecting bolts to the specified torque to prevent leakage.
2. Maintenance:
• Regularly inspect the valve's sealing performance and replace seals promptly if leakage is detected.
• Clean impurities and dirt from inside the valve to maintain cleanliness and unobstructed flow.
• Check the tightness of pilot control lines to prevent control failure caused by loose connections.
