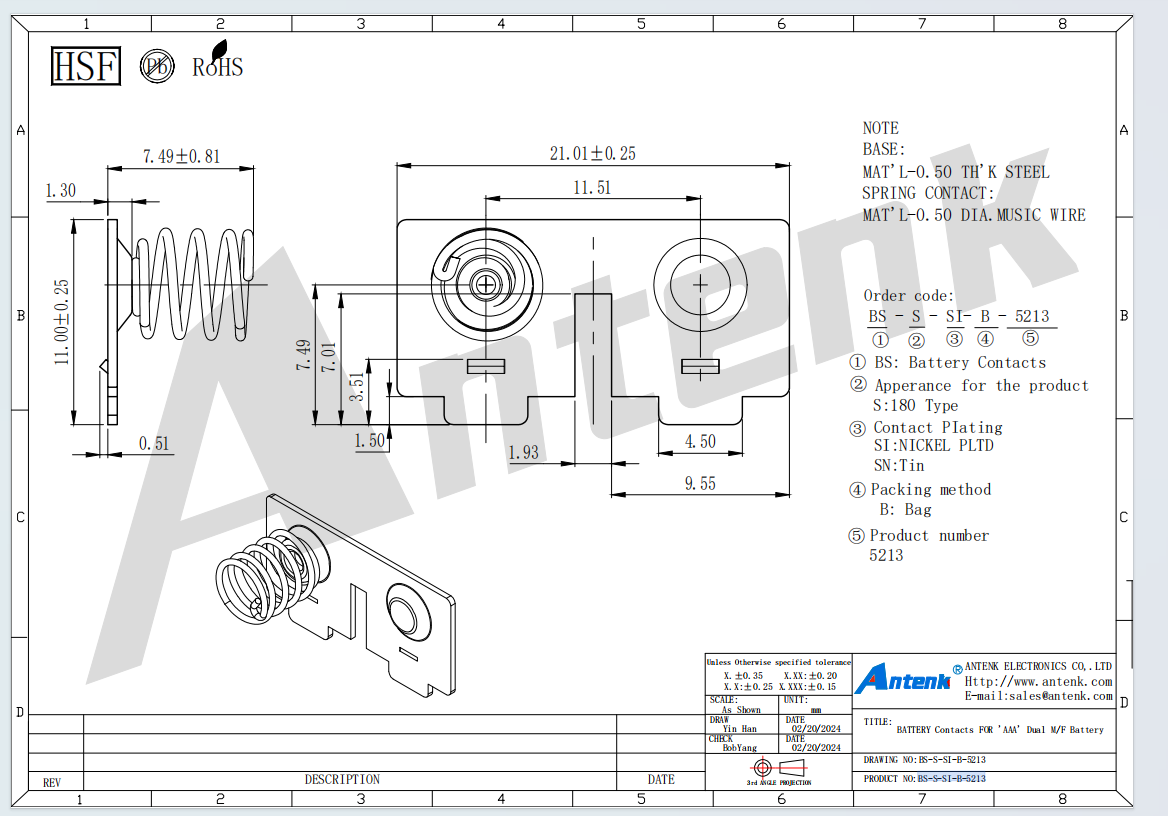

BATTERY Contacts FOR'AAA' Dual M/F Battery

Battery Contacts for 'AAA' Dual M/F Battery are precision-engineered electromechanical components designed to establish a reliable electrical connection between standard AAA batteries (10.5 mm diameter × 44.5 mm height) and the host device. The term "Dual M/F" refers to the inclusion of both Male and Female contact interfaces within a single battery contact set. Typically, the Female contact serves as the positive terminal — a flat or slightly recessed metal tab that securely receives the protruding positive nub of the AAA battery. The Male contact functions as the negative terminal, often implemented as a coiled spring or a raised metal button that presses firmly against the flat negative end of the battery. This dual-configuration design ensures correct polarity alignment, prevents accidental reverse insertion, and provides stable mechanical retention under conditions of vibration or shock. These contacts are commonly manufactured from phosphor bronze, beryllium copper, or stainless steel, with nickel or gold plating applied to minimize contact resistance (typically below 50 mΩ) and resist oxidation. The spring force is carefully optimized for AAA cells — generally between 50 and 120 grams — to balance secure electrical contact and ease of battery replacement.



The primary functions of AAA Dual M/F battery contacts are threefold: electrical conductivity, mechanical retention, and polarity guidance. By maintaining low and stable contact resistance, they ensure efficient power transfer from the battery to the device circuitry with minimal voltage drop and heat generation. The spring-loaded Male contact absorbs dimensional tolerances of both the battery and the battery compartment, maintaining consistent pressure even after thousands of insertion cycles. The Female contact, with its recessed or flat geometry, naturally guides the battery's positive terminal into the correct position. Common applications include compact battery holders, medical devices such as blood glucose meters and digital thermometers, children's electronic toys, TV remote controls, computer peripherals, and DIY electronics projects. In industrial settings, these contacts are also found in portable testing equipment, wireless sensors, and backup memory power systems. Their proven reliability, low cost, and ease of assembly make them a preferred choice for high-volume consumer electronics manufacturing.



When selecting battery contacts for AAA Dual M/F applications, engineers should evaluate several critical parameters: base material (phosphor bronze for cost-effectiveness, beryllium copper for high cycle life), plating type (nickel for standard environments, gold for high-reliability or corrosion-prone applications), spring force characteristics, operating temperature range (typically -20°C to +85°C, with specialized variants up to +125°C), and mounting style (through-hole for manual assembly, SMT for automated PCB assembly). Manufacturing involves high-speed progressive stamping from metal coils, followed by selective plating, forming, and quality inspections. Quality tests include contact resistance measurement, salt spray corrosion testing, mechanical endurance verification (often 5,000 to 10,000 cycles), and insertion/withdrawal force testing. As portable and wearable electronic devices continue to miniaturize, the demand for compact, reliable AAA battery contacts remains strong. Furthermore, the growing emphasis on recyclability and RoHS compliance has driven the industry toward lead-free plating and environmentally friendly materials. With their simple yet effective dual M/F design, AAA battery contacts continue to serve as a fundamental building block in countless battery-powered products worldwide.
