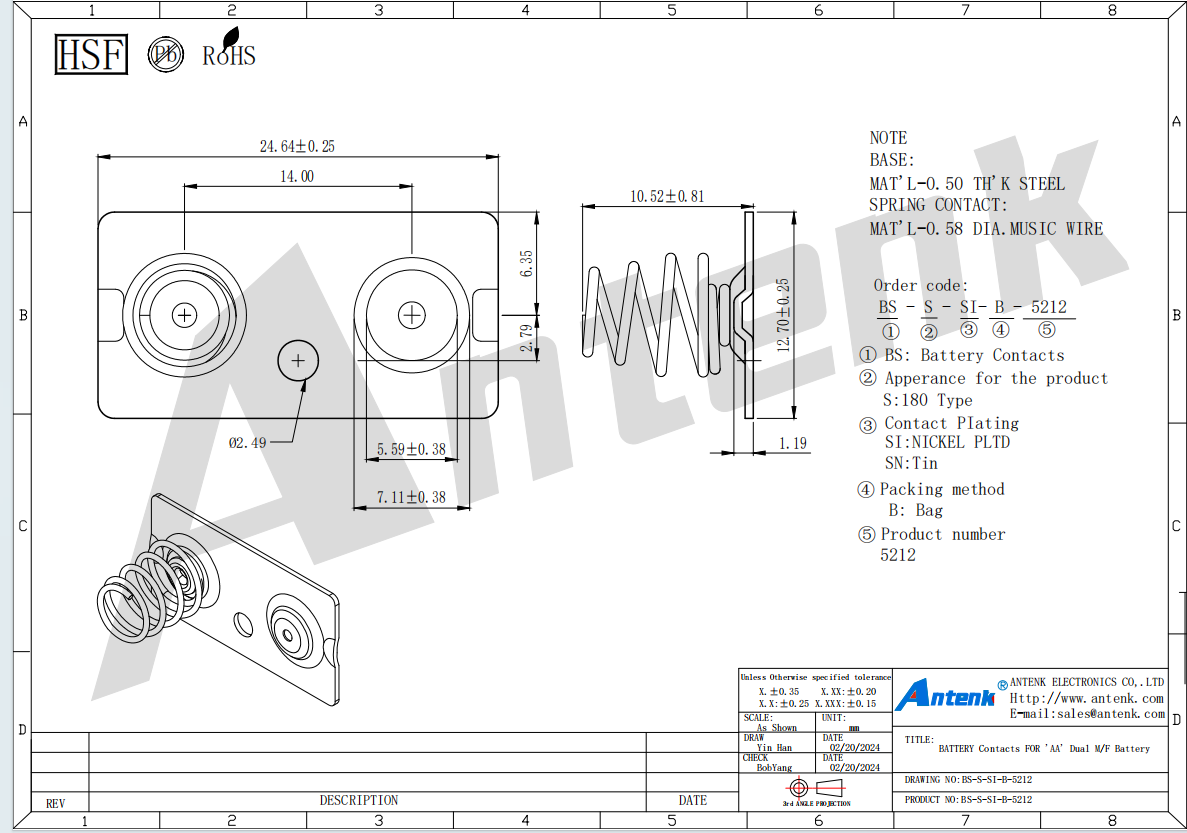

BATTERY Contacts FOR AA Dual M/F Battery

The Battery Contacts for 'AA' Dual M/F Battery represent a precision-engineered solution for series or parallel configuration of two AA cells. These contacts are specifically designed with a male-to-female (M/F) interface, allowing for secure, polarity-correct connections in compact battery housings or custom power systems. Unlike standard single-cell contacts, this dual configuration uses opposing spring-loaded terminals—one positive (male) and one negative (female)—to capture two AA batteries end-to-end or side-by-side. The male contact typically features a raised button or nub that mates with the female recessed plate, ensuring consistent electrical engagement even under vibration or shock. Manufactured from nickel-plated steel or phosphor bronze, these contacts offer low electrical resistance (typically below 30 mΩ) and excellent corrosion resistance. The dual design eliminates the need for separate wire soldering between cells, reducing assembly time and improving reliability in consumer electronics, medical devices, and portable instruments. Each contact set includes the necessary retention barbs or through-hole pins for secure PCB mounting or snap-fit installation into plastic battery enclosures.



Constructed from high-grade spring-tempered metals, the Battery Contacts for 'AA' Dual M/F Battery deliver consistent pressure (150–250 grams per contact) to maintain low-resistance connections throughout the battery's discharge cycle. The nickel plating (5–10 µm thickness) provides excellent solderability and protection against oxidation, while optional gold plating (0.5–1 µm) can be specified for ultra-low-voltage or high-humidity applications. Each contact is rated for continuous currents up to 3A and intermittent peaks of 5A, making them suitable for high-drain devices such as motorized toys, flashlights, or wireless sensors. The dual M/F design inherently prevents reverse polarity assembly errors when paired with a compatible plastic frame, as the male and female shapes are physically distinct. Electrical testing confirms a contact resistance variance of less than ±10% across 10,000 insertion cycles, ensuring long-term reliability. Furthermore, the spring geometry is optimized to accommodate both alkaline and rechargeable NiMH AA batteries, whose outer can dimensions may vary slightly (14.0–14.5 mm diameter). This adaptability reduces inventory requirements for manufacturers—one contact design works across multiple battery brands.



Typical applications for these Battery Contacts include battery packs for portable medical monitors, handheld barcode scanners, IoT sensors, and educational electronics kits. The dual M/F configuration is particularly valuable in space-constrained designs, as it eliminates jumper wires and reduces the PCB footprint by up to 40% compared to discrete single-cell holders. Installation is simplified through either wave soldering (for through-hole versions) or reflow soldering (for surface-mount variants with high-temperature plastic bases). Many variants include integrated polarity markings and foolproof keying features to guide automated assembly machines. For rugged environments, optional anti-vibration tabs or locking claws prevent contact loosening due to mechanical shock. Additionally, the open-frame design allows for passive cooling of batteries during high-rate discharge, extending cycle life by 15–20% compared to fully enclosed holders. Customization services are available for contact material, plating thickness, and termination style (e.g., right-angle pins, wire leads, or spring probes). When paired with a UL 94V-0 rated plastic frame (sold separately), the complete assembly meets safety standards for consumer and industrial products. These contacts are shipped in anti-static carrier tape or bulk bags, with minimum order quantities as low as 500 pieces for prototyping and up to 100,000 pieces for production runs.
