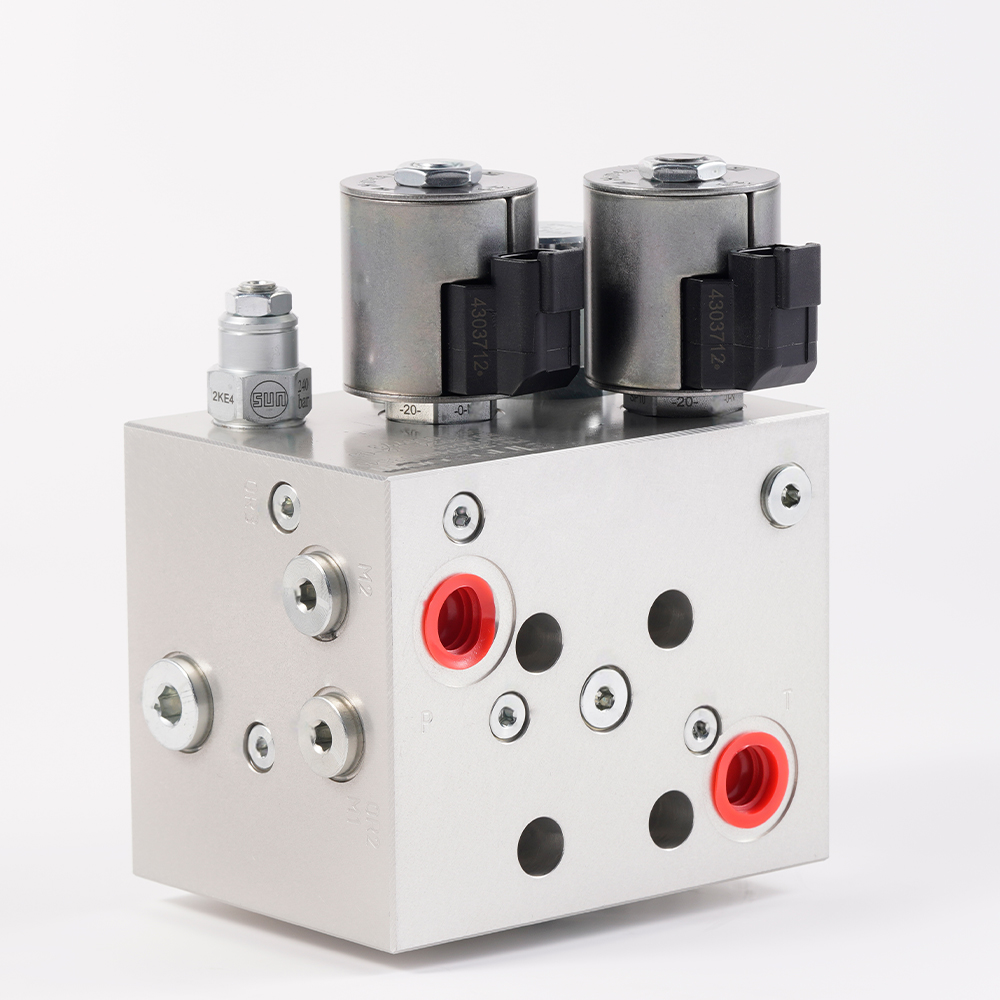

Luffing Control Hydraulic Valve Block
TheLuffing Control Hydraulic Valve Blockis a core component in hydraulic systems designed to control the luffing mechanism (e.g., the lifting or lowering of crane jibs). It regulates hydraulic oil flow and direction to ensure smooth, stable, and precise movement of the jib during operations such as lifting, lowering, and hovering. Below is a detailed breakdown of its functions, applications, technical features, selection criteria, and maintenance guidelines.
------
I. Core Functions
1. Flow Control
• Integrates proportional or throttle valves to precisely adjust hydraulic oil flow, controlling the jib’s movement speed.
• Example: During jib lowering, throttle valve modulation prevents rapid descent due to gravity, ensuring operational safety.
2. Direction Control
• Uses directional control valves (e.g., solenoid-operated valves) to switch hydraulic oil flow paths, enabling jib lifting, lowering, or stopping.
• Example: When solenoid activation shifts the valve to the "lift" position, hydraulic oil drives the cylinder to extend, raising the jib.
3. Pressure Protection
• Incorporates relief or safety valves to prevent system overpressure, which could damage equipment.
• Example: If pressure exceeds the set limit, the relief valve opens, redirecting oil to the tank to maintain stable system pressure.
4. Load Holding
• Employs hydraulic check valves (counterbalance valves) to prevent jib drift caused by external forces or self-weight when stationary, ensuring stable load suspension.
• Example: In crane operations, counterbalance valves lock the jib position to avoid accidental lowering.
------
II. Typical Applications
1. Lifting Machinery
• Used in truck-mounted cranes and tower cranes to adjust jib angles for precise load positioning.
• Example: Tower crane luffing mechanisms control jib telescoping to expand operational reach.
2. Aerial Work Platforms
• Regulates the lifting and extension of work arms in scissor lifts or boom lifts, ensuring operator safety at height.
3. Marine Deck Machinery
• Adapts to harsh marine conditions in ship cranes or deck cranes, incorporating shock-absorbing designs (e.g., buffer valves) to mitigate wave-induced jib impacts.
------
III. Technical Features
1. Modular Design
• Integrates multiple hydraulic components (valves, fittings, sensors) into a compact block, reducing piping complexity and leakage risks while simplifying installation and maintenance.
• Example: Ningbo Yuzhou Hydraulic Equipment Co., Ltd.’s balance valve blocks feature screw-in cartridge designs for compactness and superior sealing.
2. High-Precision Control
• Utilizes proportional control technology (e.g., electro-hydraulic proportional valves) for fine-tuned jib adjustments, meeting demanding precision requirements.
• Example: In precision loading/unloading scenarios, proportional valves enable millimeter-level jib movement control.
3. Contamination Resistance
• Optimized flow path designs minimize burrs and dead zones, reducing failure risks from hydraulic fluid contamination.
• Example: Abrasive flow machining is used to deburr intersecting holes, enhancing valve block reliability.
4. Energy Efficiency
• Incorporates load-sensing control (LSC) technology to automatically adjust pump output based on load demands, reducing energy waste.
• Example: Under light loads, the pump reduces displacement to lower system power consumption.
------
IV. Selection and Maintenance Guidelines
1. Selection Criteria
• Operating Pressure: Choose a valve block rated for the system’s maximum pressure (e.g., 250 bar).
• Flow Requirements: Match pump output flow (e.g., 30 L/min) with the valve block’s flow capacity.
• Environmental Adaptability: For high-temperature or corrosive environments, select materials like F92 heat-resistant steel or corrosion-resistant coatings.
2. Maintenance Recommendations
• Regular Inspections: Check seals and fittings every 500 operating hours; replace degraded components promptly.
• Fluid Management: Change hydraulic oil every 2,000 hours and filter it to maintain cleanliness at NAS1638 Class 9.
• Troubleshooting: If jib vibration or rapid lowering occurs, inspect counterbalance or throttle valves for sticking; clean or replace as needed.
------
V. Industry Case Studies
• Supercritical Power Plant Project:
• High-end pressure control valve blocks achieved 5 years of fault-free operation with ±0.5% FS pressure control accuracy, reducing annual steam loss by ~6,500 tons and significantly improving power generation efficiency.
• Large-Scale Biopharmaceutical Enterprise:
• Hydraulic valve blocks with bellows-sealed structures operated for 30 months without seal failure in injection production lines, meeting GMP and FDA certification requirements and ensuring consistent pharmaceutical quality.
