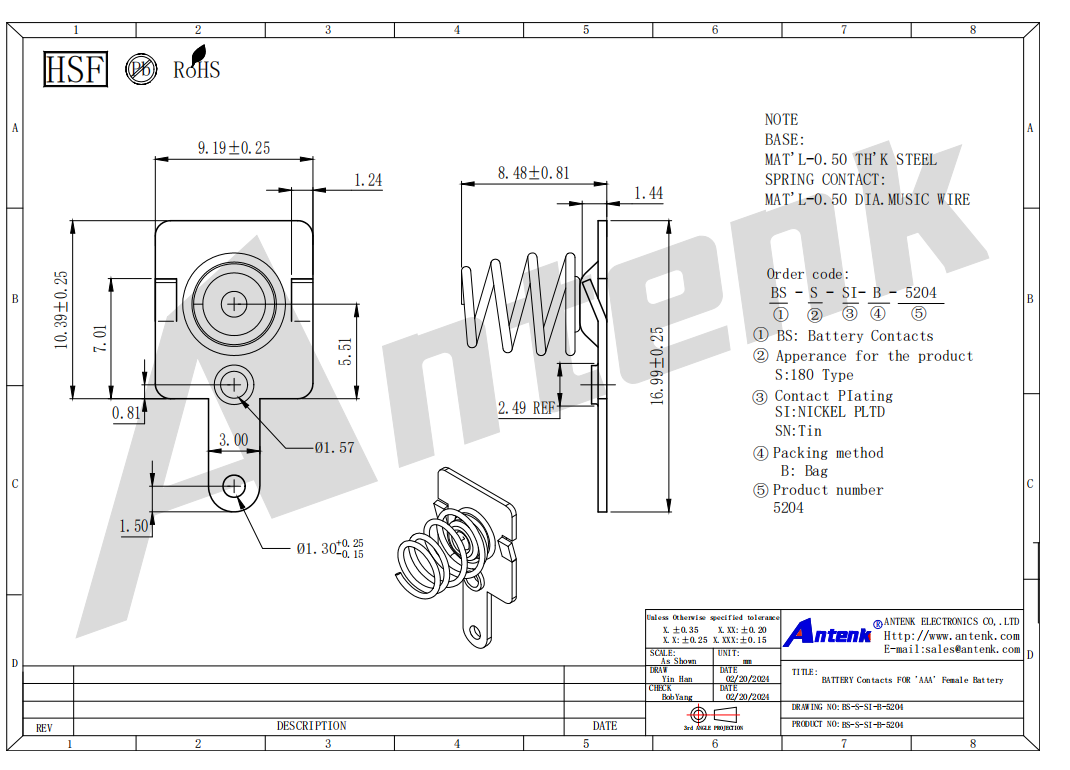

Engineered specifically for portable electronics and compact power systems, our BATTERY Contacts for 'AAA' Female Battery deliver uncompromised electrical reliability and mechanical endurance. These contacts are meticulously designed to interface with the negative (female) terminal of standard AAA batteries, ensuring a snug, corrosion-resistant connection in devices ranging from medical monitors and wireless sensors to children’s toys and LED flashlights. Manufactured from spring-tempered nickel-plated steel or optional phosphor bronze, each contact features a precisely formed “female” pocket geometry that cradles the battery’s flat bottom terminal. The dimpled or raised ridge contact pattern maximizes point pressure, breaking through residual oxide layers on battery surfaces for instantaneous power draw. Unlike generic stamped tabs, our design incorporates anti-vibration barbs and self-locating guide rails, guaranteeing consistent alignment even under mechanical shock or repeated battery changes.
Superior conductivity and long-term stability set our AAA female battery contacts apart. The 0.25mm to 0.35mm thick base metal, coated with 3–5μm of nickel followed by a flash layer of gold or tin (optional), yields contact resistance below 30mΩ per interface at 500mA load. This translates to negligible voltage drop – critical for low-power IoT sensors and real-time clocks where every microwatt matters. The spring constant is computationally optimized: low enough to not deform the AAA battery can, yet high enough to maintain >150g of normal force after 2,000 insertion/removal cycles. Furthermore, the open-frame construction prevents electrolyte wicking from leaking batteries, while the lead-free plating complies with RoHS and REACH standards. Thermal cycling tests (-40°C to +85°C) show less than 5% change in contact force, making these terminals suitable for outdoor or automotive-grade auxiliary devices. For high-vibration environments, optional solder tabs with through-hole pins or SMT feet ensure permanent PCB anchoring.
From consumer electronics to industrial backup systems, our AAA female battery contacts simplify product design and assembly. Common applications include single-AAA to four-series battery holders, glucose meters, wearables, remote controls, and backup memory sockets. We offer off-the-shelf variants: straight PCB-mount, wire-lead attached, and side-entry slide contacts for space-constrained enclosures. Custom geometries – such as offset legs, double dimples, or integrated spring arms – can be tooled within 15 working days. Each batch undergoes 100% dimensional inspection (vision system with ±0.02mm tolerance), pull-force testing (minimum 3N retention), and accelerated humidity aging (96 hours at 40°C/93% RH) to verify no fretting corrosion occurs. For high-volume buyers, we provide tape-and-reel packaging for SMT pick-and-place or bulk bagging with anti-tarnish separators. Backed by a 2-year reliability warranty, these battery contacts keep your AAA-powered projects running reliably – contact our engineering team for free samples and 3D CAD models.
