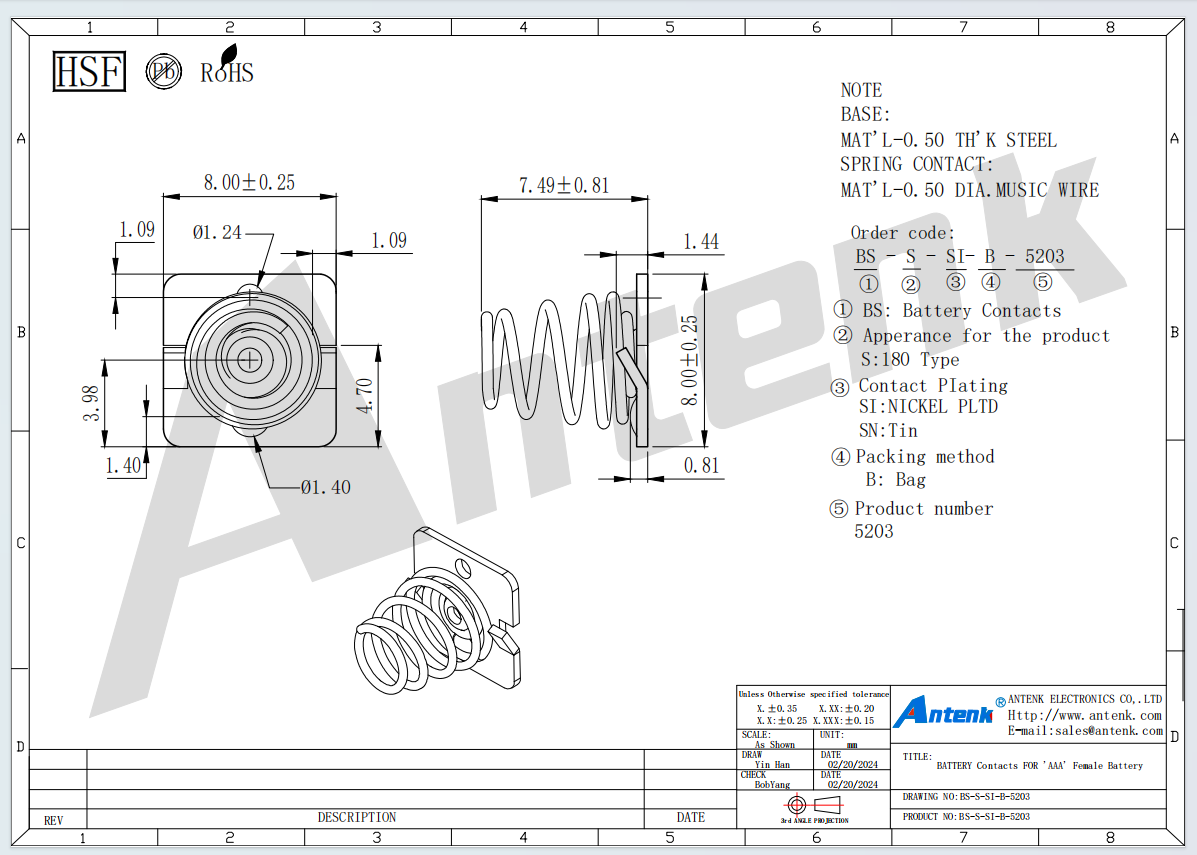

BATTERY Contacts FOR'AAA'Female Battery

The foundation of any dependable battery-powered device lies in its unseen backbone—the contacts. Our Battery Contacts for 'AAA' Female Battery Holders are precision-engineered to provide an uncompromising electrical interface between the battery’s negative terminal (the flat, female-receiving end) and your PCB or wiring harness. Unlike generic stamped contacts that compromise on material thickness or plating uniformity, these components are manufactured to exacting tolerances. Each contact features a concave receiving pocket specifically contoured to match the geometry of a standard AAA cell’s negative pole. This ensures a consistent, low-resistance path for current flow, minimizing voltage drop under load and eliminating intermittent connection issues commonly found in inferior contacts. We have meticulously designed the spring finger geometry to deliver an optimal normal force—secure enough to withstand shock and vibration in portable electronics, yet compliant for easy battery insertion and removal. Whether you are designing medical monitors, IoT sensors, or children’s toys, these female contacts guarantee that your AAA batteries will perform reliably through thousands of duty cycles.



Performance in demanding environments starts with material science. Our AAA female battery contacts are fabricated from high-grade phosphor bronze (C5191) , selected for its exceptional combination of electrical conductivity, fatigue resistance, and inherent spring memory. This ensures that even after years of compressed service, the contact returns to its original shape, maintaining consistent pressure against the battery terminal. To combat the relentless threat of corrosion and oxidation, we apply a nickel underplate (50–80 µ-inches) followed by a gold or pure tin top plating—configurable to your environmental and regulatory requirements (RoHS and REACH compliant). The gold option excels in low-voltage, low-current applications (e.g., wearable electronics) by preventing the formation of non-conductive oxide films. Conversely, the tin plating offers cost-effectiveness and excellent solderability for high-volume consumer goods. Each contact features reinforced stress-relief radii at critical bend points, eliminating microscopic cracks that lead to premature failure. Furthermore, the design includes anti-overstress stops, preventing plastic deformation if batteries are inserted incorrectly. This robust construction translates directly into reduced field failures, lower warranty returns, and extended product lifespans, even in humid or thermally cycling conditions.



Flexibility is paramount when integrating components into space-constrained enclosures. Our AAA female battery contacts are available in multiple configurations: through-hole (THT) with coined leads for superior PCB retention, surface-mount (SMT) with flat solder pads for automated assembly, and wire-attach variants with crimped barrels for discrete lead connections. Each contact is supplied on embossed carrier tape (12mm width, 4mm pitch) compatible with high-speed pick-and-place machinery, ensuring seamless integration into your existing SMT lines. For low-volume prototyping or field repairs, we offer loose-pack options with full datasheets detailing key dimensions (overall height, insertion depth, and terminal spacing). Application guidance is included: These contacts are ideal for dual-AAA battery sleds, parallel packs (for increased runtime), or series configurations (to achieve 3V nominal output). We recommend pairing these female contacts with our matched AAA positive (nub) contacts for a complete battery interconnect system. To assist your design validation, sample kits containing all plating and footprint options are available for immediate order. Contact our application engineers to discuss custom lead lengths, pre-formed solder tails, or high-temp (260°C reflow) compatible materials. Ready to eliminate battery connectivity issues—specify our precision AAA female contacts on your next BOM.
