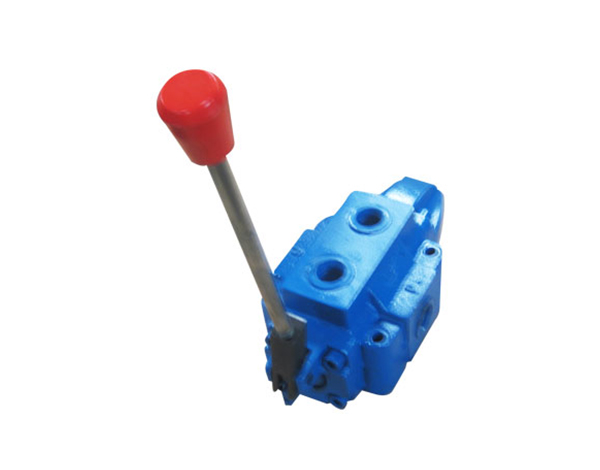

34SM-L20H-T/W Manual directional control valve
3 month ago
Product details
I. Product Overview
The34SM-L20H-T/Wis a3-position, 4-way manual directional control valve, designed as a配套 control component (or used independently in certain applications) for swashplate-type axial piston variable displacement pumps. It is primarily used to switch oil flow paths in hydraulic systems by manually operating a lever to reposition the valve spool. Suitable for construction machinery, machine tools, mining equipment, and other scenarios requiring manual hydraulic circuit control.
------
II. Key Specifications
1. Model Variants
• 34SM-L20H-T: Features a specific neutral position function (e.g., "T" may represent an O-type or H-type neutral function; confirm via product nameplate).
• 34SM-L20H-W: Features an alternative neutral position function (e.g., "W" may represent a Y-type or P-type function).
• Nominal Port Size: L20H indicates a nominal port diameter of20 mm, supporting a maximum flow rate of approximately200 L/min(dependent on system pressure).
2. Performance Parameters
• Rated Pressure: ≤31.5 MPa, suitable for medium- to high-pressure hydraulic systems.
• Working Fluid: Anti-wear hydraulic oil (viscosity range: 10–80 cSt); compatible with mineral oils, water-glycol, etc.
• Temperature Range: -20°C to +80°C, adaptable to extreme environments.
3. Construction & Materials
• Valve Body: High-strength cast iron or steel for pressure resistance and shock absorption.
• Valve Spool: Hardened alloy steel (HRC ≥ 55 after quenching) for wear resistance.
• Seals: Nitrile rubber (NBR) or fluororubber (FKM) for oil/corrosion resistance and longevity.
------
III. Functional Features
1. 3-Position, 4-Way Design
• Supports three operational positions (left, right, neutral) for oil flow switching via lever operation.
• Neutral function determines oil path state (e.g., O-type locks flow, H-type unloads pressure); select based on system requirements.
2. Manual Lever Control
• Lightweight, effortless operation without external power sources, ideal for environments without electricity or unstable power.
• Lever design reduces operating torque and fatigue.
3. High Reliability
• Hydraulically balanced spool structure for strong contamination resistance in harsh conditions.
• Excellent sealing performance with minimal internal leakage to ensure system efficiency.
4. Modular Design
• Easy maintenance and component replacement to minimize downtime.
• Compatible with installation dimensions of mainstream Yuci-series valves in China for equipment retrofitting.
------
IV. Applications
1. Construction Machinery: Hydraulic cylinder control in excavators and loaders for action switching (e.g., digging, lifting).
2. Industrial Equipment: Mold opening/closing and ejection mechanism control in hydraulic presses and injection molding machines.
3. Mining Equipment: Directional adjustment of hydraulic motors in drills and crushers.
4. Marine & Offshore Engineering: Hydraulic drive control for deck machinery and steering gear.
------
V. Installation & Operation Guidelines
1. Pre-Installation Checks
• Verify valve model and neutral function match system requirements to avoid misuse.
• Clean oil lines to prevent debris from entering the valve and causing wear or jamming.
2. Installation Steps
• Plate-Mounted: Ensure mounting surface flatness ≤0.05 mm; tighten bolts diagonally to specified torque.
• Pipe-Mounted: Use standard hydraulic fittings; wrap thread sealant tape or apply sealant for threaded connections.
• Port Identification: Correctly connect P (pressure), T (tank), A/B (working ports) to prevent short circuits.
3. Operation Protocols
• Move lever smoothly; avoid excessive force or impact to prevent spring overload or spool damage.
• For detent-type valves (e.g., 34SO), confirm steel ball engagement to prevent unintended shifting; unlock before operating lock-type valves (e.g., 34SY).
------
VI. Maintenance & Troubleshooting
1. Regular Inspections
• Replace seals if leakage occurs at the spool stem.
• Drain hydraulic oil from the valve during long-term equipment shutdown to prevent internal corrosion.
2. Common Faults & Solutions
• Stiff Operation: Check hydraulic oil viscosity, internal debris, or deformed return springs.
• Shift Failure: Inspect control mechanisms (springs, steel balls, hydraulic reset circuits) or spool wear.
• Excessive Internal Leakage: Disassemble to check spool-valve body clearance; replace if >0.03 mm.
------
VII. Selection Recommendations
1. Define System Requirements: Pressure, flow rate, fluid type, and required neutral function (e.g., O-type, H-type).
2. Refer to Product Nameplate: Confirm neutral function symbols and mounting dimensions via official specifications.
3. Consult Suppliers: For technical support or selection assistance, contact manufacturers likeShanghai ShuangxuorYuci Hydraulic.
