GL-13190 Strap Hinge

Heavy-Duty 275mm Strap Hinge

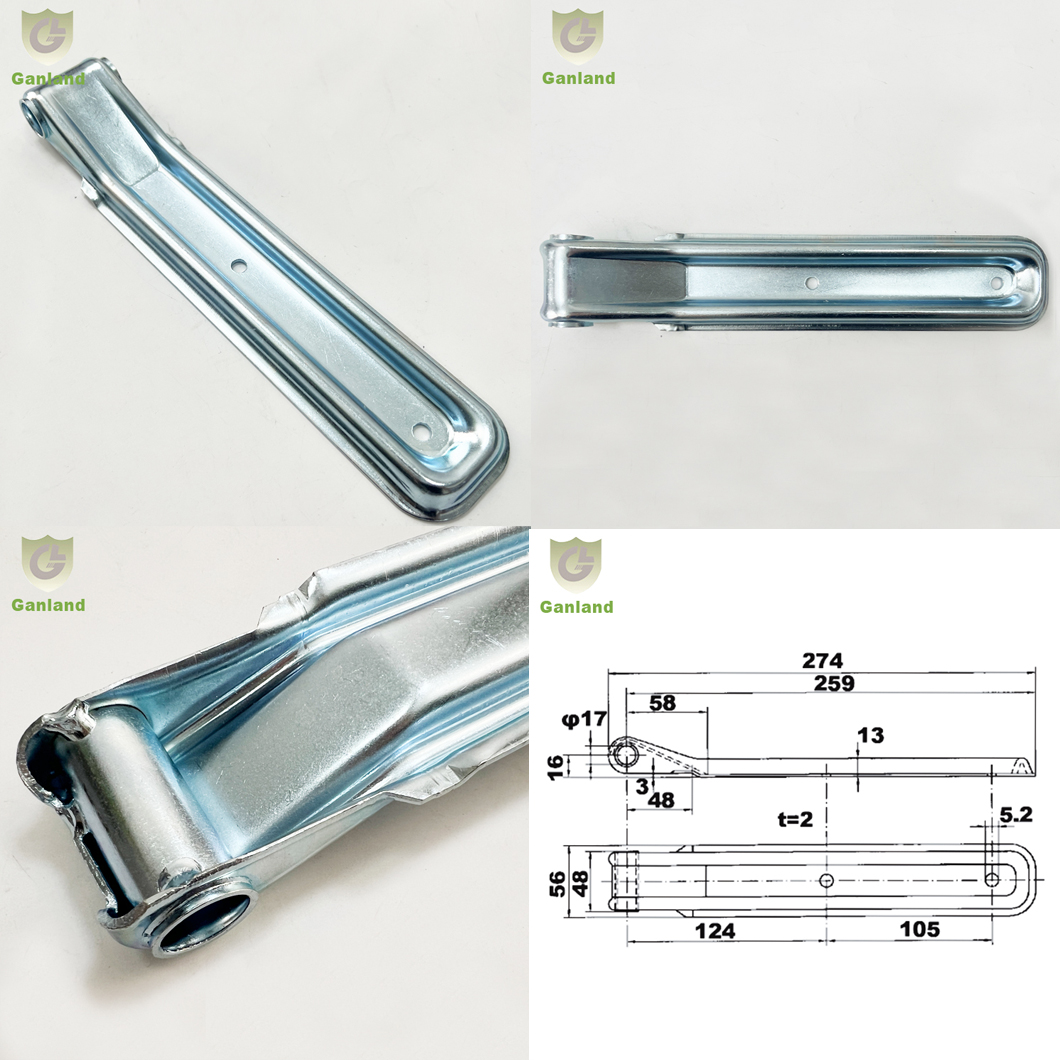

The 275mm Strap Hinge featured in the image is an industrial-grade mechanical pivot designed for the heavy-duty transport and logistics sectors. Engineered specifically for the rear and side doors of commercial vehicles, including box trucks, trailers, and shipping containers, this hinge is built to support significant weight while maintaining a smooth and reliable range of motion over long-term service cycles.

Material Strength and Protective Finish

To meet the rigorous demands of road transport, this strap hinge is fabricated from high-strength forged steel. This choice of material ensures that the hardware can withstand the constant vibrations, mechanical stresses, and shifting loads common in the trucking industry. The entire assembly is treated with a high-quality zinc-plated finish, providing a robust barrier against environmental corrosion. This industrial coating is essential for preventing rust and oxidation caused by exposure to rain, road spray, and salt, thereby extending the operational life of the hinge and ensuring it remains aesthetically professional.

Design and Structural Engineering

The structural design of the hinge focuses on maximizing rigidity and ease of installation. Its key features include:

• Reinforced Strap Profile: The long 275mm strap body is engineered with a deep central stamped channel. This architectural ribbing significantly increases the strap's resistance to bending and warping, ensuring that the door remains perfectly aligned even when subjected to heavy impacts or high-pressure door seals.

• Precision-Drilled Mounting Holes: The strap features two strategically placed, pre-drilled mounting holes. These facilitate a secure, multi-point bolt-on attachment to the door panel, distributing the load evenly and preventing stress fractures at the fastening points.

• Streamlined, Low-Profile Geometry: The tapered design of the strap ends provides a modern industrial look while minimizing the hardware's outward protrusion. This low-profile nature helps maintain the vehicle's aerodynamics and reduces the risk of the hinge snagging on external objects during loading operations.

High-Performance Pivot Mechanism

At the core of the hinge is a precision-engineered barrel assembly. The barrel is designed to house a robust pivot pin (not shown), ensuring a stable and secure rotation point. The tight tolerances in the barrel construction minimize lateral "play," which prevents door sag—a common issue in lower-quality hinges. This precision ensures that the vehicle doors open and close with a consistent, solid feel, providing a high-quality user experience for drivers and logistics personnel.

Professional Applications

This 275mm strap hinge is a preferred hardware choice for truck body builders and fleet maintenance managers who require reliable, heavy-duty components for cargo protection. Whether utilized for a new vehicle build or as a high-quality replacement part, this hinge provides the structural integrity and smooth operation necessary for the efficient functioning of commercial transport doors. Its combination of forged steel durability and corrosion-resistant plating makes it a dependable solution for any professional vehicle application.
