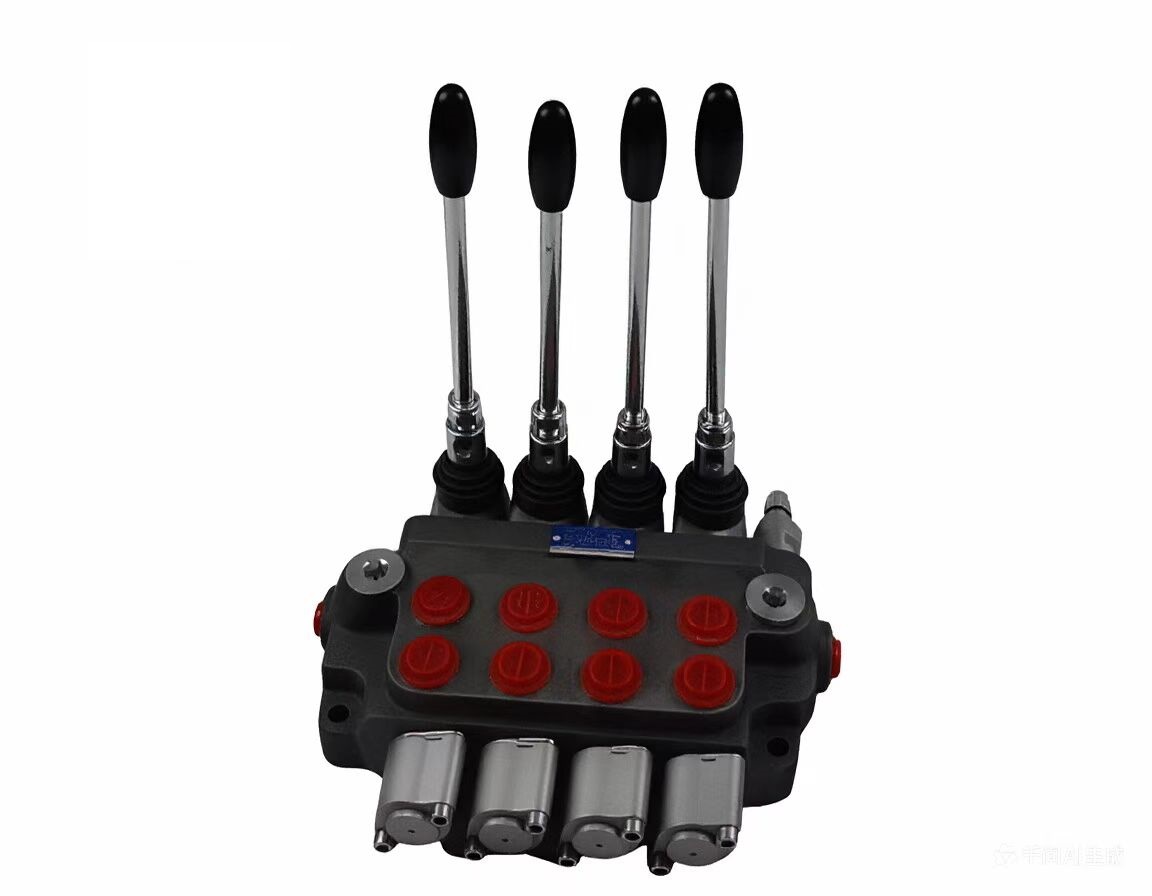

ZDa-L15-5OT Dual-Control Directional Control Valve
3 month ago
Product details
TheZD-L15-4OT 4-Port Directional Control Valveis a critical control component used in hydraulic systems, primarily designed to regulate the flow direction of hydraulic oil, thereby controlling the motion direction and sequence of hydraulic actuators (such as hydraulic cylinders and motors). Below is a detailed introduction to this valve:
I. Product Overview
• Type: 4-port directional control valve, typically featuring four oil ports (P, T, A, B) to enable bidirectional flow and multiple control functions of hydraulic oil.
• Applications: Widely used in construction machinery, agricultural machinery, industrial automation equipment, and other fields, such as excavators, loaders, cranes, and agricultural harvesters.
II. Main Functions
1. Directional Control: By altering the position of the valve spool, it controls the flow direction of hydraulic oil among the four oil ports, thereby governing the motion direction of actuators.
2. Flow Regulation: Some 4-port directional control valves also offer flow regulation capabilities, adjusting the valve port opening to control hydraulic oil flow and, consequently, the motion speed of actuators.
3. Pressure Control: Advanced 4-port directional control valves may integrate pressure control functions, such as relief valves and pressure-reducing valves, to protect the system from overload and pressure surges.
III. Technical Features
• Compact Structure: The ZD-L15-4OT 4-port directional control valve typically adopts an integrated design, featuring a compact structure that occupies minimal space and facilitates easy installation and maintenance.
• Rapid Response: The valve spool moves swiftly with a short response time, enabling quick changes in hydraulic oil flow direction to meet the demands of high-speed motion control.
• High Reliability: Crafted from high-quality materials and employing advanced manufacturing processes, the valve ensures stable performance even under harsh working conditions.
• Excellent Sealing: Utilizing advanced sealing technologies and materials, it effectively prevents hydraulic oil leakage, enhancing system efficiency and reliability.
IV. Selection and Usage Considerations
1. Determine Operating Pressure and Flow: Select a valve with an appropriate operating pressure and flow range based on the system's actual requirements.
2. Consider Control Method: Choose a control method (manual, electric, pneumatic, or hydraulic) that aligns with your control needs.
3. Pay Attention to Installation Method: Select a suitable installation method (such as plate-mounted or pipe-mounted) based on the equipment's structure and space constraints.
4. Regular Maintenance and Inspection: Conduct regular maintenance and inspections on the valve to ensure it remains in good working condition, promptly identifying and addressing potential issues.
V. Application Example
Taking an excavator as an example, the ZD-L15-4OT 4-port directional control valve can be used to control the motion direction of the excavator's boom, arm, and bucket. By operating the control handle or remote controller, the position of the valve spool is changed, thereby directing hydraulic oil to the corresponding actuators and enabling various excavator movements.
