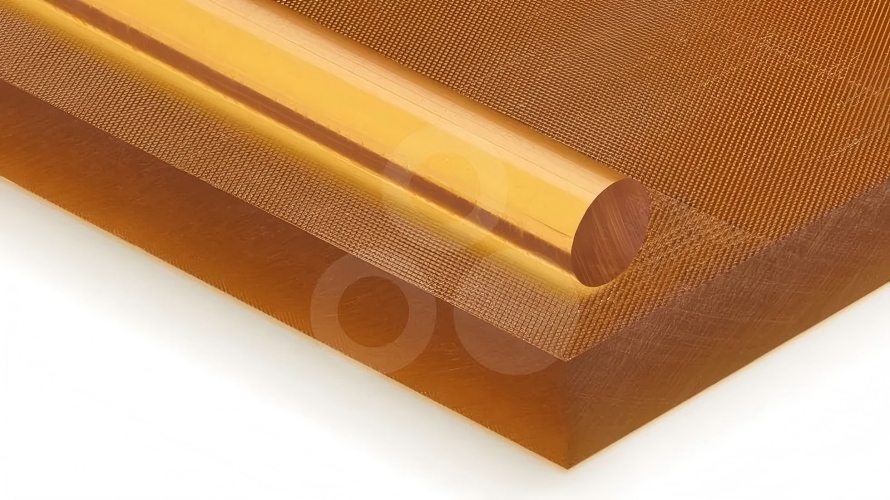

TECASON S natural PSU unfilled

TECASON S - PSU - is a transparent engineering plastic known for its chemical resistance, rigidity, and high-temperature performance. The polysulfone material's ability to operate in an autoclave environment while maintaining its excellent mechanical properties over a wide range of temperatures is one of this product's most beneficial performance characteristics.

Facts

Chemical designation

PSU (Polysulfone)

Colour

amber

Density

1.24 g/cm3

Main Features

good heat deflection temperature

high strength

high stiffness

high dimensional stability

electrically insulating

resistance against high energy radiation

good weldable

Target industries

mechanical engineering

vacuum technology

electronics

food technology

automotive industry

chemical technology

Technical Data Sheet

Mechanical properties	Value	Unit	Parameter	Norm
Modulus of elasticity	2700	MPa	1mm/min	DIN EN ISO 527-2
(tensile test)	2700	MPa	1mm/min	DIN EN ISO 527-2
Tensile strength	89	MPa	50mm/min	DIN EN ISO 527-2
Tensile strength at yield	89	MPa	50mm/min	DIN EN ISO 527-2
Elongation at yield (tensile test)	5	%	50mm/min	DIN EN ISO 527-2
Elongation at break (tensile test)	15	%	50mm/min	DIN EN ISO 527-2
Flexural strength	122	MPa	2mm/min, 10 N	DIN EN ISO 178
Modulus of elasticity	2600	MPa	2mm/min, 10 N	DIN EN ISO 178
(flexural test)	2600	MPa	2mm/min, 10 N	DIN EN ISO 178
Compression modulus	2300	MPa	5mm/min, 10 N	EN ISO 604
Compression strength	15/28/75	MPa	1% / 2% / 5%	EN ISO 604
Impact strength (Charpy)	175	kJ/m2	max. 7,5J	DIN EN ISO 179-1eU
Notched impact strength (Charpy)	4	kJ/m2	max. 7,5J	DIN EN ISO 179-1eA
Shore hardness	85		D	DIN EN ISO 868
Thermal properties	Value	Unit	Parameter	Norm
Glass transition temperature	188	C		DIN EN ISO 11357
Melting temperature	n.a.	C		DIN EN ISO 11357
Thermal conductivity	0.21	W/(k*m)		ISO 22007-4:2008
Specific heat	1.2	J/(g*K)		ISO 22007-4:2008
Service temperature	180	C	short term	NN
Service temperature	160	C	long term	NN
Thermal expansion (CLTE)	6	10-5*1/K	23-60°C, long.	DIN EN ISO 11359-1;2
Thermal expansion (CLTE)	6	10-5*1/K	23-100°C, long.	DIN EN ISO 11359-1;2
Electrical properties	Value	Unit	Parameter	Norm
surface resistivity	1014	Ω		-
volume resistivity	1014	Ω*cm
Other properties	Value	Unit	Parameter	Norm
Resistance to hot water/ bases	+	-		-
Flammability (UL94)	V0	-	corresponding to	DIN IEC 60695-11-10;
Resistance to weathering	-	-		-
Water absorption	0.06 - 0.1	%	24h / 96h (23°C)	DIN EN ISO 62
