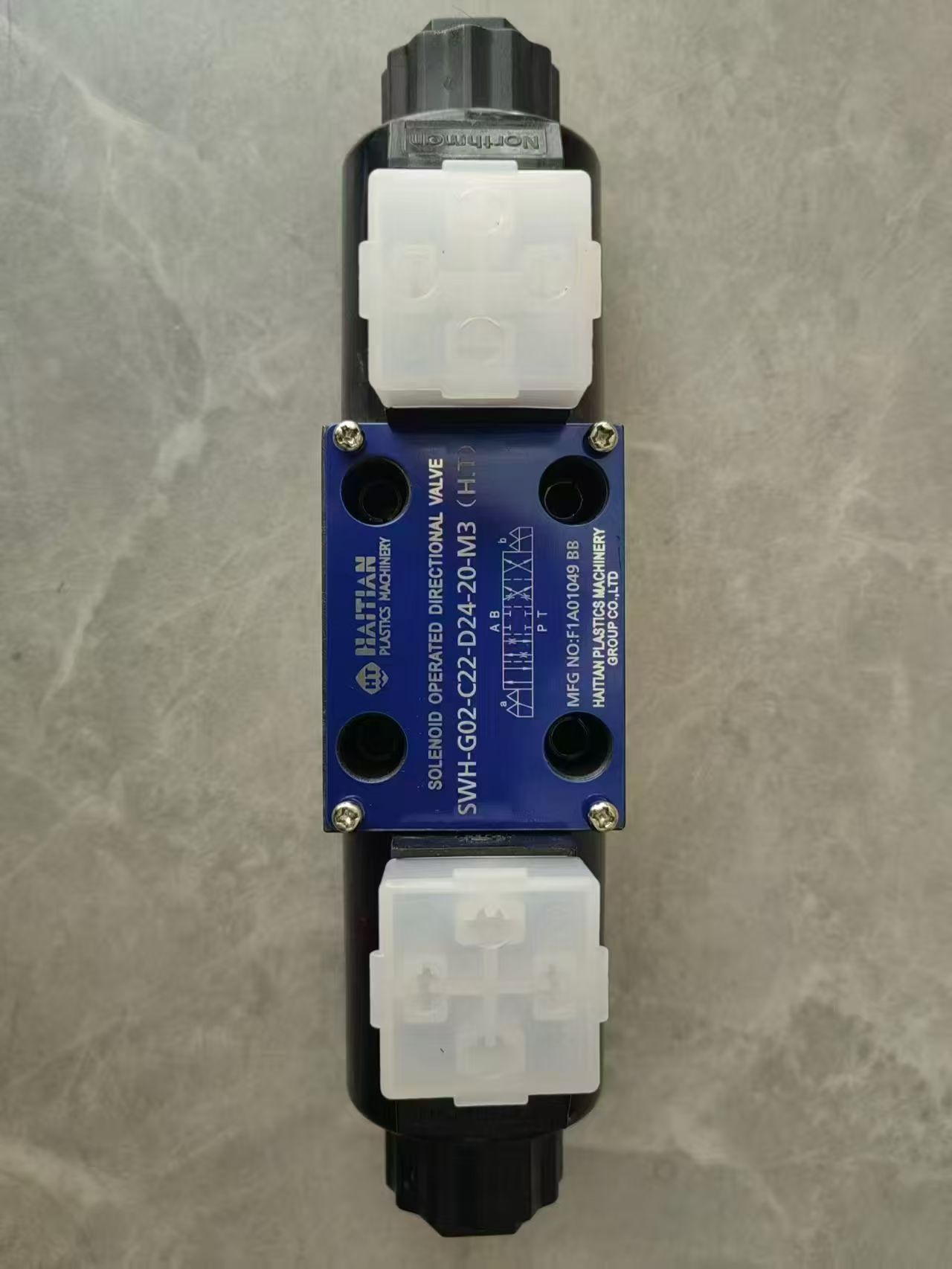

HAITIAN Directional Valve SWH-G02-C22-D24-20-M3
Model Code Explanation
- SWH: Solenoid directional valve series
- G02: DN6 size, plate mounting, ISO standard
- C22: 2-position 4-way, spring return, all ports closed neutral position
- D24: DC24V solenoid coil
- 20: Plug-in terminal box with indicator light
- M3: Special version for injection molding machines
Main Technical Parameters
- Max working pressure: 31MPa
- Rated flow: Max 63 L/min
- Allowable back pressure: 13.8MPa
- Operating frequency: 300 cycles per minute
- Oil temperature range: -25℃ ~ +90℃
- Recommended filtration accuracy: 25μm
- Standard seal material: NBR, FKM optional
- Rated voltage: DC24V, coil power: approx. 30W
Features
- Wet solenoid design, stable operation, low noise and long service life
- High thrust coil ensures reliable shifting under high pressure with strong pollution resistance
- M3 special model features fast response and low impact, suitable for high-frequency circulation
- Equipped with indicator light for easy maintenance and inspection
- Universal installation dimension, fully interchangeable with Yuken standard valves
Valve Function
2-position 4-way spring return type. All ports are closed at neutral position for pressure holding.
Energized: P to A, B to T
De-energized: Reset by spring, all ports sealed off
Application
Specially matched for Haitian injection molding machines, widely used in mold clamping, injection, ejector and core pulling hydraulic circuits. Also applicable to machine tools, automation equipment and other high-pressure hydraulic control systems.
Additional Info
Original manufacturer: Northman, commonly known as Haitian dedicated hydraulic valve. High precision ground spool, low internal leakage and excellent durability.
I. Product Features
1. Oil-immersed Electromagnetic Operation Design: The spool operates immersed in the oil within the system, providing lubrication. This ensures smooth and silent operation even under high pressure and high-frequency switching conditions.
2. High Energy Efficiency: The valve body's flow channel is specially designed with low internal impedance, reducing internal pressure loss and improving energy efficiency, thereby lowering operating costs.
3. Reduced Temperature Rise and Extended Service Life: Due to the low internal impedance and reduced pressure, the temperature of the hydraulic oil is correspondingly lowered, preventing oil degradation and extending its service life. This reduces the frequency of oil changes and associated costs. Additionally, the machine itself is less affected by heat, preventing accuracy errors or deformation due to thermal expansion, thus saving on maintenance expenses.
4. High-Pressure Application: This electromagnetic directional control valve can be used under high pressure, with a maximum pressure rating of up to 315 bar (specific pressure range may vary depending on the model and configuration), making it suitable for high-pressure and large-flow applications.
5. Special Coil Design: The electromagnetic coil is made of special materials and features a unique anti-loosening design for the fixing nut, preventing coil detachment due to vibration and ensuring operational safety.
6. Excellent Electrical Installation Waterproof and Dustproof Properties: The electrical connection methods include junction boxes and plug-in connection sockets, both equipped with indicator lights. The electrical junction box has a tightly sealed waterproof and dustproof design.
7. Easy Installation: The valve body's fixing bolts are externally connected, facilitating easy disassembly and assembly. Additionally, the ample space for electrical wiring makes installation and connection straightforward.
II. Technical Specifications (Examples)
• Model: SWH-G02-C22-D24-20-M3 (specific model may vary depending on the product version and configuration)
• Type: Directional control valve
• Material: Cast iron
• Application Scope: Hydraulic systems
• Product Alias: Electromagnetic directional control valve
• Applicable Medium: Oil
• Applicable Temperature: -10°C to 77°C (specific temperature range may vary depending on the model and configuration)
• Nominal Pressure: 25 MPa (specific pressure value may vary depending on the model and configuration)
• Nominal Diameter: May include various specifications such as 06, 10, etc. (specific diameter value may vary depending on the model and configuration)
• Mounting Type: Stacked
• Operating Temperature: Normal temperature
• Type (Channel Position): Three-way (specific channel position may vary depending on the model and configuration)
• Connection Type: Threaded
• Flow Direction: Directional change
• Actuation Method: Pulse (or electromagnetic)
• Form: May include various forms such as butterfly type (specific form may vary depending on the model and configuration)
• Pressure Environment: Normal pressure
• Main Body Material: Cast iron
III. Application Fields
This electromagnetic directional control valve is widely used in hydraulic systems, such as injection molding machines, construction machinery, and metallurgical equipment, to control the flow direction of hydraulic oil and achieve directional changes in actuators.
