Product details

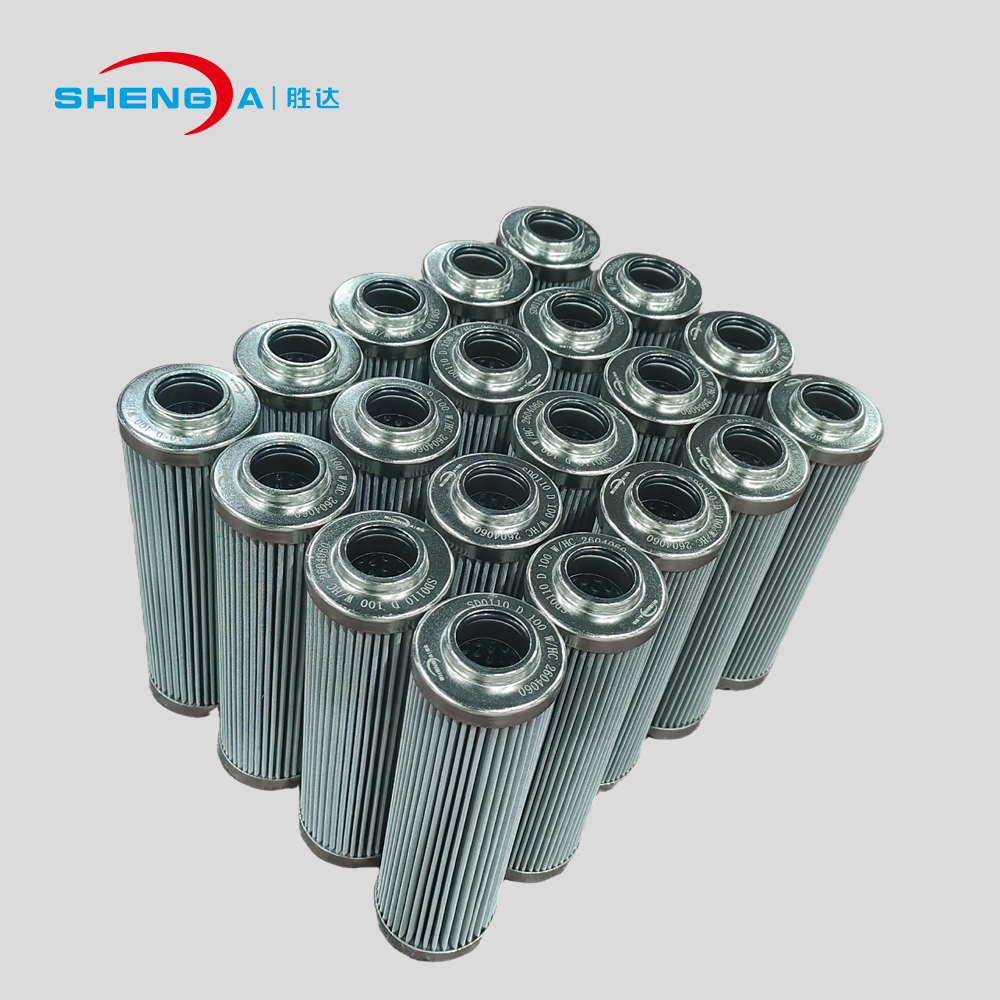

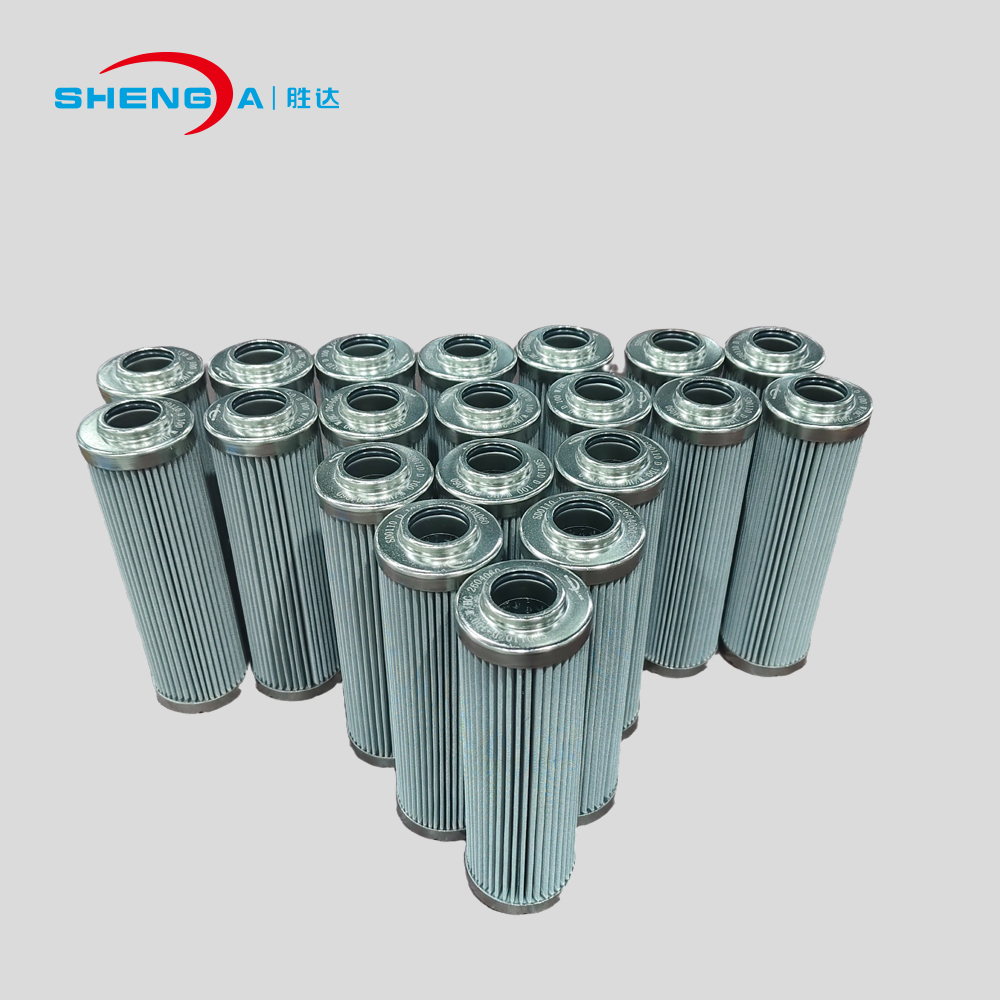

Hydraulic Metal Pressure Filter Element

1. Hydraulic Metal Pressure Filter Elements are high‑performance pressure‑line filter cartridges designed for hydraulic and lubrication systems. The W/HC variant features stainless steel wire mesh as the primary filtration media, offering robust, cleanable, and high‑temperature‑resistant filtration for coarse to medium particle removal.

These elements are engineered to fit pressure filter housings. They are standardly supplied without a bypass valve and conform to DIN 24550 standards.

2. Key Features

Stainless Steel Wire Mesh (W/HC) Media
- Material: 304/316L stainless steel woven wire mesh
- Structure: Multi‑layer mesh pack with support layers for mechanical stability.
- Cleanability: Reusable and washable, significantly reducing operating costs.
- Temperature Resistance: Operates reliably from ‑30°C to +100°C.
- Chemical Compatibility: Excellent resistance to mineral oils, synthetic fluids (HFA/HFC), and most industrial chemicals.

Mechanical Strength

- Collapse Stability: 20 bar differential pressure resistance.
- System Pressure: Compatible with hydraulic systems up to 315 bar.
- Construction: Robust steel support tube, welded end caps, and high‑integrity longitudinal seams.
Performance & Efficiency
- Filtration Ratings: Standard absolute ratings from 25 µm to 100 µm (custom sizes available).
- Beta Ratio: High efficiency with βₓ(c) ≥ 1000 for rated particle size.
- Low Pressure Drop: Optimized flow design ensures minimal energy consumption.
- Long Service Life: High dirt‑holding capacity for extended maintenance intervals.
3. Applications
- Hydraulic Systems: Pressure lines in industrial machinery, mobile equipment, and marine systems.
- Lubrication Systems: Gearboxes, turbines, and circulating oil systems.
- Fluid Handling: Coarse filtration of synthetic oils, emulsions, and non‑aggressive chemicals.
- Industrial Filtration: Where reusability and high temperature resistance are critical.
