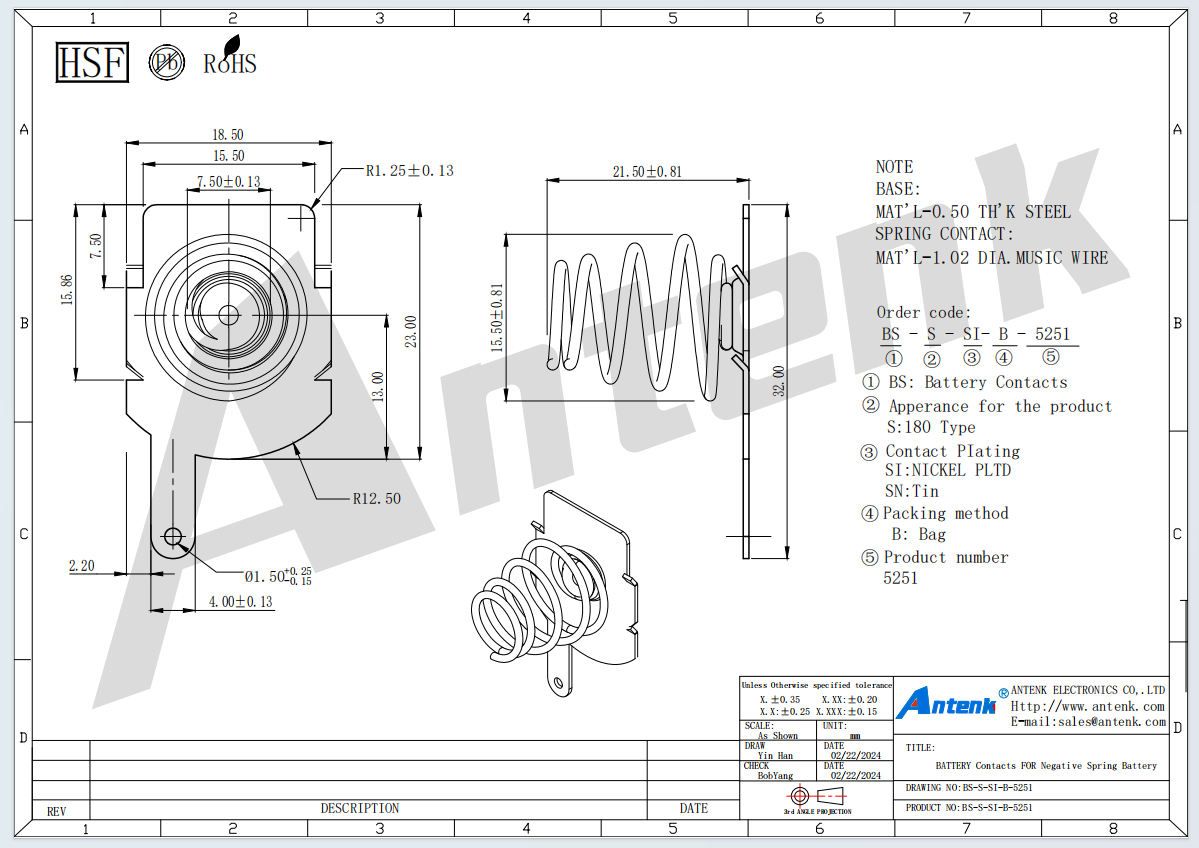

BATTERY Contacts FOR Negative Spring Battery 5251



Application Scope: Model 5251 is ideal for devices subjected to vibration, shock, or frequent battery changes including automotive key fobs, handheld industrial scanners, portable medical monitors, GPS tracking devices, children's electronic toys, TV remote controls, wireless gaming controllers, digital cameras, portable flashlights, and IoT sensors – markets where Antenk already supplies customers in the USA, Germany, South Korea, India, Russia, and beyond. Usage Method: Insert the spring contact’s lead wire or solder tail into the PCB through-hole and solder securely. The spring should be compressed 2–3mm when the battery is fully inserted. For optimal performance, pair with a flat positive contact. To remove the battery, compress the spring further or use a pull tab. Precautions: Do not over-compress the spring beyond 70% of its free length; avoid soldering heat exposure longer than 5 seconds near the spring coil; do not use in applications exceeding 5A continuous current. Advantages Over Competitors: Unlike competitors who use cheap steel springs that corrode quickly, Antenk’s Model 5251 uses nickel-plated music wire with 48-hour salt spray resistance. Competitors often have inconsistent spring forces due to poor winding control; Antenk uses Japanese CNC spring coiling machines with ±0.1mm pitch tolerance. While others require 10,000+ MOQ for custom spring specifications, Antenk offers low MOQs (1,000 units) with no tooling fees for standard modifications (wire diameter, coil diameter, free length, plating thickness). Our IATF16949 certification ensures automotive-grade quality management – most spring contact suppliers lack this. Additionally, our 100% spring force testing and 20,000-cycle fatigue validation ensure superior reliability.



Antenk’s vertical integration delivers consistent quality for Model 5251. Process flow: (1) Precision spring coiling on Japanese CNC machines using 0.3mm–0.8mm diameter music wire or stainless steel wire; (2) Stress-relief heat treatment (optional for high-cycle applications); (3) Nickel or tin barrel plating with 5–8 micron thickness and real-time adhesion testing; (4) Lead wire or solder tail stamping/assembly on automated lines; (5) 100% spring force testing per EIA-364-04 using laser-measured compression testers; (6) Contact resistance testing per EIA-364-06 under simulated compression; (7) 48-hour salt spray corrosion testing (sample-based); (8) Fatigue cycle testing to 20,000 compressions (batch validation); (9) Final QC with lot traceability and spring force histogram report. Our laboratory houses 20+ testing devices including CNC spring testers, profile projectors, hardness testers, and environmental chambers. With 250+ employees including dedicated engineering and QA teams, 18+ mold-making machines, and 180+ automatic assembly machines, we provide free samples, complete 2D/3D CAD drawings showing spring compression curves, and 24-hour technical support. Contact Antenk today for a quotation – we typically respond within 4 hours and ship spring contact samples within 3 days. Ask about our volume discounts (5,000+ units) and custom spring specifications (wire gauge, coil diameter, free length, and plating). With 70% of our products exported worldwide and 18 years of experience, Antenk is your trusted partner for reliable negative spring battery contacts.
