Diamond F1 Pro Manual Powder Coating Machine

7 month ago
33 0
Product details
Product introduction
Debelle Diamond F1 powder coating machine-For Energy Storage Battery Cabinets & PCS Enclosures
 Diamond series high-power electrostatic powder spraying machine exclusively for energy storage metal cabinets, achieving full thick coating coverage on deep cabinet grooves and frame corners with zero exposed substrate.
Adopts three upgraded proprietary core technologies with industry-leading 29KHz high charging frequency and high-thickness precise film control for outdoor anti-corrosion energy storage equipment.
Premium powder deposition rate up to 85%, supporting fast 30-second pigment switching and one-click recall of energy storage cabinet dedicated spraying parameters.

Diamond Spray Gun for Energy Storage Cabinets

Core advantages of the manual coating machine

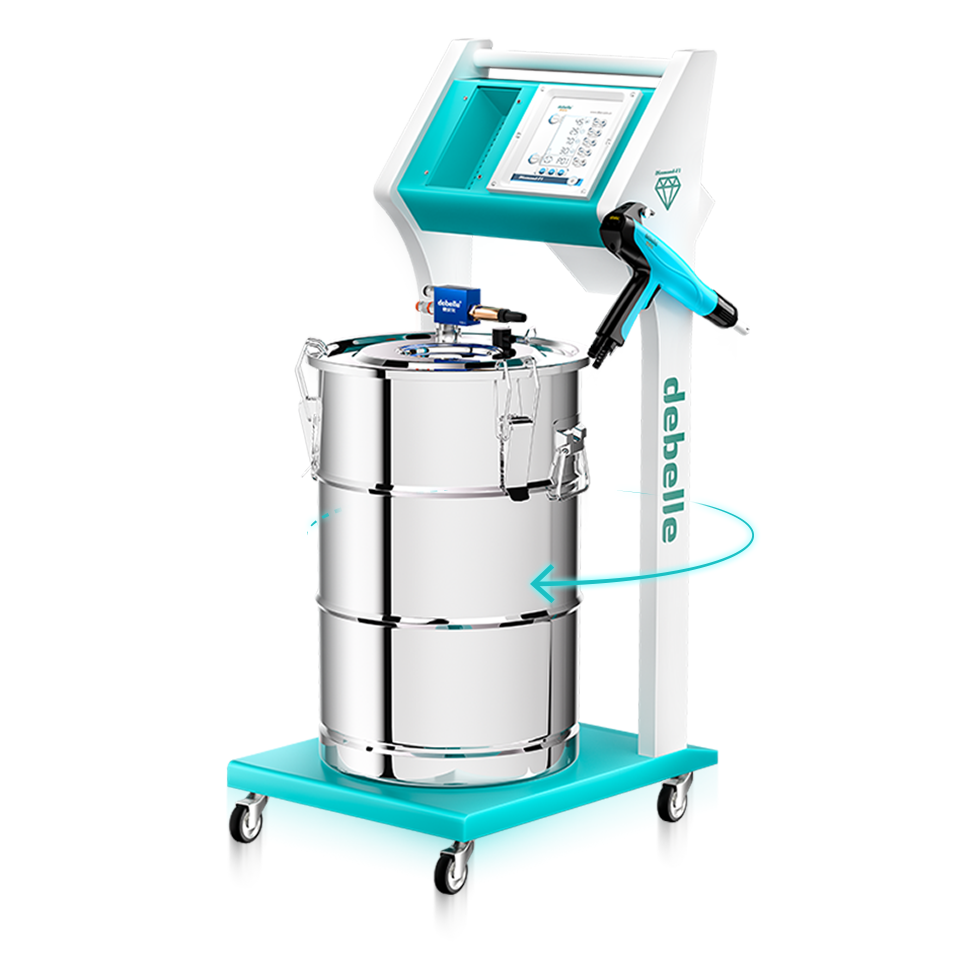

Debelle Diamond F1 powder coating equipment for sale
Debelle Diamond F1 energy storage cabinet powder coating machine elevates large new energy cabinet coating productivity, professionally eliminating Faraday cage dead spots on deep cabinet frames and internal grooves.
Four upgraded core highlights:
1.Top-tier AI intelligent control chip realizes high-volume steady powder output for thick outdoor anti-corrosion coating, eliminating uneven spraying on bulky energy storage cabinet frames.
2.3 custom intelligent spraying recipes calibrated for energy storage housings, power equipment cabinets and new energy metal enclosures, one-click scene switching for energy equipment production lines.
3.29KHz enhanced high charging frequency effectively counteracts Faraday cage effect inside deep cabinet cavities, strengthening powder adhesion for long-term outdoor corrosion resistance and reducing overall powder consumption.
4.30-second ultra-quick color change function plus one-click cabinet coating parameter memory drastically cut downtime during energy storage cabinet batch production and improve long-run production stability.

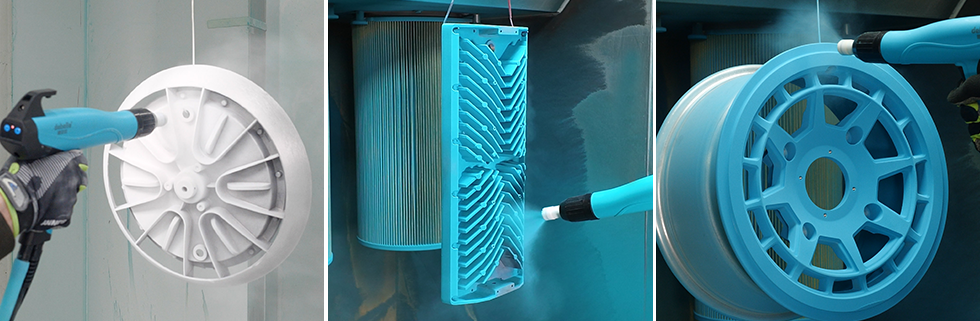

Applicable-scenarios

professional powder coating gun

Technical-Explanation

essenceEssence I Precision Spray PTC Precision Powder Control Technology
PTC Precision Powder Control Technology · Micro scale Intelligent Manufacturing


accurate
Accurate I Film thickness precision CVT constant voltage technology
Intelligent Data Package · One click Accurate Matching


Ruthless
Exclusive research and development of 29KHz high-frequency charging technology
Efficient powder feeding: Exclusive research and development, using 29KHZ charging technology, super strong penetration power, powder penetration groove. Compared with the conventional 16-20KHZ in the industry, the powder charging ability is geometrically improved, with a one-time powder loading rate of up to 80%, significantly reducing powder consumption and directly saving production costs.


Diamond Powder coating Gun


• Essence I Precision Spray PTC Precision Powder Control Technology
• 50 μ m digital valve precision powder pump: equipped with intelligent spraying system, one click operation, achieving high-quality spraying
• Secondary stabilization: Stabilize the airflow and powder flow, eliminate fluctuations, and ensure uniform and consistent powder output

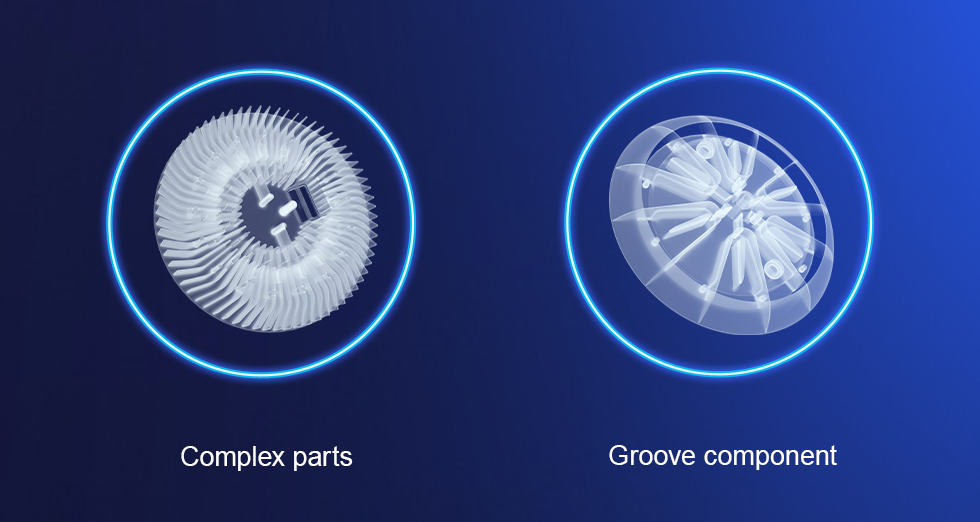

Cooling Fin and Cavity Structure Examples

• Accurate I Film thickness precision CVT constant voltage technology
• Constant voltage: In traditional technology, as the distance between the needle and the workpiece increases, both voltage and current are simultaneously increased to maintain the powder charge. However, at the negative angle position, high current exacerbates the Faraday cage effect, leading to powder repulsion and powder failure. Constant voltage technology, through AI intelligent control chips, coordinates real-time adjustment of current, voltage, and power. It can automatically adjust current and stabilize voltage according to the distance between the gun needle and the workpiece, ensuring stable powder output, uniform atomization, consistent powder feeding, and high quality.
• Energy Fortress: "Stable stabilizer", stabilizes airflow and powder flow, eliminates fluctuations, and effectively improves powder loading

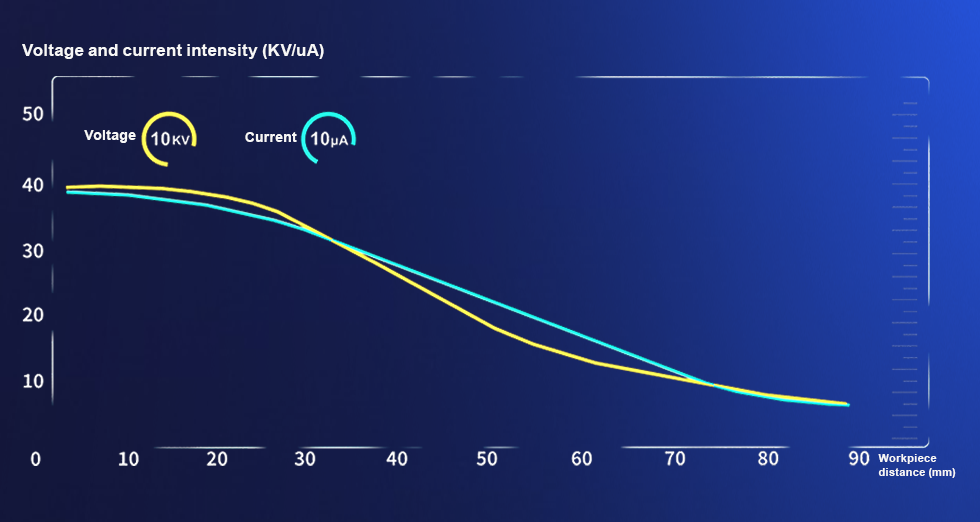

Gun Distance versus Voltage and Current

• Exclusive research and development of 29KHz high-frequency charging technology
• Our self-developed high-efficiency powder feeding system adopts 29KHz high-frequency charging technology with remarkable penetrating power that easily fills deep workpiece grooves. Compared with conventional 16–20KHz equipment prevalent in the industry, its powder charging capacity improves exponentially, enabling a one-time transfer rate of 80%. It greatly reduces powder waste and effectively lowers your overall production material costs.

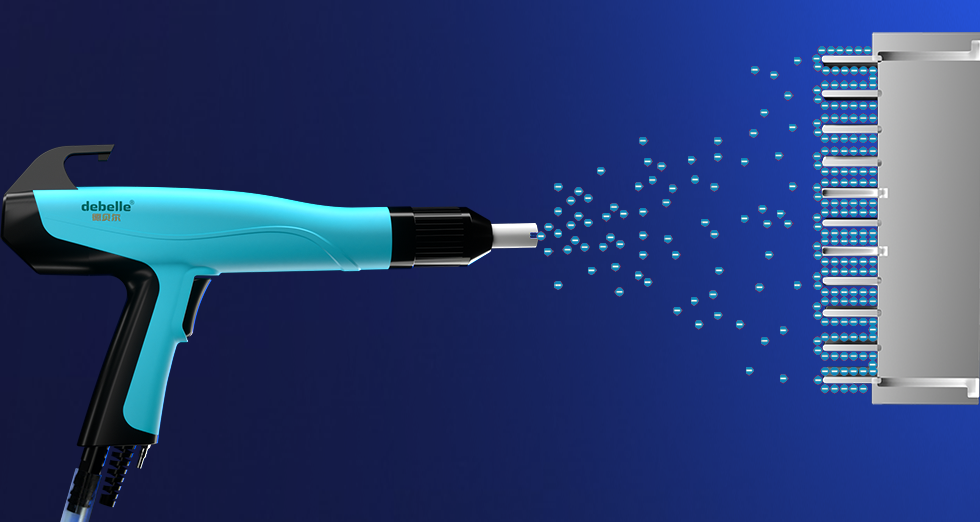

29KHz high-frequency charging technology

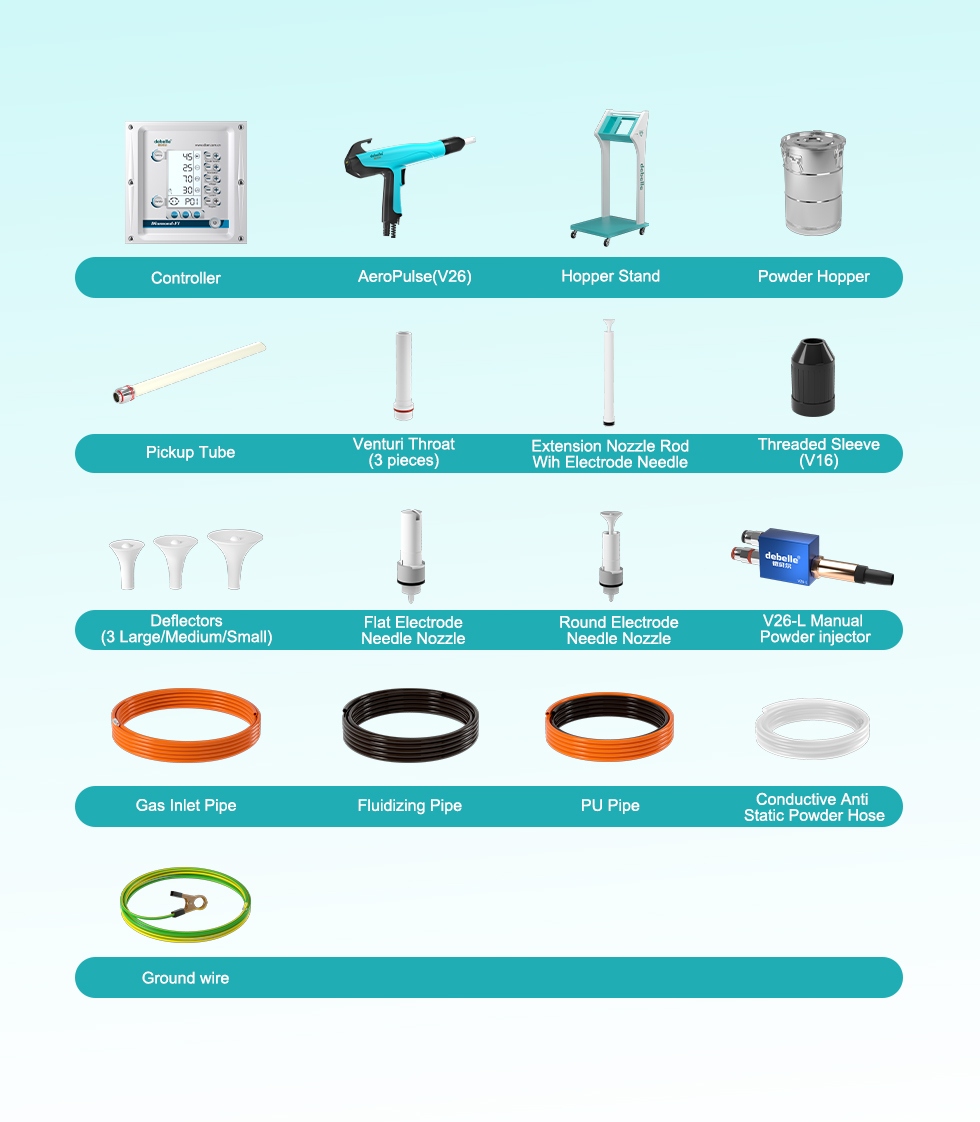

Configuration-List

     Input voltage:  AC100-240V      Display mode:  LED screen
     Output electrostaticvoltage:   0-100kV      Manual singlegun weight:   385g
     Output electrostaticcurrent:   0-100uA      Working pressure:   6-8kg
     Output electrostaticfrequency:   29kHz      Air consumption:   0.2 m³/min
     Powder output:   750g/min      Operating Temperature:   -20°C-65°C
     Adjustment method:   Numerical Control Adjustment      Rated power:   50W
     Packing Specification:   475*540*1080mm      Controller Specification:   175*175*250mm
     Whole machinespecifications:   420*530*1050mm


powder-coating-macine-configuration-list

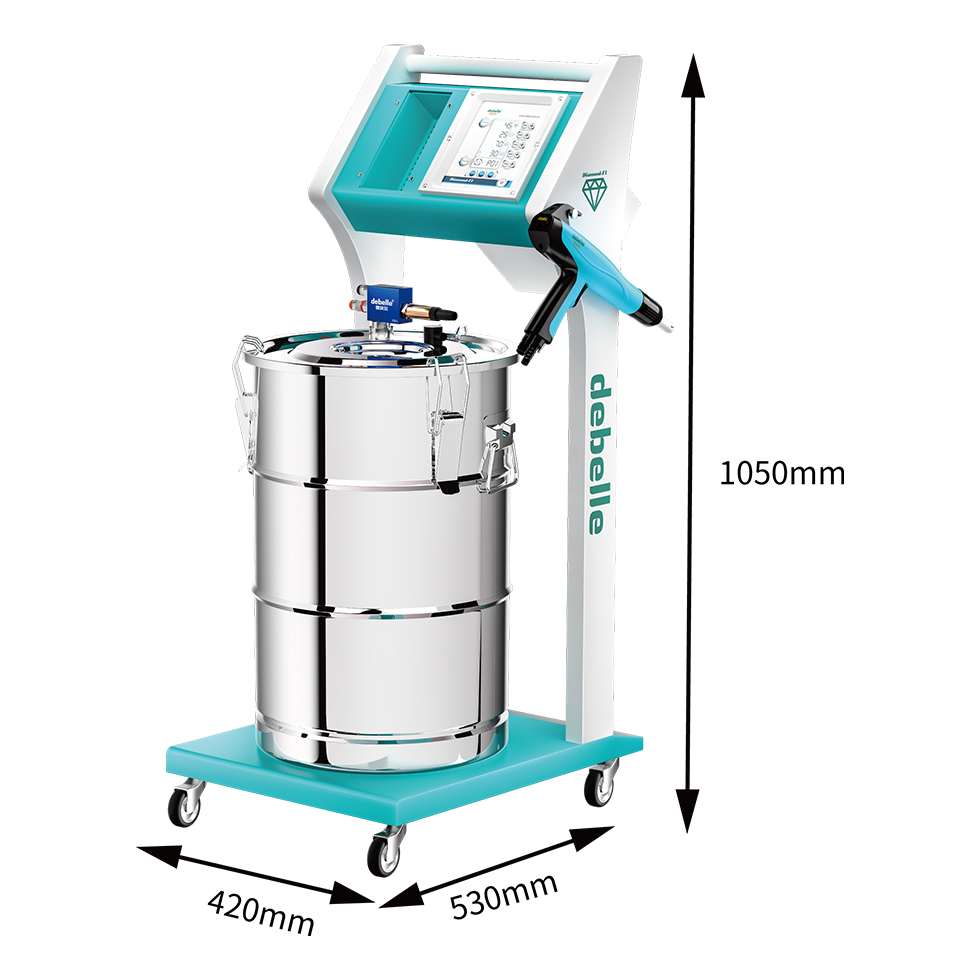

F1-Diamond manual powder coating gun size
