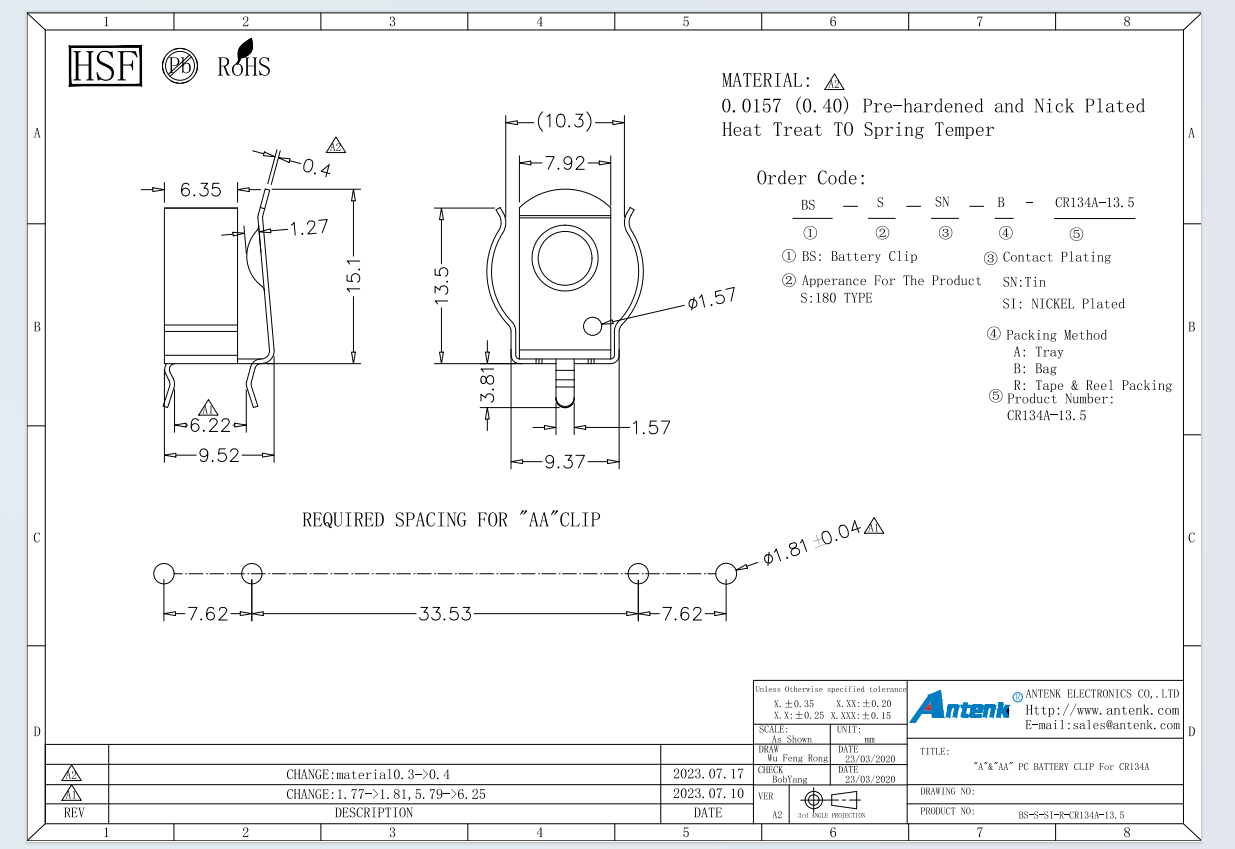

A"&"AA" PC BATTERY CLIP For CR134A

2 month ago

3 0 

5 year

Product details

Huizhou Antenk Electronics Co., Ltd., an IATF16949:2016, ISO9001 and ISO14001 certified manufacturer founded in 2004 with over 250 employees and a 10,000m² facility, proudly presents the “A” & “AA” PC BATTERY CLIP For CR134A. This versatile battery clip is molded from high‑impact, flame‑retardant polycarbonate (PC) – UL94‑V0 rated – offering exceptional toughness, transparency for visual inspection, and excellent dielectric strength. The clip is specifically engineered to securely hold CR134A lithium batteries (17mm diameter × 34mm length) , while also accommodating standard A (17mm × 50mm) and AA (14mm × 50mm) cylindrical cells through a self‑adjusting spring‑loaded positive contact. Manufactured using our 8 Japanese/Taiwanese injection molding machines for the PC housing and 11 high‑speed stamping presses for the nickel‑plated phosphor bronze terminals, the clip delivers a contact resistance below 25 milliohms and a retention force of 120–180g. Key characteristics include a side‑loading battery slot, integrated polarity markings, support for continuous currents up to 3A, an operating temperature range of -20°C to +80°C, and pre‑attached 150mm UL1007 wire leads (red/black) or optional PCB solder tabs. The product is RoHS, REACH compliant and UL recognized (E472792), with 100% automated optical inspection.

Application Scope: This PC battery clip is ideal for portable medical devices (glucose meters, infusion pumps), industrial handheld terminals, wireless sensors, emergency lighting, backup battery packs, DIY electronics, and any device requiring a durable, see‑through battery compartment for CR134A, A, or AA cells – markets where Antenk already supplies customers in the USA, Germany, South Korea, India, Russia, and beyond. Usage Method: The clip comes with pre‑soldered red (positive) and black (negative) 150mm wire leads. Connect the leads to your circuit (solder, screw terminal, or crimp). To insert a CR134A battery: slide the battery positive (+) end first into the open side until the negative spring compresses and the battery seats fully. For A or AA batteries, the same procedure works due to the spring’s automatic length adjustment (44–50mm range). The transparent PC body allows instant polarity verification. To remove, push the battery forward using the exposed negative end or gently pull the positive spring with a non‑conductive tool. Precautions: Do not exceed 3A continuous current; avoid exposing the PC housing to strong solvents (acetone, gasoline); do not use with damaged or leaking batteries; ensure wire leads are strain‑relieved; operate within -20°C to +80°C range. Advantages Over Competitors: Unlike competitors who sell separate clips for each battery size (CR134A, A, AA), Antenk’s universal clip handles all three with one design – reducing inventory costs by up to 66%. Competitors often use brittle ABS or polystyrene that cracks under impact; Antenk uses genuine polycarbonate (PC), which is 10x more impact‑resistant and self‑extinguishing. While others require 10,000+ MOQ for multi‑size tooling, Antenk offers low MOQs (1,000 units) with no tooling fees for standard wire lengths or colors. Our IATF16949 certification ensures automotive‑grade quality. Additionally, our 48‑hour salt spray testing and 10,000‑cycle insertion/removal validation guarantee long‑term reliability. The transparent housing also allows immediate visual detection of battery corrosion or leakage – a critical safety feature in medical and industrial applications.

Antenk’s vertical integration delivers consistent quality for the “A” & “AA” PC battery clip. Process flow: (1) In‑house mold design and fabrication using our 250+ plastic injection molds (dedicated multi‑size clip mold with precision sliding core); (2) Precision injection molding on 8 Japanese/Taiwanese machines using clear polycarbonate (PC) resin – the material is pre‑dried to prevent bubbles and molded at 280–300°C; (3) High‑speed stamping of positive and negative terminals on 11 Japanese/Taiwanese presses using 0.25mm phosphor bronze strip; (4) Terminal plating: nickel (3μm) with optional tin or gold for medical versions; (5) Automated wire lead preparation: strip, tin, and solder to terminals (UL1007 24AWG, red/black, 150mm); (6) Semi‑automatic assembly: insert terminals into PC housing, perform 100% pull‑test on wires (minimum 5kgf retention); (7) Battery insertion/withdrawal force testing per EIA-364-13 using CR134A, A, and AA simulators; (8) Contact resistance and insulation resistance testing (dielectric strength 500V AC); (9) 48‑hour salt spray corrosion testing; (10) Final QC with lot traceability and dimensional report. Our laboratory houses 20+ testing devices including profile projectors, environmental chambers, and tensile testers. With 250+ employees, 18+ mold‑making machines, and 180+ automatic assembly machines, we provide free samples, complete 2D/3D CAD drawings, and 24‑hour technical support. Contact Antenk today for a quotation – we typically respond within 4 hours and ship PC battery clip samples within 3 days. Ask about our volume discounts (5,000+ units) and custom options (different wire lengths, colored PC housings, gold plating for medical devices, or solder tab versions). With 70% of our products exported worldwide and 18 years of experience, Antenk is your trusted partner for durable, multi‑size battery clip solutions.

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in connector and cables. And we export e our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

we can support ODM and OEM service here, we have strong R&D team in Atkconn group.

Q: How many different types of products your company manufactures?

A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
