Alternative to SUN Brand Cartridge Valves CBAG LKN

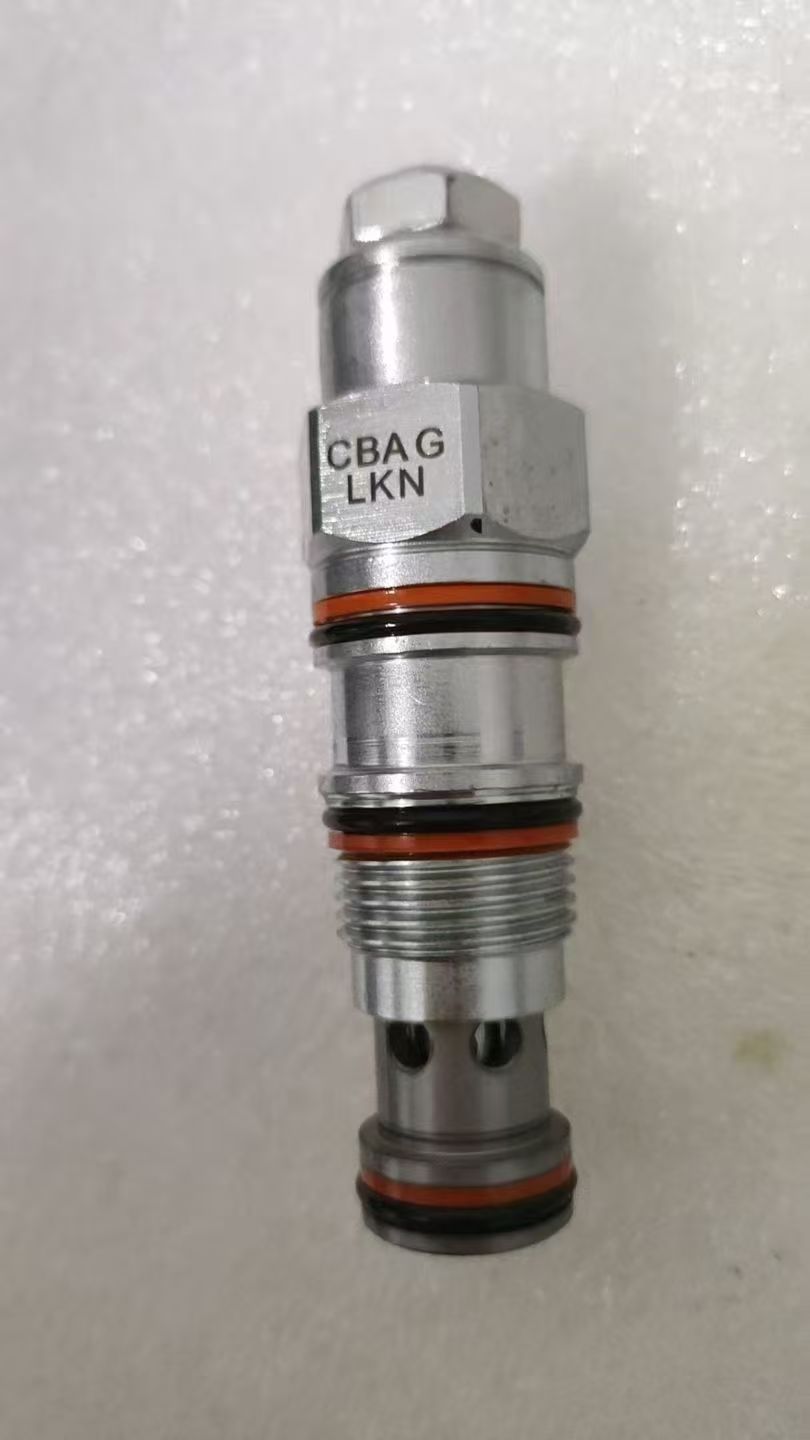

SUN CBAG-LKN Standard Counterbalance Valve

CBAG-LKN is a 3-port non-leak pilot operated counterbalance valve produced by SUN Hydraulics. It is designed to avoid load runaway and over-speed movement, also known as load holding valve or back pressure valve.

1. Basic Parameters

- Function: 3-port, external drain free, pilot assisted counterbalance valve

- Cavity size: T-17A

- Rated flow: 60 gpm / 240 L/min

- Pilot ratio: 2.3:1 standard version

- Max working pressure: 5000 psi / 345 bar; Recommended working pressure: 3850 psi / 270 bar

- Pressure adjustment range: 70–175 bar (1000–2500 psi); Factory default setting: 140 bar

- Check valve cracking pressure: 1.7 bar (25 psi)

- Seal material: NBR, compatible with mineral hydraulic oil

- Installation torque: 41–47 Nm (30–35 lbf·ft)

- Weight: Approx. 0.23 kg

2. Working Principle

- Downward load movement: Pilot pressure at port 3 reduces cracking pressure of main valve, releasing load steadily and preventing overspeed runaway.

- Upward load lifting: Free flow passes through check valve from port 2 to port 1 with low pressure drop.

- Sealing feature: Back pressure at port 2 superimposes on preset pressure, external leakage free design.

3. Model Code Definition

- CBAG: 3-port non-leak counterbalance valve with 2.3:1 pilot ratio, standard flow capacity

- L: Long style, fits T-17A cavity

- KN: NBR seal, standard factory pressure setting

4. Main Interchangeable Alternative Models

Domestic Cost-effective Replacements, T-17A Cavity Compatible

- HYDFORCE: CV12-23A, 2.3:1 pilot ratio, 60 gpm flow rate

- YOIAN: CBG-23-LKN, fully interchangeable

- Domestic replicated model: CBAG-LKN, 12-month warranty

Imported Equivalent Replacements with Equivalent Performance

- Parker: C17-23, 3-port, 2.3:1 pilot ratio, T-17A cavity

- Bucher: CBV-230, 240 L/min, 350 bar rated pressure

- Eaton Vickers: DGMPC-3-ABK-BAK-20, equivalent performance

5. Key Interchange Requirements

- Cavity specification must be T-17A for proper installation

- Pilot ratio 2.3:1, determines load control responsiveness

- Flow rating: 60 gpm / 240 L/min

- Uniform installation dimension: 7/8 hexagon and identical thread size

6. Application Scope

- Construction machinery: Cranes, aerial work platforms, excavators, loaders

- Sanitation vehicles: Garbage trucks, dump trucks, truck-mounted cranes

- Mining machinery: Drilling rigs, underground hydraulic systems

- Industrial equipment: Lifting platforms, conveyors, high-pressure hydraulic power units
