Knitted Mesh production

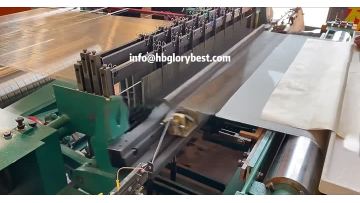

Glory owns more than 20 different types of weaving machine, which can produce with the wire diameters ranging from 0.08mm to 0.3mm,the max.width is 30 inch, The material: stainless steel wire, copper wire, polyethylene wire, Nylon wire etc.The molded mesh work can be rolled to wave type. And there are kinds of materials for the clients to choose.

Knitted wire mesh is a mesh work weaved in a special way. It's not only one of the mostly used component in wire-mesh demister manufacturing and other separation engineering , but also is widely used in automobile industry. With the continuous development of industry, people know more and more about the applicable fields and application scope of knitted fabric.

Stainless steel – most commonly used in automotive, industrial applications EMI/RF Shielding for excellent corrosion and temperature resistance.
Inconel – High temperature applications, up to 2300 F
Aluminium – for numerous industrial, aerospace and applications.
Copper – in round or flat wire for welding protection pads, pest control, plastic industry cleaning and nickel filters.

Recommendations:

Below is a list of our recommendations based on various knitted wire mesh needs.
* For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
* For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
* For maximum flexibility, we recommend the 0.006” wire diameter.
* For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
* For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.
