Drop Forged Turnbuckle HDG | ASTM F1145 Utility Hardware

Precision Tensioning for Heavy-Duty Infrastructure.

The Yokelink Drop Forged Open Body Turnbuckle is engineered to provide reliable, high-capacity linear tension adjustment for overhead transmission lines, antenna masts, and heavy industrial rigging systems. They are the standard choice when linemen need to eliminate slack and finely tune the tension of steel guy wires.

Manufactured to ASTM F1145 Specifications:

Never compromise on critical load-bearing hardware. Yokelink turnbuckle bodies and end fittings are integrally drop-forged from high-yield carbon steel in strict accordance with ASTM F1145 (Type 1, Form 1). This specialized forging technique ensures an aligned grain structure, delivering superior fatigue resistance and ultimate breaking strength.

Smooth Operation & Severe Weather Defense:

Featuring precision-machined Left-Hand (LH) and Right-Hand (RH) unified threads, our turnbuckles allow for seamless, bind-free rotation during installation. The entire assembly—including the body, rods, and pins—is fully Hot Dip Galvanized to ASTM A153 standards, providing a thick zinc armor that resists atmospheric corrosion for decades.

Key Technical Features of Turnbuckle

Standard Compliant: Manufactured strictly per ASTM F1145 specifications.

Premium Forging: Drop-forged steel bodies offer higher safe working loads than cast options.

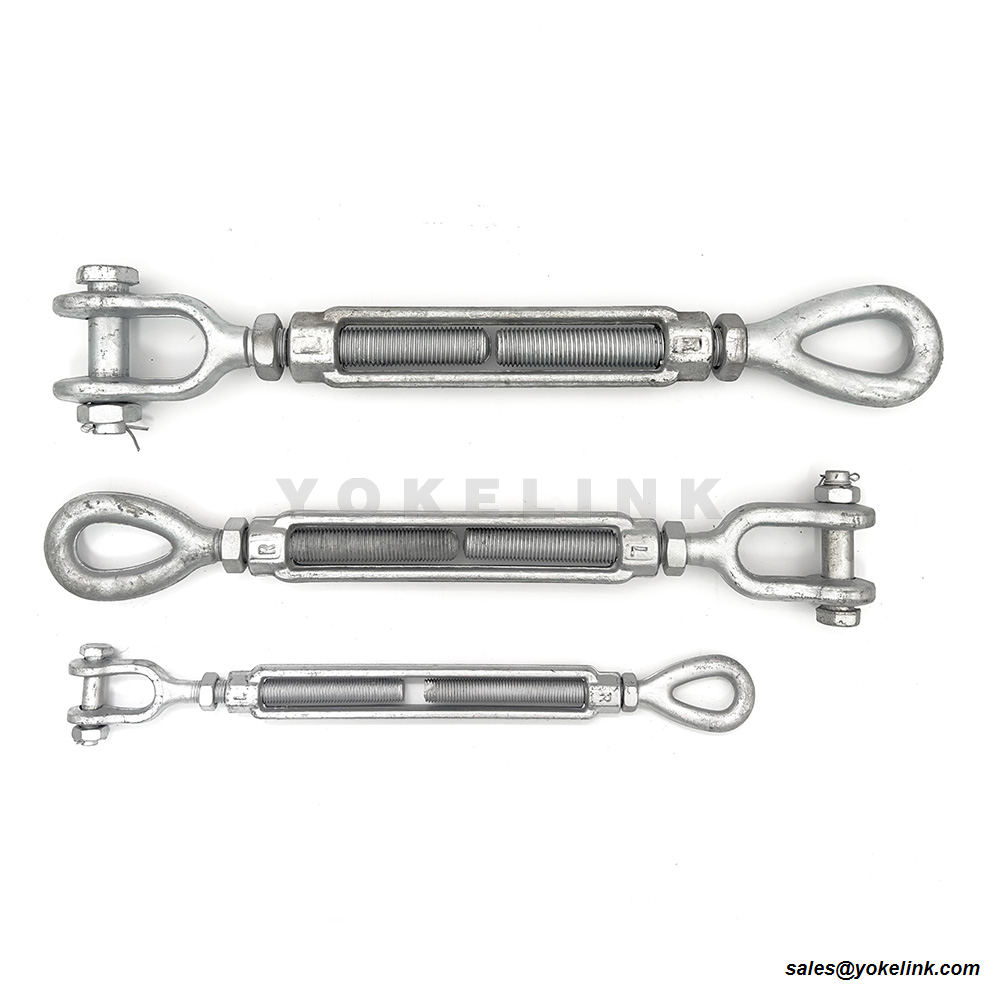

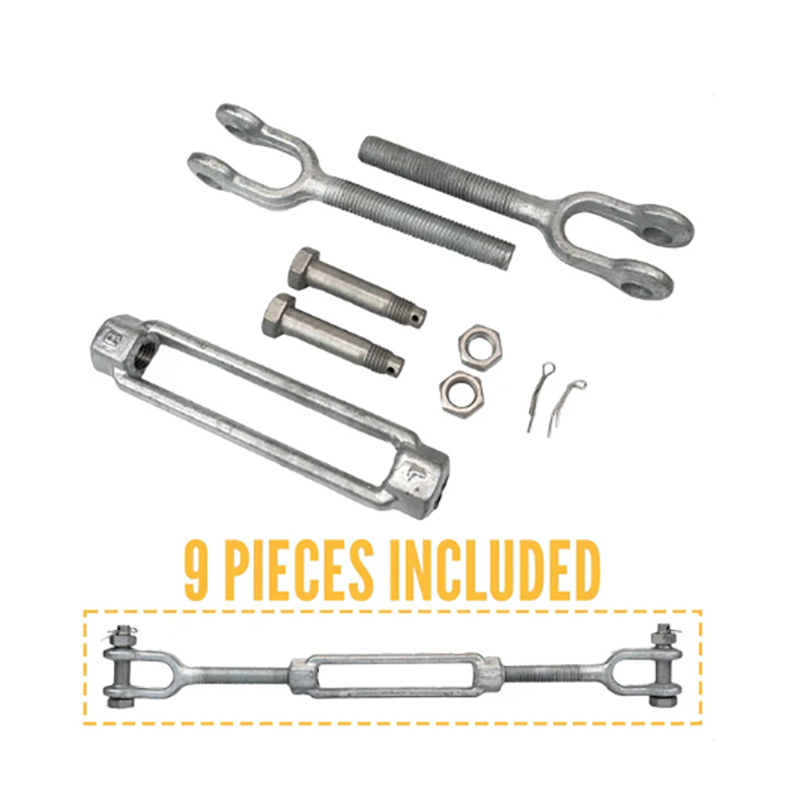

End Fittings Availability: Available in Eye & Eye, Jaw & Eye, and Jaw & Jaw configurations.

Corrosion Resistance: Heavy Hot Dip Galvanizing (HDG) exceeds ASTM A153 requirements.

Safety Factor: Engineered with a standard 5:1 safety factor for critical rigging and guying.

Production Process of Turnbuckle

High-quality steel materials are cut into blanks and forged into body, eye bolt and hook parts. Threads are precisely processed on connecting ends, then workpieces are quenched and tempered to improve strength. All components are hot-dip galvanized against corrosion. Dimensional, tensile and assembly tests are carried out before final packaging.

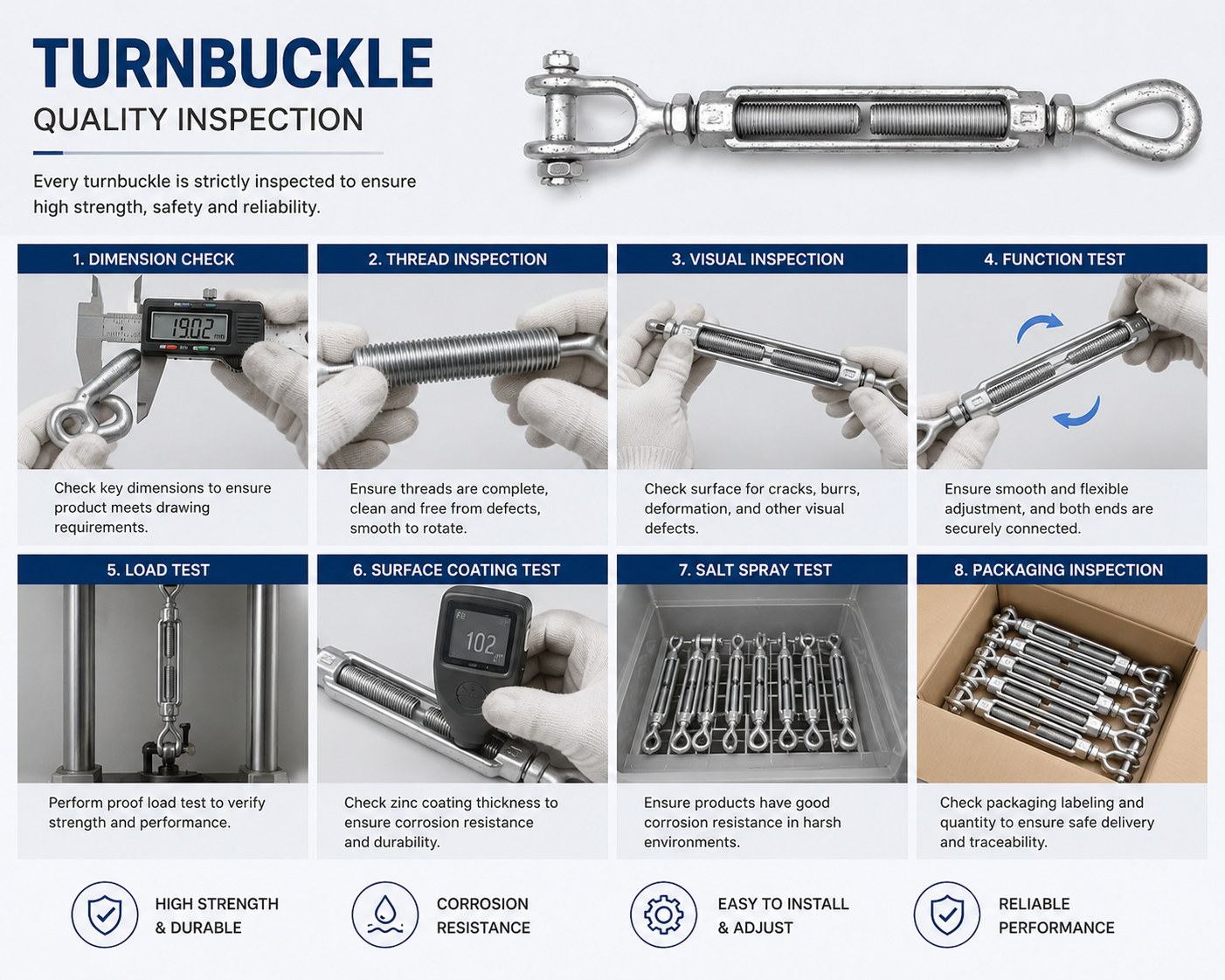

Yokelink Quality Control and Testing Equipments for Turnbuckle

We don't just reference FF-C-450 standards; we also verify them in practice: each batch of products undergoes destructive tensile testing in our internal laboratory to ensure load performance exceeds the minimum requirements of ASME B30.26. IEEE C135.2 or CSA C83 specification; we use optical comparators to ensure the geometric accuracy of chamfered tips and rolled threads, enabling convenient on-site installation; at the same time, we conduct comprehensive testing on Rockwell hardness, coating thickness, and other parameters, and each shipment is accompanied by the original manufacturer's material specifications (MTRs) and quality inspection reports, with all data traceable back to the raw material furnace number.

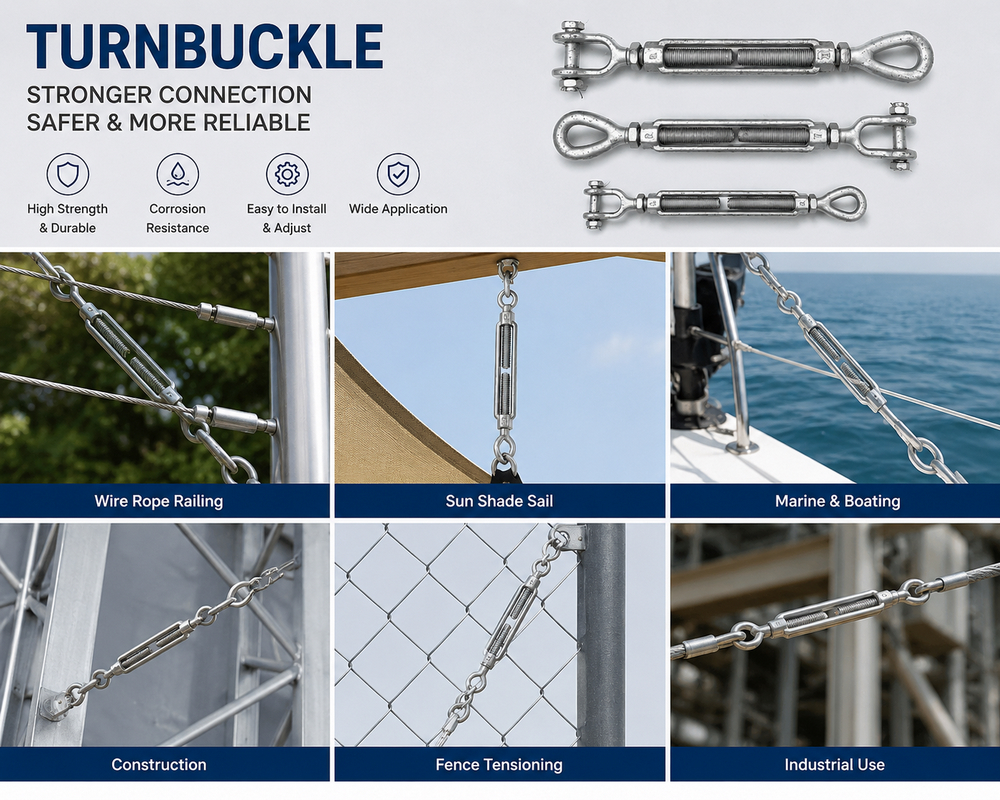

Application of Turnbuckle

Turnbuckle serves as adjustable tension connector for power towers, guy wires and hoisting equipment. It flexibly adjusts rope tightness to keep stable pulling force. High strength and anti-rust property suit outdoor harsh conditions. Widely used in line fixing, building reinforcement and engineering tension adjustment.

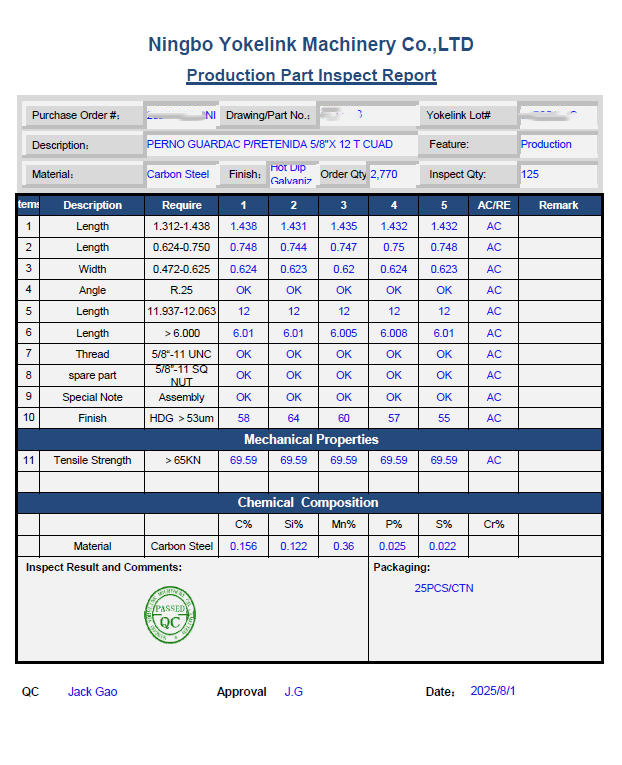

Yokelink Product Quality Inspection Report

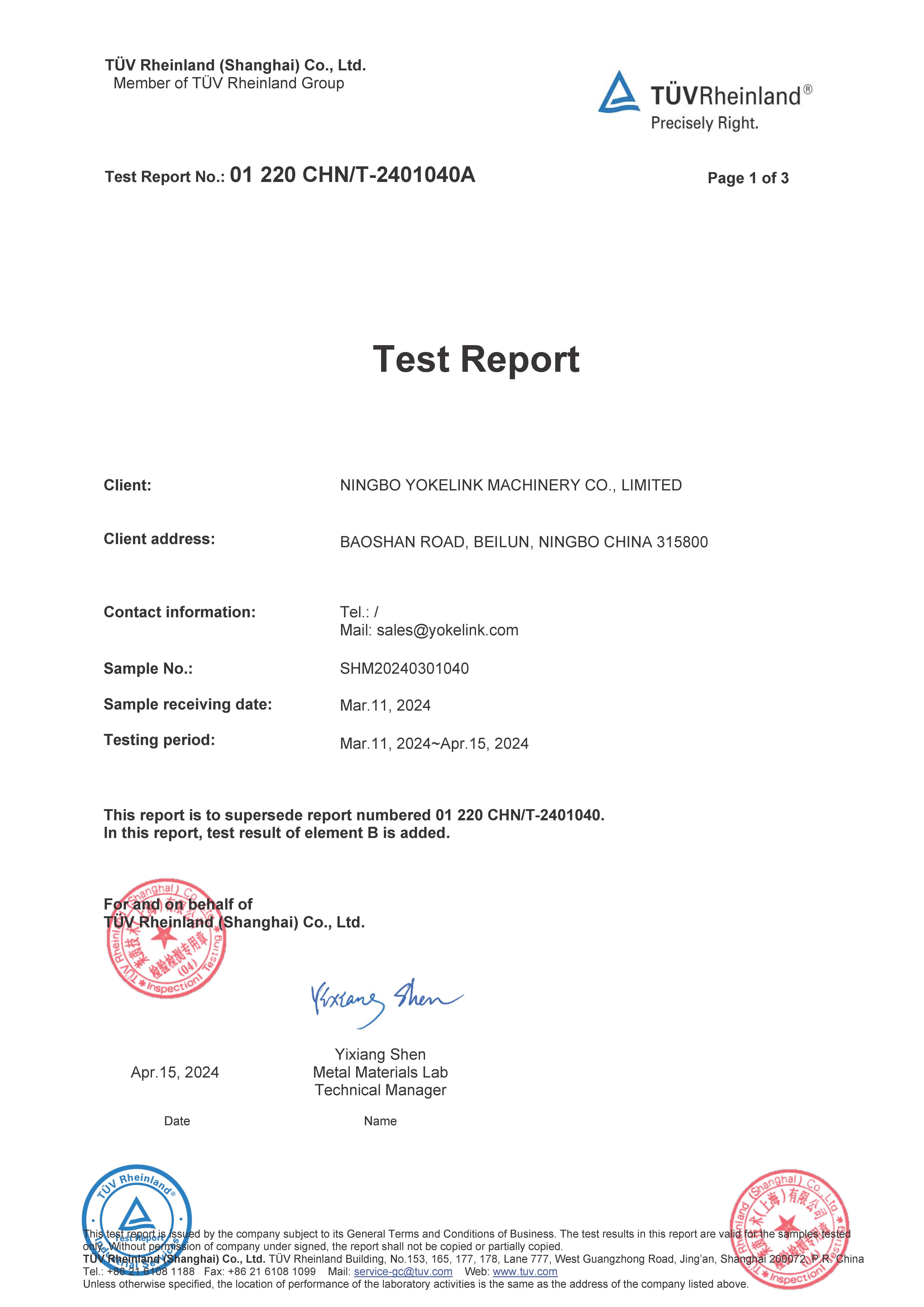

We provide comprehensive inspection services for machine bolts, including SGS test bolts and formal Production Part Inspect Report (PPIR). The SGS tests verify the bolts’ compliance with international standards like ASTM A307 and IEEE C135.80, covering mechanical properties and corrosion resistance. The PPIR details all inspection items, ensuring each machine bolt meets dimensional, performance and quality requirements, providing reliable quality assurance for overhead line and industrial applications.

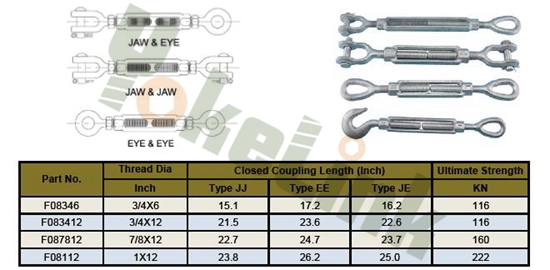

Technical Specifications of Turnbuckle

Part No.	Thread Dia &Take-up	Closed Coupling Length (Inch)			Ultimate Strength
Part No.	Inch	Type JJ	Type EE	Type JE	KN
F08346	3/4X6	15.1	17.2	16.2	116
F083412	3/4X12	21.5	23.6	22.6	116
F087812	7/8X12	22.7	24.7	23.7	160
F08112	1X12	23.8	26.2	25	222

Cross Reference (Industry Equivalents):

Thread Dia &Take-up	Part No.	HUBBELL	MACLEAN
Inch	Part No.	HUBBELL	MACLEAN
3/4X6	F08346	TB34XX6BNK	G-226-N-3/4X6
3/4X12	F083412	TB34XX12BNK	G-226-N-3/4X12
7/8X12	F087812	TB78XX12BNK	G-226-N-7/8X12
1X12	F08112	TB1XX12BNK	G-226-N-1X12

Frequently Asked Questions (FAQ)

Q1. What is the working principle of a turnbuckle?

A:A turnbuckle is a mechanical tensioning device used to adjust the tension or length of wire rope, cable, chain, or rod assemblies. It works by rotating the central body, which simultaneously pulls both threaded end fittings inward or outward. This allows precise tension adjustment without disconnecting the assembly.

Q2. What materials are commonly used for turnbuckles?

A:Turnbuckles are typically manufactured from:Carbon Steel — Economical and widely used for general utility applications.Hot-Dip Galvanized Steel — Provides corrosion resistance for outdoor and utility line applications.Stainless Steel 304/316 — Ideal for marine, coastal, and corrosive environments due to superior rust resistance.Forged Alloy Steel — Used for heavy-duty lifting and high-load industrial applications.Material selection depends on load requirements, environmental exposure, and industry standards.

Q3. What is the difference between forged and cast turnbuckles?

A:Forged Turnbuckles Higher tensile strength Better grain structure Improved fatigue resistance Recommended for critical load-bearing applications Cast Turnbuckles Lower production cost Suitable for light-duty applicationsLess mechanical strength compared with forged types Forged turnbuckles are generally preferred in power line, rigging, and tension industrial systems.

Q4. How is the safe working load (SWL) of a turnbuckle determined?

A:The Safe Working Load (SWL) is determined based on:Material strength Thread size and typeBody design Manufacturing process Proof load and ultimate breaking load testing

Most industrial turnbuckles are designed with a safety factor ranging from 3:1 to 5:1 depending on application standards such as ASTM, ASME, or DIN specifications.

Users should never exceed the rated working load during installation or operation.

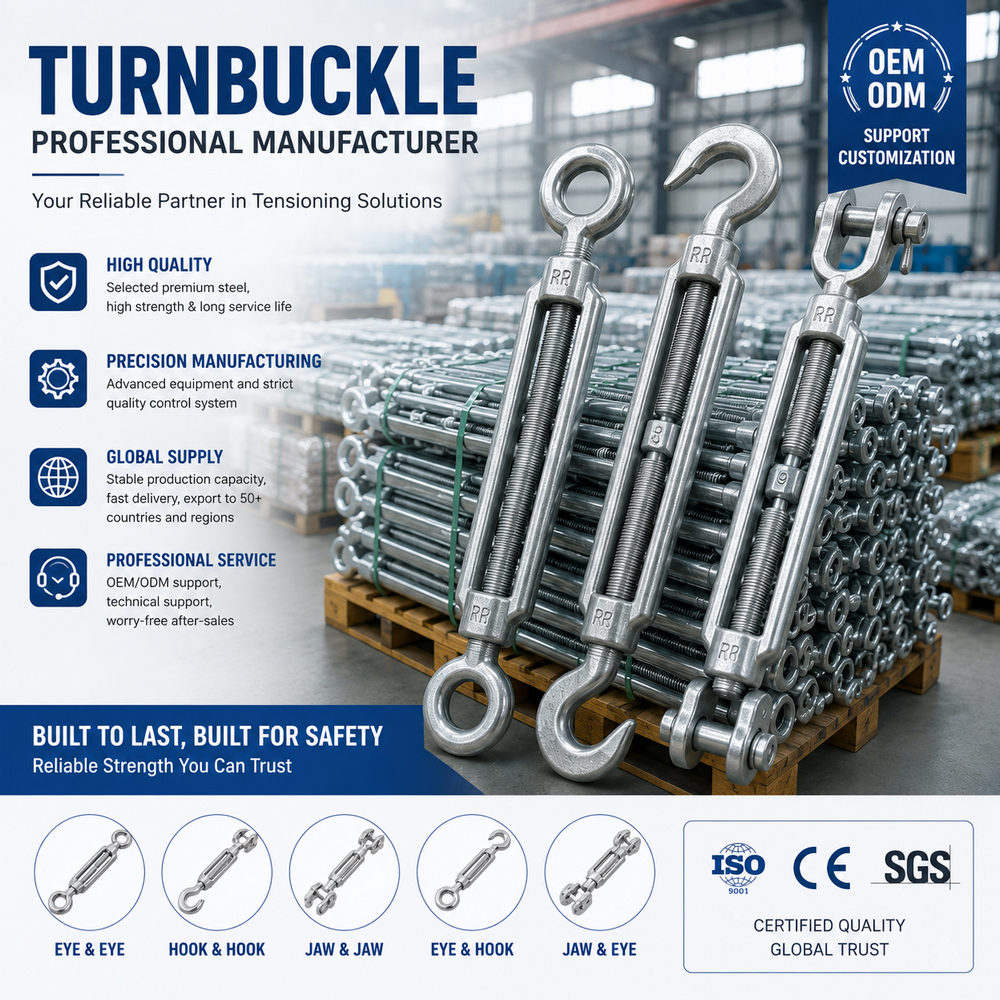

Q5. What are the common end fitting types for turnbuckles?

A:Common turnbuckle end fittings include:

Eye & Eye — Suitable for permanent fixed connections

Hook & Hook — Easy temporary installation and adjustment

Jaw & Jaw — Provides secure bolted connections for heavy-duty applications

Eye & Hook — Combination design for mixed installation requirements

Stub End / Threaded Rod Ends — Used in custom engineering assemblies
