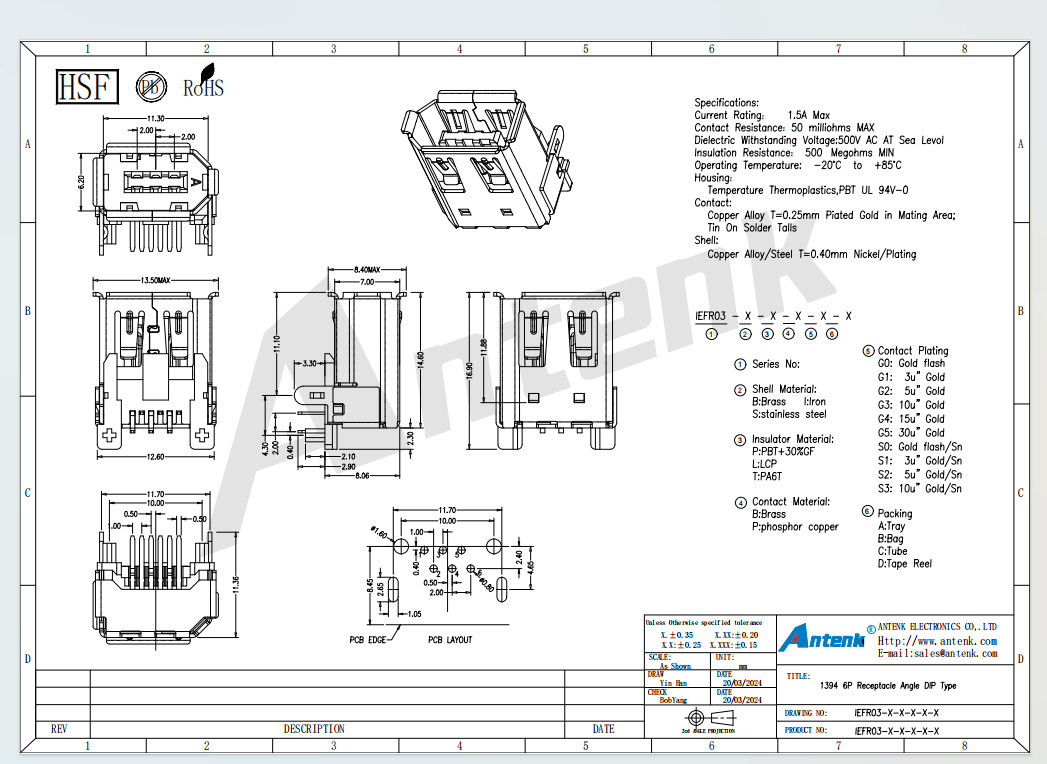

1394 6P Receptacle Angle DIP Type

2 month ago

7 0 

5 year

Product details

Huizhou Antenk Electronics Co., Ltd., an IATF16949:2016, ISO9001:2015 and ISO14001:2015 certified high-tech enterprise founded in 2004 with over 300 employees and a 10000 square meter Huizhou facility, presents the 1394 6P Receptacle Angle DIP Type. This IEEE 1394 FireWire connector is a 6 position right angle through hole receptacle designed for high speed data and streaming video transmission up to 400 Mbps to 800 Mbps depending on cable specification. The connector features a robust metal shell for EMI shielding and mechanical durability, with a polarized housing to prevent misinsertion. The contacts are stamped from phosphor bronze with selective gold plating of 0.8 microns on the mating area and tin plating on the solder tails for reliable wave soldering. Key characteristics include contact resistance below 30 milliohms, insulation resistance of 1000 megohms minimum, dielectric withstanding voltage of 500V AC for 1 minute, current rating of 1.5A per contact, and an operating temperature range from -40 to +85 degrees Celsius. The angled DIP design allows the connector to mount parallel to the PCB edge, saving board space and facilitating cable management. The product is RoHS and REACH compliant and UL recognized under E472792.

This 1394 6P right angle receptacle is ideal for legacy and specialized applications requiring FireWire connectivity, including digital video cameras, external hard drives, audio interfaces, industrial machine vision systems, medical imaging equipment, and test instrumentation – markets where Antenk already serves customers including Flextronics, Foxconn, and Fortune 500 companies across the USA, Germany, South Korea, India, Russia, and beyond. Usage method: solder the six through hole pins and the two metal shell grounding legs to the PCB using wave soldering (260 degrees Celsius peak) or hand soldering. The angled orientation allows the connector to be mounted on the edge of the PCB, with the mating face parallel to the board edge. Insert the IEEE 1394 6 pin cable plug into the receptacle until the latch clicks. To disconnect, press the release button on the plug and pull. Precautions: do not exceed 1.5A per contact; avoid excessive force during mating and unmating (maximum insertion force 35N); ensure proper grounding for EMI performance; operate within -40 to +85 degrees Celsius. Advantages over competitors: unlike competitors who use thin metal shells that deform after repeated insertions, Antenk uses a reinforced stainless steel shell rated for 5000 mating cycles. Competitors often have inconsistent pin coplanarity leading to soldering defects; Antenk maintains pin coplanarity within 0.1mm using precision molding and assembly fixtures. While others require 10000 plus MOQ for 1394 tooling, Antenk offers low MOQs of 1000 units with no tooling fees for standard 6P right angle configurations. Our IATF16949 certification ensures automotive grade quality, and our in house 40 plus lab test devices including XRF, environmental chambers, and insertion force testers guarantee every batch meets IEEE 1394 mechanical and electrical specifications.

Antenks vertical integration delivers consistent quality for the 1394 6P right angle DIP receptacle. Process flow: first, in house mold design using our 380 plus plastic injection molds for the housing and contact carrier. Second, injection molding on 10 Japanese Taiwanese 35 to 120 ton machines using high temperature PBT or nylon 6/6 rated UL94 V0 with melt temperature 270 degrees Celsius, mold temperature 85 degrees Celsius, cycle time 15 seconds. Third, high speed stamping of six contacts and metal shell on 9 Japanese Taiwanese presses using 0.25mm phosphor bronze for contacts and 0.30mm stainless steel for the shell. Fourth, selective plating: gold of 0.8 microns on contact mating area, nickel underplate, and tin on solder tails. Fifth, automated assembly: insert contacts into housing, attach metal shell, and bend contacts to right angle configuration using precision forming stations. Sixth, 100 percent electrical continuity and contact position inspection using automated vision systems. Seventh, contact resistance testing per EIA 364 06 below 30 milliohms. Eighth, insulation resistance and dielectric withstanding voltage testing. Ninth, insertion and withdrawal force testing (max 35N insertion, min 10N retention). Tenth, 48 hour salt spray corrosion testing on sample basis. Finally, final QC with lot traceability and dimensional report including coplanarity measurement. Our laboratory houses more than 40 testing devices including profile projectors, XRF, environmental chambers, and force gauges. With over 300 employees, more than 18 mold making machines, and over 180 automatic assembly machines, we provide free samples, complete 2D and 3D CAD drawings, and 24 hour technical support. Contact Antenk today for a quotation – we respond within 4 hours and ship 1394 6P right angle receptacle samples within 3 days. Ask about volume discounts starting at 5000 units and custom options such as different plating thickness, shell finish, or modified pin length. With 70 percent of our products exported to over 60 countries and 18 years of innovation, Antenk is your trusted partner for IEEE 1394 connector solutions.

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in connector and cables. And we export e our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

we can support ODM and OEM service here, we have strong R&D team in Atkconn group.

Q: How many different types of products your company manufactures?

A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
