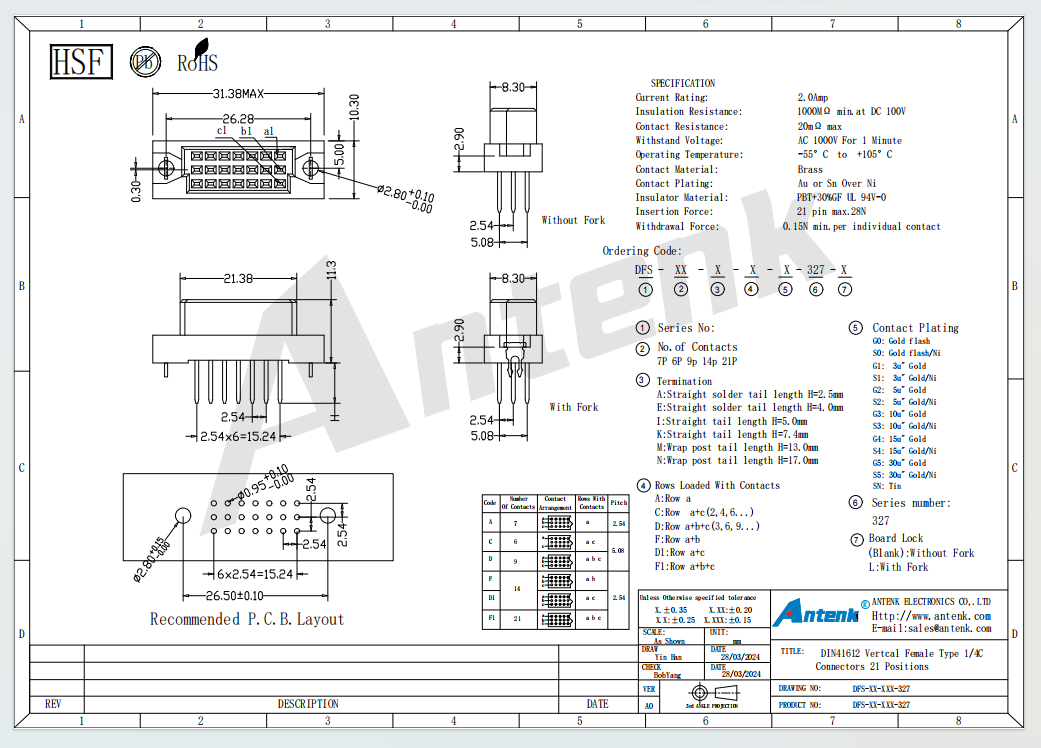

DIN1612 Vertcal Female Type 1/4C Connectors 21 Positions -327

2 month ago

5 0 

5 year

Product details

The Antenk DIN 1612 Vertical Female Type 1/4C Connector is a high-reliability board-to-backplane interconnect solution engineered for 19-inch rack systems, industrial automation, telecommunications, and measurement equipment. Conforming strictly to the DIN 41612 / IEC 60603-2 European standard, this 21-position vertical female connector delivers robust signal and power transmission in modular card-and-rack architectures. The connector features a precision-engineered 2.54mm contact pitch across its 21 contacts, providing an optimal balance between connection density and ease of PCB routing. Designed for vertical mounting on backplanes or daughter cards, the Antenk DIN 1612 ensures seamless mating with standard DIN 41612 male plug connectors. Key functional capabilities include operating temperature range from -55°C to +125°C, current rating up to 2.0A per contact, contact resistance as low as 20mΩ maximum, and insulation resistance exceeding 1000MΩ at 500V DC. Withstanding voltage of 1000V AC for one minute ensures reliable isolation and electrical safety even in demanding industrial environments. Whether used in PLCs, distributed control systems, industrial computers, or telecom base station equipment, the Antenk DIN 1612 delivers consistent, maintenance-friendly connectivity that system designers have trusted for decades.

The Antenk DIN 1612 Vertical Female Type 1/4C Connector distinguishes itself through precision manufacturing, premium materials, and rigorous quality control. The connector body is molded from high-temperature PBT+30%GF thermoplastic, rated UL94V-0 for flame retardancy, ensuring dimensional stability and reliable insulation even under thermal cycling stress. Contacts are fabricated from high-performance phosphor bronze, selected for its outstanding combination of electrical conductivity, fatigue resistance, and spring memory. After stamping, contacts undergo selective gold or tin plating over a nickel underplate, providing excellent corrosion resistance, consistent contact interface performance, and superior solderability for through-hole assembly processes. All active contact areas are selectively plated to ensure optimal electrical performance over the connector‘s rated 400 to 500 mating cycles.

Antenk’s vertically integrated manufacturing capability delivers unmatched quality assurance. The company operates a comprehensive production ecosystem encompassing in-house stamping, injection molding, assembly, and testing under one roof. With 11 high-speed precision stamping presses, 250+ connector molds, 8 precision injection molding machines, and over 180 automated assembly systems, each Antenk DIN 1612 connector undergoes stringent quality checks at every production stage to ensure consistent fit, form, and function. The facility is certified to ISO9001, ISO14001, and IATF16949:2016 automotive quality management standards, with UL certification (E472792) for many products and full compliance with EU RoHS and REACH environmental directives.

The Antenk DIN 1612 Vertical Female Type 1/4C connector finds broad application across industrial, telecom, medical, transportation, and aerospace systems. Typical deployments include programmable logic controllers (PLCs), VMEbus and NuBus systems, Eurocard backplanes, railway signaling equipment, and military-grade electronics. The 21-position configuration is ideal for applications requiring moderate signal density with generous spacing for reliable PCB layout and field servicing. Installation is straightforward: the vertical female connector mounts directly onto the backplane PCB via through-hole solder termination, with coding options available to prevent mismating. When mating with the corresponding male plug, the connector‘s precision contact geometry ensures controlled insertion force with separating force exceeding 0.15N per pin and mating force below 90N, providing tactile feedback and secure engagement without excessive mechanical strain.

Antenk offers distinct competitive advantages over established European and American manufacturers. While maintaining performance parity in key electrical and mechanical parameters, Antenk delivers these DIN 41612 connectors at pricing typically 15-20% below major brand alternatives, with lead times compressed from months to just 2-3 weeks. The company‘s “24-hour response mechanism” ensures rapid technical support, emergency order handling, and custom configuration services. With over 70% of products exported to markets spanning the United States, Germany, the United Kingdom, Italy, South Korea, India, Israel, Russia, and Southeast Asia, Antenk has earned a global reputation for quality, reliability, and responsive service. Whether you are designing new industrial equipment or seeking a cost-effective, high-performance alternative to traditional DIN connector sources, the Antenk DIN 1612 Vertical Female Type 1/4C Connector – 21 Positions delivers the precision, durability, and value your project demands.

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in connector and cables. And we export e our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

we can support ODM and OEM service here, we have strong R&D team in Atkconn group.

Q: How many different types of products your company manufactures?

A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
