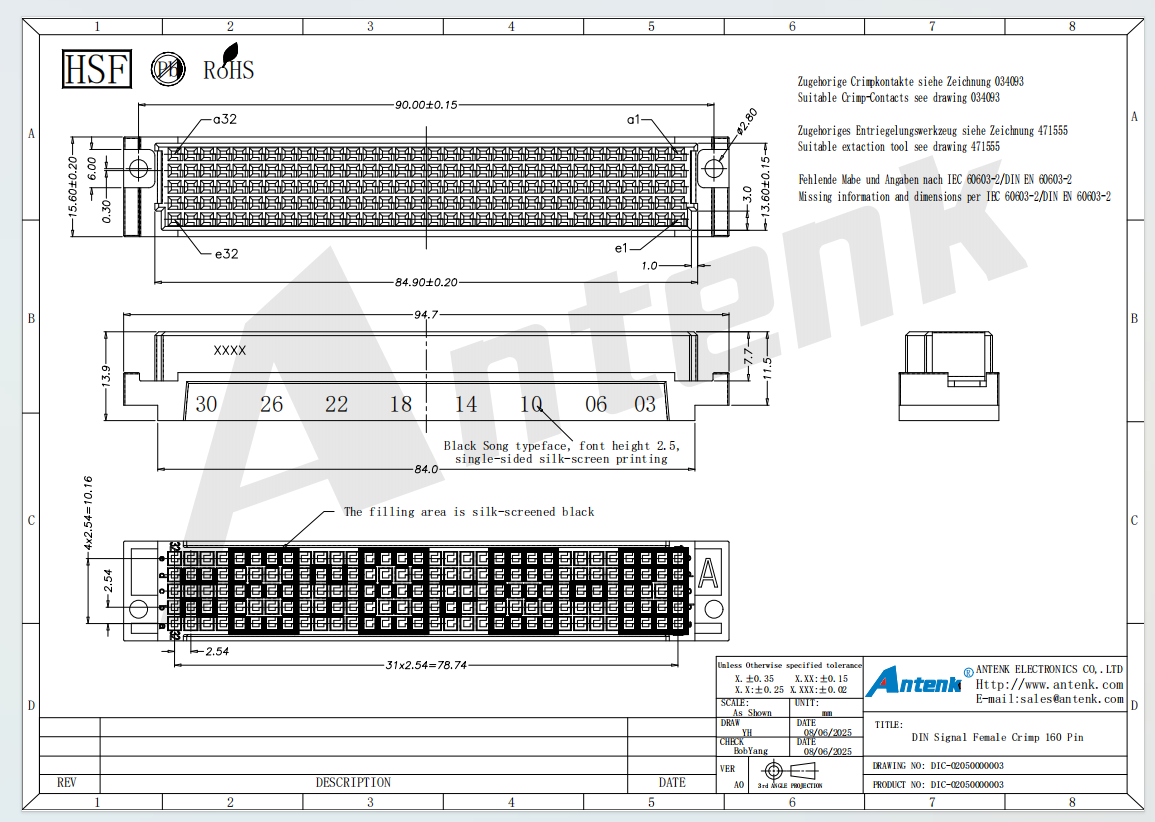

DIN Signal Female Crimp 160 Pin

  The Antenk DIN Signal Female Crimp 160 Pin Connector distinguishes itself through precision engineering, premium materials, and vertically integrated production. The insulating body is molded from high temperature PBT +30 glass fiber, rated UL94V 0, providing excellent dimensional stability and arc resistance. Contacts are stamped from phosphor bronze C5191, then selectively plated with gold over nickel in the mating area and tin over nickel in the crimp barrel, ensuring low contact resistance and superior solderability or crimp retention. The female contact design features a closed entry, four finger spring structure that guarantees consistent normal force and gas tight connection with mating male pins over 500 insertion extraction cycles.

  Antenk’s manufacturing process begins with in house precision tooling design, followed by high speed stamping using 11 Japanese and Taiwanese presses, injection molding with 8 molding machines, and automated assembly across 180 assembly systems. The crimp contacts are produced on high precision stamping dies, then undergo selective plating in fully controlled lines. For the 160 pin connector, each contact is loaded into the housing using automated insertion machines to ensure correct position and retention. Finished connectors are subjected to 100% visual inspection, contact resistance testing, insulation resistance measurement, and dielectric withstand voltage testing in an ISO 17025 compliant lab equipped with 20+ testing instruments. Compared with major European and American brands, Antenk offers equivalent or superior electrical performance at 15 20% lower cost, with lead times reduced from months to 2 3 weeks. The company’s 24 hour technical response and custom molding service provide unmatched flexibility. Certification includes ISO9001, ISO14001, IATF16949 2016, UL E472792, and full RoHS REACH compliance.

  Using the Antenk DIN Signal Female Crimp 160 Pin Connector requires proper crimp tooling for reliable wire attachment. Select the appropriate crimp tool (manual or pneumatic) matched to the contact size and wire gauge 28 22 AWG. Strip the wire to 2.5 3.0mm, insert into the crimp barrel, and compress using the tool’s approved die set. After crimping, verify pull test strength and contact deformation. Insert the terminated contact into the designated cavity from the rear of the housing until a click confirms primary lock retention. For removal, use a dedicated extraction tool. Important precautions: never exceed the rated current per contact, ensure that mating male pins are aligned before seating, and avoid using bent or damaged contacts. The connector should be mated perpendicularly to the backplane male header without rocking, which could deform the female springs. For high vibration environments, use locking clips or additional housing retention features. Antenk provides detailed crimp specifications and tooling recommendations in the product datasheet. By choosing Antenk DIN Signal Female Crimp 160 Pin Connector, customers gain a high density, field serviceable, and cost effective interconnect backbone that meets global standards while reducing total cost of ownership. Contact Antenk today for samples, custom cable assemblies, or engineering support.

2

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in connector and cables. And we export e our products with our clients directly.

 Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

we can support ODM and OEM service here, we have strong R&D team in Atkconn group.

Q: How many different types of products your company manufactures?

A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
