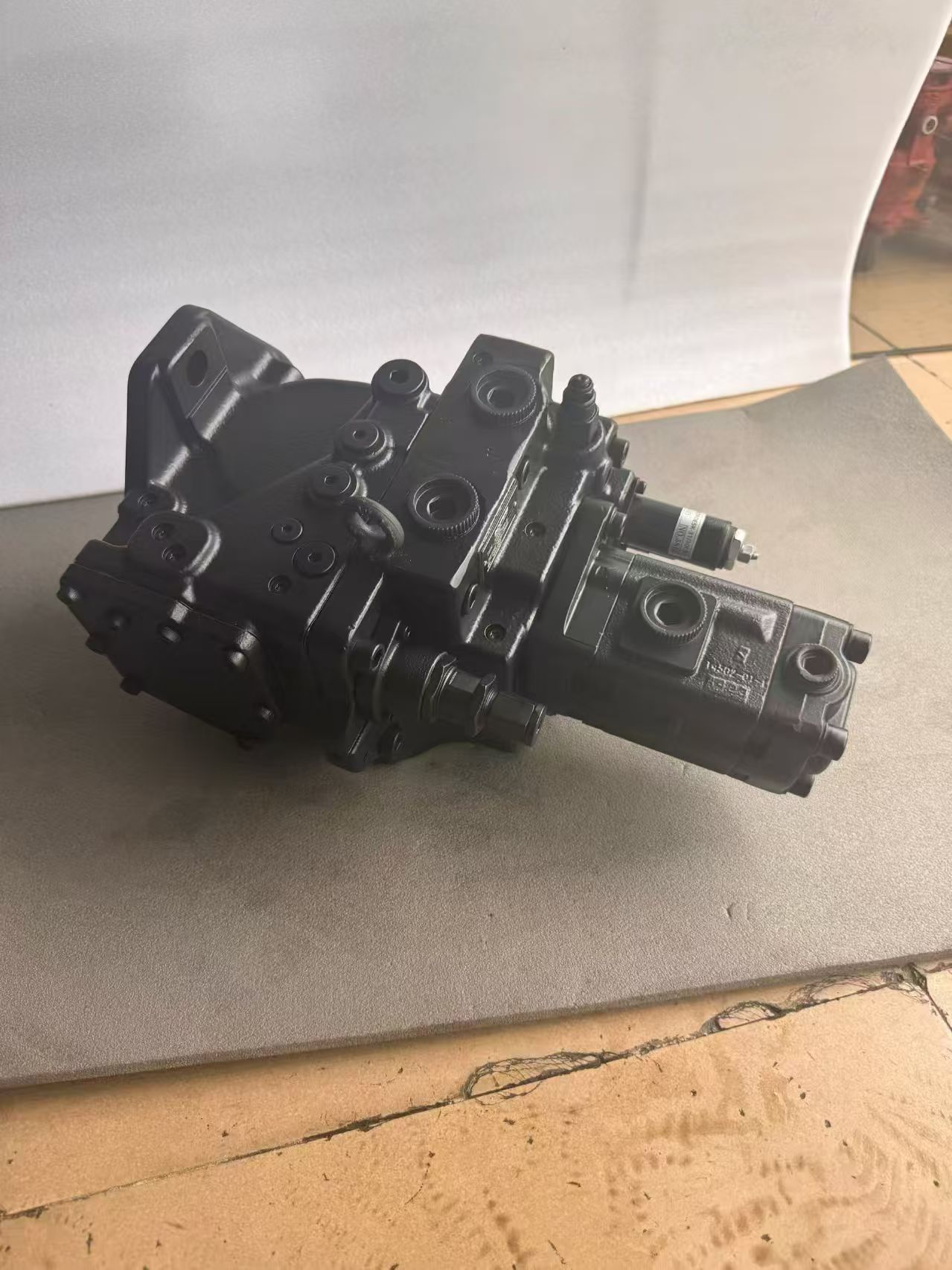

Takeuchi Hydraulic Pump K7SP‑36
Product Overview
The K7SP‑36 is a main hydraulic pump specially designed for Takeuchi excavators. It belongs to the Kawasaki K7SP series variable displacement axial piston pump, integrated with a solenoid valve and dual‑gear auxiliary pump. This integrated hydraulic assembly is originally matched for medium and small Takeuchi excavators, featuring fast flow response and excellent coordination for combined movements.
Model Code Explanation
- K7SP: Kawasaki K7SP series swash‑plate variable displacement axial piston main pump
- 36: Main pump nominal displacement specification, matched for corresponding tonnage machines
- Integrated configuration: Built‑in proportional solenoid valve + integrated dual‑gear pump (pilot pump + auxiliary pump combined)
Main Technical Specifications
Item Specification
Main Pump Type Variable displacement axial piston pump (Kawasaki K7SP)
Nominal Displacement 36 cc/rev
Rated Operating Pressure 32 MPa
Maximum Peak Pressure 35 MPa
Control Mode Electronic proportional solenoid valve load‑sensing control
Auxiliary Pump Structure Integrated dual‑gear pump (pilot pump + charge pump)
Pilot Pump Displacement Standard small displacement for stable control pressure
Maximum Rotational Speed 2400 r/min
Applicable Models Medium and small Takeuchi excavators
Solenoid Voltage 12V / 24V DC (selected by model)
Installation Structure Integrated one‑piece assembly, no additional pilot pump required
Structural Features & Core Advantages
1. Integrated One‑piece Design: Main piston pump, solenoid valve and dual‑gear pump are pre‑assembled as a whole for easy installation and neat piping layout.
2. Electronic Load‑sensing Control: The solenoid valve accurately regulates flow and pressure to ensure smooth combined movements and comfortable operation.
3. Integrated Dual‑gear Pump: Supplies both pilot control pressure and system charging oil for quick power response.
4. High‑durability Wear‑resistant Structure: Valve plate and pistons are made of high‑strength wear‑resistant materials, suitable for heavy‑duty applications such as earthmoving and breaker operation.
5. Original Matching Performance: Pre‑calibrated for Takeuchi hydraulic systems, enabling direct replacement without complicated commissioning.
Typical Applications
- Main hydraulic power assembly for Takeuchi mini excavators
- Suitable for multi‑function combined operations including earthmoving, breaking and grapple work
Installation Notes
1. Recalibrate solenoid current and system pressure after replacement.
2. System filtration accuracy shall be no less than 10 μm to extend piston pump service life.
3. Ensure correct wiring of the solenoid valve to prevent damage to electronic components.
Takeuchi (Zhunei) K7SP-36 Hydraulic Pump (Equipped with Solenoid Valve, Dual-Gear Pump) Detailed Introduction
I. Product Overview
The Takeuchi K7SP-36 is a compact, high-performance hydraulic dual-gear pump designed specifically for small construction machinery. Featuring a dual-gear structure and integrated solenoid valve control, this pump is ideal for hydraulic systems requiring precise flow control and efficient power transmission.
II. Core Specifications
• Model: K7SP-36
• Type: Dual-gear pump
• Weight: Approximately 4 kg
• Operating Principle: Gear pump (external gear type)
• Speed Range: 3,000–5,000 rpm
• Medium: Hydraulic oil
• Drive Method: Electric
• Warranty Period: 1 year
• Mounting Method: Flange-mounted
• Customization Available: Yes
III. Performance Features
1. Efficient Power Transmission
• The dual-gear design ensures stable flow output, meeting the dual demands for power and precision in construction machinery.
• Gear meshing lines isolate the suction and pressure chambers, ensuring efficient pressure boosting.
2. Compact Structure
• Small size and lightweight make it suitable for installation in space-constrained construction machinery (e.g., mini excavators, loaders).
3. Integrated Solenoid Valve
• Equipped with a solenoid valve for remote flow control, enhancing system automation.
4. Low-Noise Operation
• Optimized gear meshing design reduces hydraulic shock, ensuring smooth and quiet operation.
5. High Adaptability
• Suitable for high-temperature and high-pressure conditions, compatible with both open and closed hydraulic systems.
IV. Typical Application Scenarios
1. Mini Excavators
• Serves as a power source for travel or swing motors, providing stable power output.
2. Loaders
• Drives working devices (e.g., buckets) for efficient loading and unloading operations.
3. Road Rollers
• Powers vibratory motors to enhance compaction performance.
4. Agricultural Machinery
• Applicable to hydraulic systems in harvesters, tractors, and other equipment.
