Product details

Product Overview

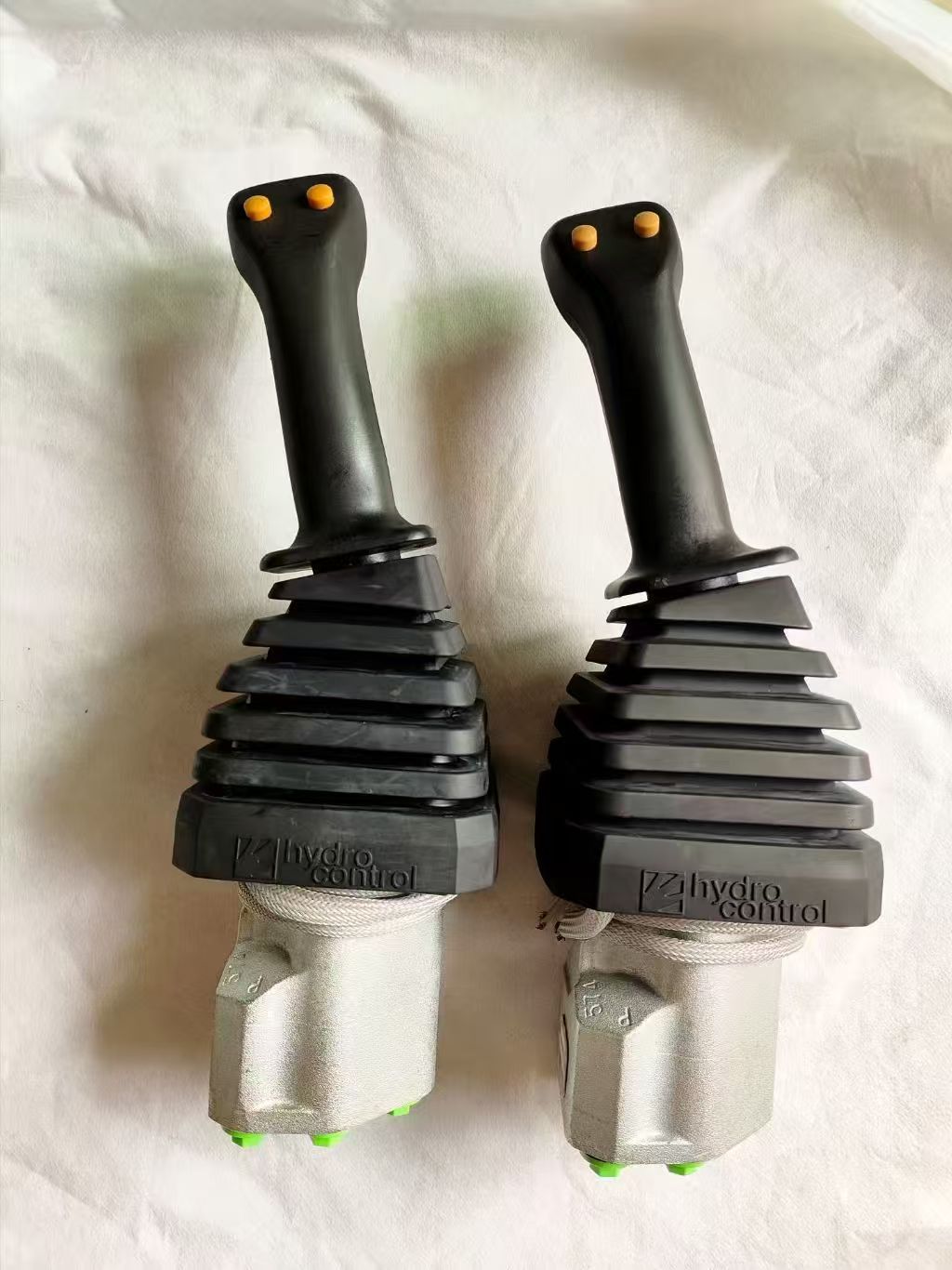

The hydraulic joystick valve, also known as pilot joystick control valve, is a core hydraulic control component widely used in construction machinery. It converts manual operating movement into hydraulic pressure signals to remotely control the main control valve, realizing flexible operation of excavators, loaders, aerial work platforms and other mobile equipment.

Working Principle

When the operator pushes or tilts the joystick handle, the internal spool shifts accordingly, generating corresponding pilot oil pressure. This pressure signal is transmitted to the main hydraulic valve, which changes the opening direction and flow rate to drive the actuator such as cylinders and hydraulic motors to move.

Main Technical Specifications

Item Standard Specification

Working Pressure 3.5 MPa ~ 5 MPa (Pilot pressure)

Max Inlet Pressure 7 MPa

Operating Temperature -20℃ ~ 80℃

Control Ports 4-way / 6-way / 8-way available

Return Port Common oil return design

Operation Mode Manual proportional control

Connection Type Thread connection (BSPP / Metric)

Installation Vertical / horizontal mounting

Key Structural Features & Advantages

1. Precise Proportional Control

Smooth operation with no jitter, accurately controlling flow and speed for stable machine movement.

2. Compact & Durable Structure

High-strength valve body with anti-leakage design, resistant to vibration and impact in harsh working environments.

3. Multi-function Integration

Optional integrated trigger switch, horn switch, proportional control and safety lock functions.

4. Low Operating Force

Light handle operation reduces operator fatigue for long-time working.

5. Wide Compatibility

Directly compatible with major brands including Takeuchi, Kubota, Caterpillar, Komatsu and other excavator systems.

Typical Applications

- Mini & medium excavators

- Wheel loaders, skid steer loaders

- Aerial work platforms, road rollers

- Agricultural machinery, forestry equipment

- Various mobile hydraulic systems requiring remote control

Installation Notes

1. Install a filter on the pilot oil circuit to avoid internal spool blockage caused by impurities.

2. Keep clean during installation to prevent hydraulic oil contamination.

3. Check handle neutral position after installation to ensure automatic centering function works normally.

1. Product Definition

AHydraulic Joystick Valveis a valve that controls the flow, direction, or pressure of a hydraulic system through a mechanical joystick (control lever). It is widely used in construction machinery, agricultural equipment, industrial machinery, and other fields. Its core function is to convert the mechanical displacement of the joystick into hydraulic signals, enabling precise control of equipment movements (e.g., excavation, steering, lifting).

------

2. Core Components & Structure

1. Joystick (Control Lever)

• The manually operated component, typically designed with 2–4 axes for multi-directional control (forward/backward, left/right, or rotation).

• Equipped with damping adjustment or force feedback for enhanced operational comfort.

2. Valve Body

• Integrates directional control valves (e.g., directional spool valves), flow control valves, or pressure control valves to distribute hydraulic fluid based on joystick movements.

• Made of high-strength cast iron or aluminum alloy for high-pressure resistance and corrosion protection.

3. Sensors (Optional)

• Some models include displacement or pressure sensors to convert mechanical signals into electrical signals for electronic control (e.g., CAN bus communication).

4. Connection Interfaces

• Hydraulic ports: Standard threads or flanges for compatibility with different pipe diameters.

• Electrical ports(if equipped): Support signal output to controllers.

------

3. Working Principle

1. Mechanical-to-Hydraulic Conversion

• Joystick movement drives valve spool displacement via linkages or cam mechanisms, altering hydraulic fluid pathways.

• Example: Pushing the joystick forward → spool opens → hydraulic fluid flows to the actuator (e.g., hydraulic cylinder) → equipment moves.

2. Proportional Control (Optional)

• Advanced models support proportional control, where joystick displacement correlates with hydraulic flow/pressure for stepless speed or force adjustment.

------

4. Performance Features

1. High-Precision Control

• Minimal joystick movement triggers hydraulic actions, ideal for delicate operations (e.g., excavator bucket control).

2. Multi-Axis Synergy

• Supports simultaneous multi-axis operation for complex motion combinations (e.g., controlling an excavator’s boom, arm, and bucket concurrently).

3. Durability

• Sealed design (e.g., O-rings, composite gaskets) prevents hydraulic leaks, ensuring reliability in harsh conditions (high temperatures, dust, vibration).

4. Modular Design

• Integrates multiple functional valves (e.g., check valves, relief valves) to simplify system complexity.

5. Safety Protections

• Some models feature overload protection or emergency stop functions to prevent equipment damage or operator injury.

------

5. Typical Applications

1. Construction Machinery

• Excavators: Control boom, arm, bucket, and slewing motions.

• Wheel Loaders: Operate bucket lifting and tilting.

• Cranes: Adjust boom extension and luffing.

2. Agricultural Machinery

• Combine Harvesters: Regulate header height and reel speed.

• Tractors: Control hydraulic outputs (e.g., three-point hitch).

3. Industrial Equipment

• Injection Molding Machines: Adjust mold opening/closing speed and pressure.

• Die-Casting Machines: Control clamping force and injection velocity.

4. Specialty Vehicles

• Fire Trucks: Operate aerial ladder elevation and rotation.

• Aerial Work Platforms: Control platform lifting and steering.

------

6. Selection & Maintenance Guidelines

Key Selection Criteria

1. Pressure & Flow Ratings

• Choose based on system requirements (e.g., 20 MPa/35 MPa pressure, 50 L/min/100 L/min flow).

2. Number of Control Axes

• Single-axis: Simple directional control (e.g., lifting).

• Multi-axis: Complex motion coordination (e.g., excavator multi-function control).

3. Control Method

• Mechanical: Pure mechanical linkage, cost-effective.

• Electro-Hydraulic: Integrated sensors for electronic control (e.g., PLC/HMI integration).

4. Environmental Adaptability

• Explosion-proof models: For flammable environments (e.g., mining, chemical plants).

• Corrosion-resistant models: For marine or corrosive media applications.

Maintenance Recommendations

1. Seal Inspection

• Replace aged or damaged O-rings/dust seals to prevent hydraulic leaks.

2. Joystick Cleaning

• Avoid dust/debris ingress into the valve body to maintain spool mobility.

3. Hydraulic Fluid Management

• Use standard-compliant fluid (e.g., ISO VG46) and replace/filter it regularly.

4. Proportional Valve Calibration (If Applicable)

• Recalibrate electro-hydraulic proportional valves to ensure alignment between joystick displacement and hydraulic parameters.
