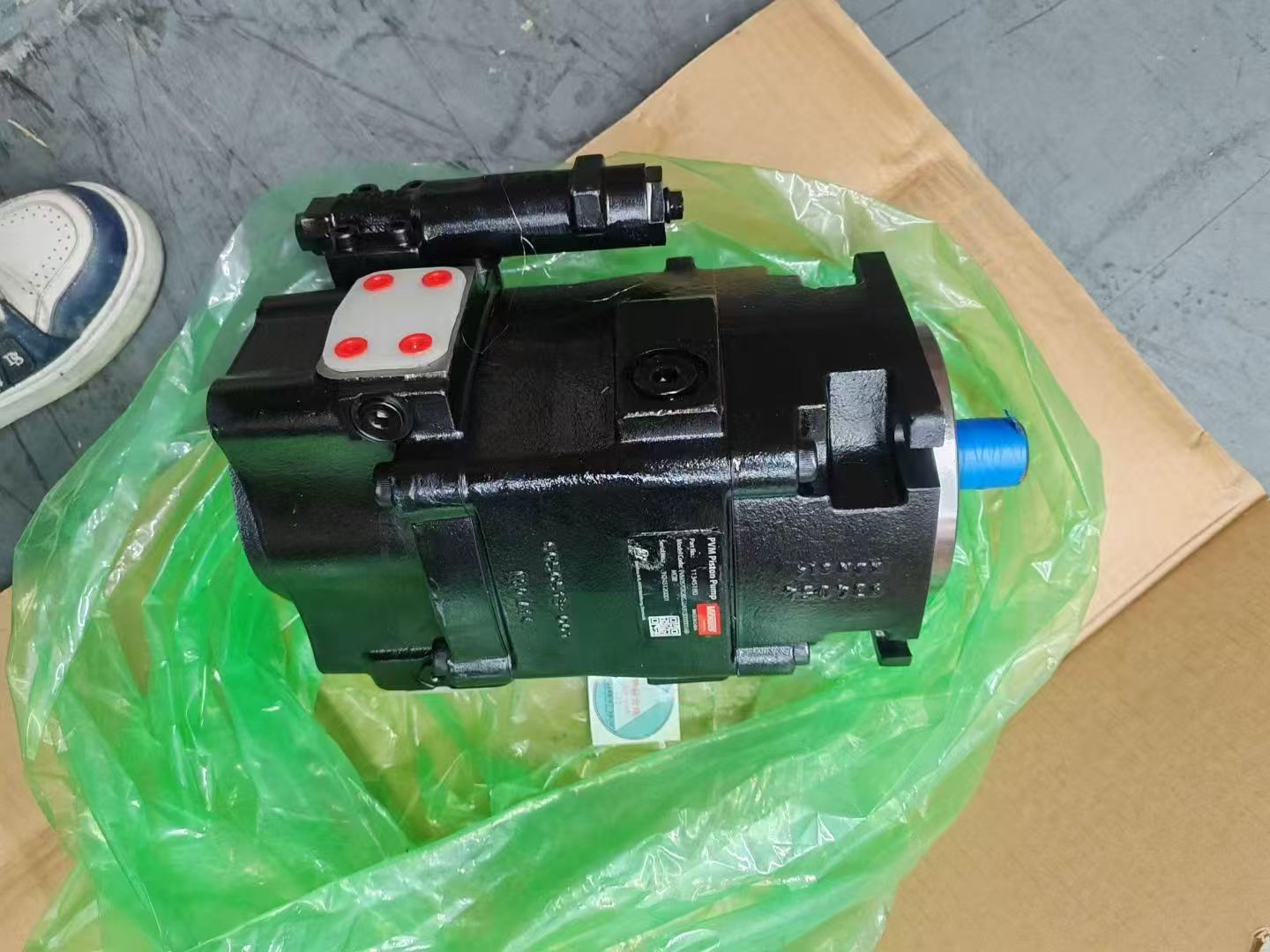

Danfoss Vickers PVM hydraulic piston pump

2 month ago

8 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

PVM010ER02AS2A315000000AB

PVM010ER03AS2A3150000000B

PVM010ER05CS1A315000000AB

PVM018ML03AE1C315200000AB

|PVM020ML03AE1A210000000AB

PVM018ER02AE1A315000000AB

PVM018ER02AE1C315200000AB

PVM018ER05CS1A315000001AB

PVM018ER05CS1C315110001AB

PVM018ER05CS1A315000000AB

PVM018ER07CS2A3150000010B

PVM018ER07CS2C3151100000B

PVM018ER07CS2C315110000AB

|PVM018MR03AS2A315000000AB

PVM018ER07CS2A315000001AB

PVM018MR04AE1C315200000AB

PVM018ER02AS2C315110000AB

PVM018ER02AS2A315000000AB

PVM018ER05CS2C3151100000B

PVM018ER05CS2C315110000AB

PVM018MR07CS20000000000AB

PVM018MR07CS2A315000000AB

PVM045ML08CS2C28020000AAB-0000

PVM045ER05CE2A315000000AB

PVM045ER05CS2A315000000AB

PVM045ER05CS2A315000000AB-AV00

PVM045ER05CS2A315000001AB

PVM045ER05CS2A315000001AB-AV00

PVM045ER05CS2C070200000AB

PVM045ER05CS2C070200001AB

PVM045ER05CS2C230200000AB

PVM045ER05CS2C230200001AB

PVM045ER05CS2C315200000AB-BD00

PVM045ER05CS2C315200001AB-BD00

PVM045ER05CE1B315110000AB

PVM045ER05CE2A315000000AB

PVM045ER06CE2A230000000AB

PVM045ER06CE2A315000000AB

PVM045ER06CE2C315110000AB

PVM045ER06CS2A070000000AB

PVM045ER06CS2A070000000AB-AV00

PVM045ER06CS2A070000001AB

PVM045ER06CS2A070000001AB-AV00

PVM045ER06CS2A315000000AB

PVM045ER06CS2A315000001AB

PVM045ER06CS2B315110000AB

PVM045ER06CS2B315110001AB

PVM045ER06CS2C315110000AB

PVM045ER06CS2C315110001AB

PVM045ER06CS2C31511000CAB

PVM045ER07CS2C230200000AB-BD00

PVM045ER07CS2C230200001AB-BD00

PVM045MR07CS2C315200001AB

M045MR08CS2C315200001AB

PVM045ER08CS2A070000000AB

|PVM045ER08CS2A070000001AB

PVM045ER08CS2C28011000COB

PVM045ER08CS2C28011000C0B-BW00

PVM045ER08CS2C315200001AB

PVM045MR06CS20000000000AB

PVM057ER09GS2A070000001AB

PVM057ER09GS2A315000001AB

PVM057ER09GS2C315200001AB

PVM057ER09GS2E000200001AB

PVM057ER09GS2L315200201AB

PVM057ER09ES2A315000001AB

PVM057ER09ES2C315200001AB

PVM057ER09ES2E000200001AB

PVM057ER09ES2L315200201AB

PVM057ER09ES2A070000001AB

PVM057ER09GS2C230200000AB

PVM057MR11GS2C180250001AB

PVM057ER11GS20000000001AB

PVM057ER11GS2A070000001AB

PVM057ER11GS2A070000000AB

PVM074ER09GS2A315000000AB

PVM074ER09GS2A315000001AB

PVM074ER09GS2C315200000AB

PVM074ER09GS2C315200001AB

PVM074ER09GS2E000200000AB

PVM074ER09GS2L280200251AB

PVM074ER10GS2A070000000AB-AS

PVM074ER10GS2A315000000AB

PVM074ER10GS2A315000000AB-AS

PVM074ER10GS2A315000001AB

PVM074ER10GS2C315200000AB

PVM074ER10GS2C315200000AB-AS

PVM074ER10GS2C315200001AB

PVM074ER10GS2C3152000010B

PVM074ER10GS2C31520000AAB

PVM074ER10GS2C3152000000B

PVM074ER10GS2E000200000AB

PVM074ER10GS2E000200001AB

PVM074ER10GS2F000200000AB

PVM074ER10GS2F000200001AB

PVM074ER10GS2L315200350AB

PVM074ER10GS2L315200351AB

PVM074ER11GS2C315200000AB

PVM074ER11GS2C315200001AB

PVM074ER11GS2C31520000CAB

PVM074ER11GS2E000200000AB

PVM074ER11GS2E000200001AB

PVM074ER11GS2L315200350AB

PVM074ER11GS2L315200351AB

PVM074ML11GS2C315200000AB

PVM074ML11GS2C315200001AB

PVM074ML11GS2L315200350AB

PVM074ML11GS2L315200351AB

PVM074MR10GS20000000000AB

PVM074MR11GS20000000000AB

PVM074MR11GS2C315200000AB

PVM074MR11GS2C315200001AB

PVM074MR11GS2L315200350AB

PVM074MR11GS2L315200351AB

PVM074MR11GS2B315200000AB

PVM074MR11GS2B315200001AB

PVM074ML11GS2B315200001AB

PVM098MR11GS2A315000000AB

PVM098ER09GS2C315200000AB

PVM098ER09GS2A315000001AB

PVM098ER09GS2A070000001AB

PVM098ER09GS2C315200001AB

PVM098ER09GS2E000200001AB

PVM098ER09GS2C070110001AB

PVM098ER09GS2L315200451AB

PVM098ER10GS2A315000000AB-AS00

PVM098ER10GS2C315200000AB-AS00

PVM098ER10GS2A315000000AB-0000

PVM098ER10GS2A315000001AB

PVM098ER10GS2L315200451AB

PVM098ER10GS2A07000000EAB

PVM098ER10GS2A31500000EAB

PVM098ER10GS2C315200001AB

PVM098ER10GS2C31520000EAB

PVM098ER10GS2E000200001AB

PVM098ER11GS2A315000001AB

PVM098ER11GS2C315200001AB

PVM098ER11GS2C31520000EAB

PVM098ER11GS2C31520000AAB

PVM098MR11GS20000000000AB

PVM098ML11GS2C315200001AB

PVM098MR11GS2C315200001AB

PVM098MR12GS2C315200001AB

PVM098ML11GS2L315200351AB

PVM098MR11GS2C315110001AB

PVM098MR11GS2L315200351AB

PVM098MR11GS2B315110001AB

PVM098MR11GS2B070110000AB

PVM131ER09GS2C315200001AB

PVM131ER09GS2A315000001AB

PVM131ERO9GS2C315200001AB-0000

PVM131ER09GS2E000200001AB-0000

PVM131ER10GS2A315000000AB

PVM131ER10GS2A315000001AB

PVM131ER10GS2C315110000AB

PVM131ER10GS2C315110001AB

PVM131ER10GS2C315200000AB

PVM131ER10GS2C315200001AB

PVM131ER10GS2E00020000EAB

PVM131ER11GS2C31520000EAB

PVM131ER13GS2A07000000AAB

PVM131ER13GS2A315000000AB

PVM131ER13GS2A315000001AB

PVM131ER13GS2A315000001AB-AS00

PVM131ER13GS2C315200000AB

PVM131ER13GS2C315200000AB-AS00

PVM131ER13GS2C315200001AB

PVM131ER13GS2C315200001AB-AS00

PVM131ER13GS2C31520000AAB

PVM131ER13GS2E00020000EAB

PVM131ER13GS2L315200400AB

PVM131ER13GS2L315200401AB

PVM131ML11GS2C315200000AB-CA00

PVM131ML11GS2C315200001AB-CA00

PVM131MR10GS2A315000000AB

PVM131MR10GS2A315000001AB

PVM131MR11GS20000000001AB

PVM131MR11GS2C315200000AB-CA00

PVM131MR11GS2C315200001AB-CA00

PVM131MR11GS2L315200401AB

PVM131ML12GS2C315200001AB

PVM131MR12GS2C315200001AB

PVM131MR13GS20000000001AB

PVM131MR13GS2A070000000AB

PVM131MR13GS2A070000001AB

PVM141ER09GS2A230000000AB

PVM141ER10GS2A230000000AB

PVM141ER10GS2A230000001AB

PVM141ER10GS2C230200000AB

PVM141ER10GS2C230200001AB

PVM141ER10GS2E000200000AB

PVM141ER10GS2E000200001AB

PVM141ER11GS2B230200000AB

PVM141ER11GS2B23020000EAB

PVM141ER11GS2C23020000EAB

PVM141ER13GS2A230000000AB

PVM141ER13GS2A230000000AB-AS00

PVM141ER13GS2A230000001AB

PVM141ER13GS2A230000001AB-AS00

PVM141ER13GS2B230200000AB

PVM141ER13GS2B230200001AB

PVM141ER13GS2C230200000AB

PVM141ER13GS2C230200000AB-AS00

PVM141ER13GS2C230200001AB

PVM141ER13GS2C230200001AB-AS00

PVM141ER13GS2C23020000AAB

PVM141ER13GS2C23020000CAB

PVM141ER13GS2C23020000EAB

PVM141ER13GS2L230200500AB

PVM141ER13GS2L230200501AB

PVM141MR13GS20000000000AB-0000

PVM141MR11GS2A230000000AB

PVM141MR11GS2A230000001AB

PVM141MR11GS2C230200000AB

PVM141MR11GS2C230200001AB

The PVM series is a high-pressure swashplate axial piston variable displacement pump developed by Danfoss after acquiring Eaton Vickers. Designed for heavy-duty industrial and mobile hydraulic applications, it is a mature and durable medium-to-high pressure piston pump renowned for low noise, high efficiency, strong contamination resistance and long service life. It is widely used as a replacement for the older Vickers PVB series.

Model Nomenclature (Example: PVM074ER09GS02AA)

- PVM: Series code for Variable Displacement Axial Piston Pump

- 074: Nominal displacement in cm³/r. Main specifications include PVM045 / 050 / 063 / 074 / 098 / 131

- E: Control type (pressure compensation, load sensing, electro-proportional, etc.)

- R: Rotation direction (clockwise / counterclockwise)

- 09: SAE standard 2-bolt mounting flange specification

- GS: Port configuration layout

- 02AA: Seal material, shaft oil seal and shaft extension configuration

Operating Principle

1. It adopts a swashplate piston structure. The drive shaft rotates the cylinder block, and the pistons reciprocate according to the swashplate angle to complete oil suction and discharge cycles.

2. The swashplate angle is actuated by an integrated servo control valve, which automatically adjusts displacement based on load pressure signals to achieve constant power, constant pressure and load-sensing (LS) control.

3. Pressure compensation (PC) is the most common configuration: once system pressure reaches the preset value, the pump automatically reduces displacement to stabilize pressure, minimize overflow heat generation and save energy.

Main Control Configurations

1. PC Pressure Compensation Control

The most widely used type, which sets the maximum system operating pressure and reduces displacement automatically at set pressure. Commonly applied in injection molding machines and hydraulic power units.

2. LS Load Sensing Control

Adjusts flow in real time according to load demand, running at low displacement under no-load conditions to reduce power consumption. Suitable for construction machinery and mobile hydraulics.

3. EP Electro-Proportional Displacement Control

Receives 0~10V or 4~20mA electrical signals for stepless flow regulation, ideal for automated production lines and closed-loop systems.

4. HC Constant Power Control

Maintains constant engine output power to prevent overload stalling, used in loaders, pavers and other mobile equipment.

General Key Technical Specifications

- Displacement range: 45 ~ 131 cm³/r

- Rated operating pressure: 280 bar

- Peak pressure: 315 bar

- Operating speed range: 600 ~ 2800 rpm

- Volumetric efficiency: ≥94%

- Case drain pressure rating: 10 bar

- Mounting standard: SAE J744 2-bolt flange; through-drive design optional

- Seals: Standard NBR nitrile rubber; FKM high-temperature resistant seals available as an option

Structural Features

1. Spherical valve plate design reduces friction loss and provides excellent contamination tolerance, performing better than comparable Rexroth pumps regarding oil cleanliness requirements.

2. Bimetallic cylinder block and copper alloy valve plate ensure low wear under high pressure and high speed for extended service life.

3. Integrated control valve design offers compact installation with externally adjustable pressure and flow settings.

4. Optimized low-noise structure delivers stable operation, suitable for indoor industrial equipment.

5. Through-drive configuration allows series mounting with gear pumps and piston pumps for multi-pump combinations.

Typical Applications

- Industrial hydraulic power units, injection molding machines, forging equipment and metallurgical machinery

- Construction machinery: loaders, road rollers, aerial work platforms and concrete machinery

- Marine deck hydraulics, mining equipment and port lifting machinery

- Mobile hydraulic power packs

Common Wear Parts

- Valve plate, cylinder block and piston slipper assembly

- Servo spool and pressure compensation valve components

- Shaft oil seal and end cap seal kits

TheDanfoss Vickers PVM seriesrepresents a line of high-performance axial piston pumps designed for hydraulic systems requiring precise control, high efficiency, and durability. These pumps are widely used in industrial machinery, mobile equipment, and specialized hydraulic applications.

Key Features of the Danfoss Vickers PVM Pump

1. Axial Piston Design

• Utilizes a swashplate mechanism to convert rotational motion into hydraulic flow, enabling variable displacement control.

2. Variable Displacement

• Adjustable output flow rate to match system demands, improving energy efficiency and reducing heat generation.

3. High-Pressure Capability

• Rated for operating pressures up to350 bar (5,076 psi), suitable for demanding hydraulic applications.

4. Compact & Robust Construction

• Durable materials and precision engineering ensure long service life even in harsh environments.

5. Low Noise & Vibration

• Optimized internal geometry minimizes operational noise and vibration levels.
