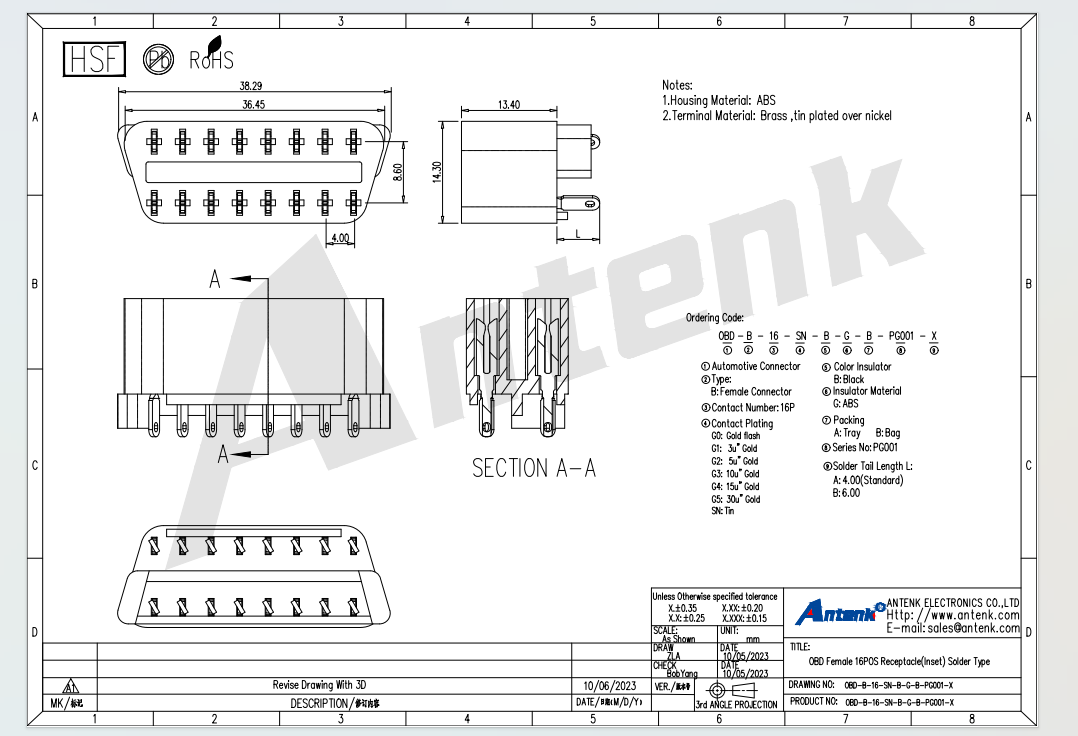

OBD Femle 16P SReceptacle (Inset) Solde Type PG001

2 month ago

6 0 

5 year

Product details

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the OBD Female 16P Receptacle (Inset) Solder Type. This precision-engineered female connector is designed for on-board diagnostic (OBD-II) interfaces, complying with SAE J1962 specifications. The receptacle features a 16-pin inset (recessed) terminal arrangement, with a robust high-temperature UL94 V-0 rated PBT/PA66 housing, providing excellent mechanical strength and thermal stability up to 125°C. Key characteristics: current rating 5A per pin, contact resistance <20mΩ, insulation resistance >1000MΩ, dielectric strength 500V AC, operating temperature -40°C to +125°C. The receptacle includes a polarized trapezoidal shape and integrated latch locking mechanism for secure mating with the OBD male connector. Terminals are stamped from phosphor bronze with selective gold or tin plating. RoHS, REACH compliant, UL recognized (E472792).

Applications include vehicle diagnostic ports (OBD-II), onboard data loggers, fleet management systems, automotive testing equipment, and aftermarket scan tools. Usage: solder the receptacle’s through-hole pins directly to the PCB using wave or hand soldering (peak 260°C). The inset design protects terminals during handling. After soldering, mate with the OBD male connector shell; the latch engages audibly. Precautions: avoid reverse polarity, do not exceed 5A per pin, ensure proper PCB hole alignment. Advantages over competitors: Antenk’s receptacle features reinforced latch arms tested to 10,000 mating cycles, and terminal coplanarity within 0.08mm to prevent soldering defects. Low MOQs (1,000 units) with no tooling fees.

Production process: in-house mold design → injection molding (10 Japan/Taiwan machines) → high-speed stamping (9 presses) → selective gold/tin plating → automated terminal insertion → 100% electrical continuity & coplanarity inspection → contact resistance & insulation tests → 48h salt spray test → final QC with lot traceability. Free samples, 2D/3D CAD drawings, and 24/7 technical support. Contact Antenk for reliable OBD receptacle solutions.
