Product details
T10 Open End Standard PU Timing Belt is an open-type unfinished trapezoidal toothed transmission belt designed for customizable linear motion and multi-station reciprocating drive systems. Differing from pre-welded endless timing belts with fixed circumference, this open-end T10 belt features an unrestricted linear structure that allows buyers to freely cut length, splice joints and configure installation methods according to actual mechanical design requirements. Manufactured from high-purity abrasion-resistant polyurethane and embedded continuously arranged high-tensile steel cords, this belt maintains ultra-low stretch characteristics under long-term tension while delivering outstanding tooth meshing stability. Featuring a 10mm standard tooth pitch and optimized trapezoidal tooth profile, it balances powerful load-bearing capacity and flexible linear movement performance. Ideal for equipment requiring customized stroke lengths and adjustable track layouts, this open-end timing belt is widely applied in gantry cutting devices, multi-axis linear sliding modules, automated spraying manipulators and customized non-standard automation machinery across various industrial segments.
As a fundamental linear drive accessory tailored for modular automation equipment, Drive T10 Open End Pu Timing Bel acts as the preferred transmission medium for single-direction and bidirectional linear motion assemblies. The internal parallel steel cord layout effectively suppresses longitudinal deformation during high-speed reciprocating operation, eliminating positioning drift that commonly occurs with low-grade open belts. The precisely molded tooth surface ensures seamless meshing with all standard T10-series timing pulleys, enabling synchronous linkage across multiple moving axes. We once provided Drive T10 Open End Pu Timing Bel for a professional gantry cutting equipment manufacturer. The client’s large-format cutting machines needed variable stroke settings for different processing materials. Traditional endless belts could not adapt to flexible stroke adjustments, while our open-end T10 belts allowed engineers to cut and assemble the belt length on-site. This flexibility simplified equipment production procedures, shortened the product debugging cycle, and maintained consistent cutting precision for acrylic panels and aluminum composite panels throughout long-hour operation.
Built in full compliance with global industrial dimensional specifications and quality benchmarks, Standard T10 Open End Belt serves as a universal interchangeable spare part for mainstream linear motion platforms worldwide. This standardized open belt strictly follows unified tooth height, tooth pitch and overall thickness parameters, compatible with off-the-shelf T10 pulleys, tensioners and fixing fixtures from various brands. The upgraded PU formula enhances oil resistance and bending fatigue resistance, making it adaptable to complex workshop environments with lubricant splashing and floating dust. In the automation accessory industry, numerous linear slide table manufacturers adopt Standard T10 Open End Belt for standardized lightweight sliding modules. Thanks to its unified industrial specifications, manufacturers no longer need to develop exclusive customized belts for different module models, greatly reducing accessory inventory pressure and lowering the comprehensive manufacturing cost of linear motion modules.
Specially optimized for high-frequency spraying and handling equipment with long-stroke transmission demands, our high-performance Open End T10 Pu Drive Belt solves the pain points of insufficient tension resistance and easy joint loosening for extended linear drive applications. This optimized open-end belt undergoes secondary surface compaction treatment to reduce internal stress during repeated bending, and supports specialized metal clamping joints for stable end fixation. Compared with generic open belts, it delivers stronger anti-loosening performance under variable acceleration and deceleration conditions. A typical application case involves automated industrial spraying production lines. The long-stroke spraying manipulators require stable synchronous drive to ensure uniform paint coverage on workpiece surfaces. Equipped with our Open End T10 Pu Drive Belt, the spraying equipment achieved smooth jitter-free movement over extended tracks, avoided uneven coating caused by transmission fluctuations, and improved the surface finishing quality of metal and plastic sprayed workpieces significantly.
We provide comprehensive supporting services for T10 Open End Standard PU Timing Belt, including fixed-length cutting, joint welding, metal fastener installation and anti-static surface treatment. Whether customers need versatile Drive T10 Open End Pu Timing Bel for gantry cutting machinery, universally interchangeable Standard T10 Open End Belt for standardized linear sliding modules, or high-stability Open End T10 Pu Drive Belt for long-stroke automated spraying manipulators, we can provide reliable one-stop solutions. All raw open-end belt materials are tested for tensile resistance, bending fatigue and meshing tolerance before delivery. Capable of flexible length customization and universal pulley compatibility, our T10 open-end PU timing belts offer unrivaled convenience for mechanical designers, helping them simplify linear drive design and improve the overall stability of customized automated equipment.

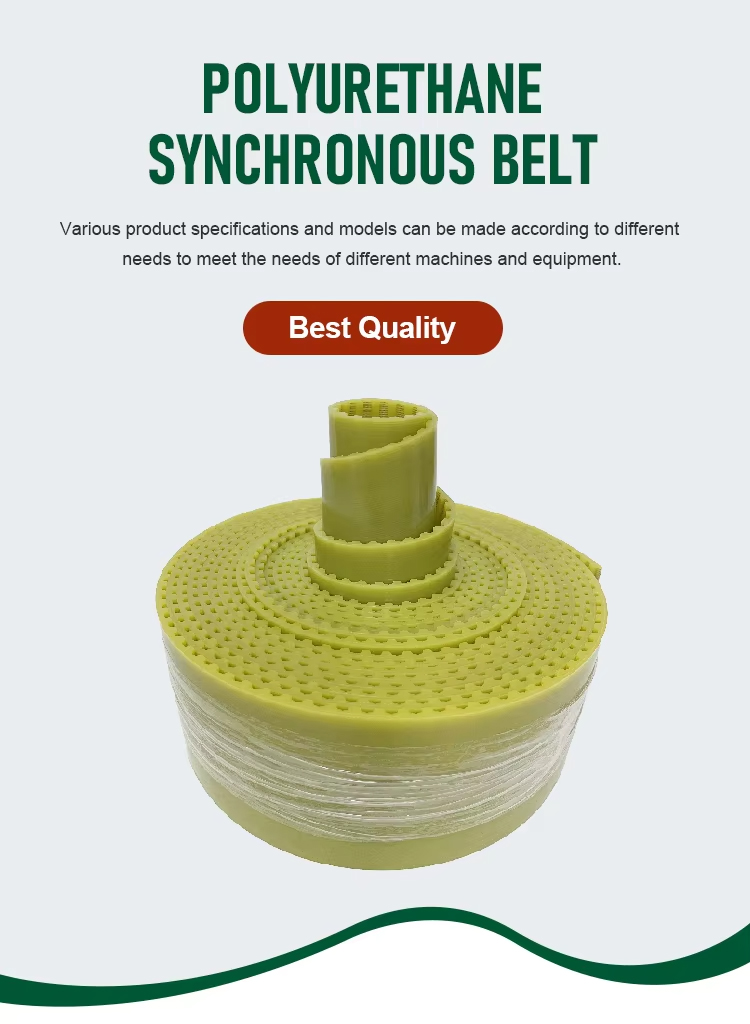

PU Open-End & Endless Timing Belts
PU open-end timing belts come with a full range of tooth profiles, compatible with various manipulator equipment. They feature outstanding wear resistance, oil resistance and anti-aging performance, delivering precise transmission with low noise and minimal maintenance.
PU endless timing belts can be custom-made in various lengths and widths as requested, to meet diverse transmission needs. They are widely used in ceramic & glass processing, food machinery, industrial automation, automobile manufacturing, printing & packaging, woodworking machinery, new energy and other industries.
