6.35mm 90° Wafer Connector Series

2 month ago

6 0 

5 year

Product details

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the 6.35mm 90° Wafer Connector Series. This right-angle wire-to-board wafer connector features a robust 6.35mm pitch, designed for high-current and high-vibration applications. The housing is molded from UL94 V-0 rated PBT or nylon 66, offering excellent heat resistance and mechanical strength. Contacts are stamped from phosphor bronze with selective tin or gold plating, rated up to 9A per circuit. Key specifications: contact resistance <20mΩ, insulation resistance >1000MΩ, dielectric strength 1500V AC, operating temperature -40°C to +105°C. The 90° orientation allows low-profile mating with PCB-mounted headers, ideal for space-constrained assemblies. Available in 2 to 12 circuits with optional friction lock or positive latch. RoHS, REACH compliant, UL recognized (E472792).

Applications include power supplies, battery chargers, electric tools, household appliances, automotive lighting, and industrial control panels. Usage: solder the through-hole pins to PCB using wave soldering (260°C peak). Mate with a corresponding 6.35mm straight wafer header; the locking mechanism provides secure retention. Precautions: do not exceed 9A per circuit, avoid reverse mating, ensure proper PCB hole size (1.8mm recommended). Advantages over competitors: Antenk’s series features reinforced lock strength (≥5kgf retention), brass terminals with extra-thick plating to prevent fretting corrosion. Tight contact alignment (±0.05mm) ensures hassle-free mating. Low MOQs (1,000 units) with no tooling fees for standard circuit counts.

Production process: in-house mold design → injection molding (10 Japan/Taiwan machines) → high-speed stamping (9 presses) → selective plating → automated pin insertion & bending (90° forming) → 100% electrical & dimensional inspection → contact resistance & retention force tests → 48h salt spray test → final QC with lot traceability. Free samples, 2D/3D CAD, 24/7 support. Contact Antenk for custom circuit counts and colors.

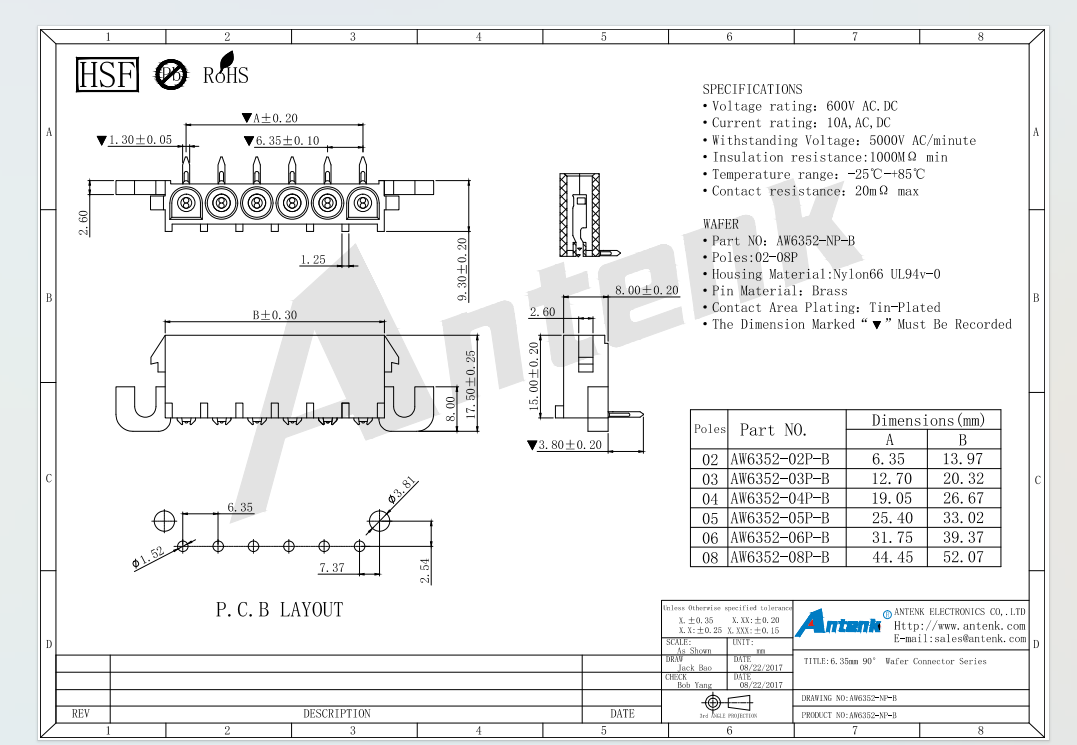

SPECIFICATIONS

● Voltage rating: 600v AC.DC

● Current rating: l0A,AC,DC

● Withstanding Voltage: 50oov AC/minute

● Insulation resistance:l0ooMO min

● Temperature range:-25°C-+85°C

● Contact resistance:20mQ maxWAFER

● Part NO:AW6352-NP-B

●Poles:02-08P

●HousingMaterial:Nylon66 UL94v-0

PinMaterial: Brass

●Contact Area Plating: Tin-Plated

● The Dimension Marked“"Must Be Recorded
