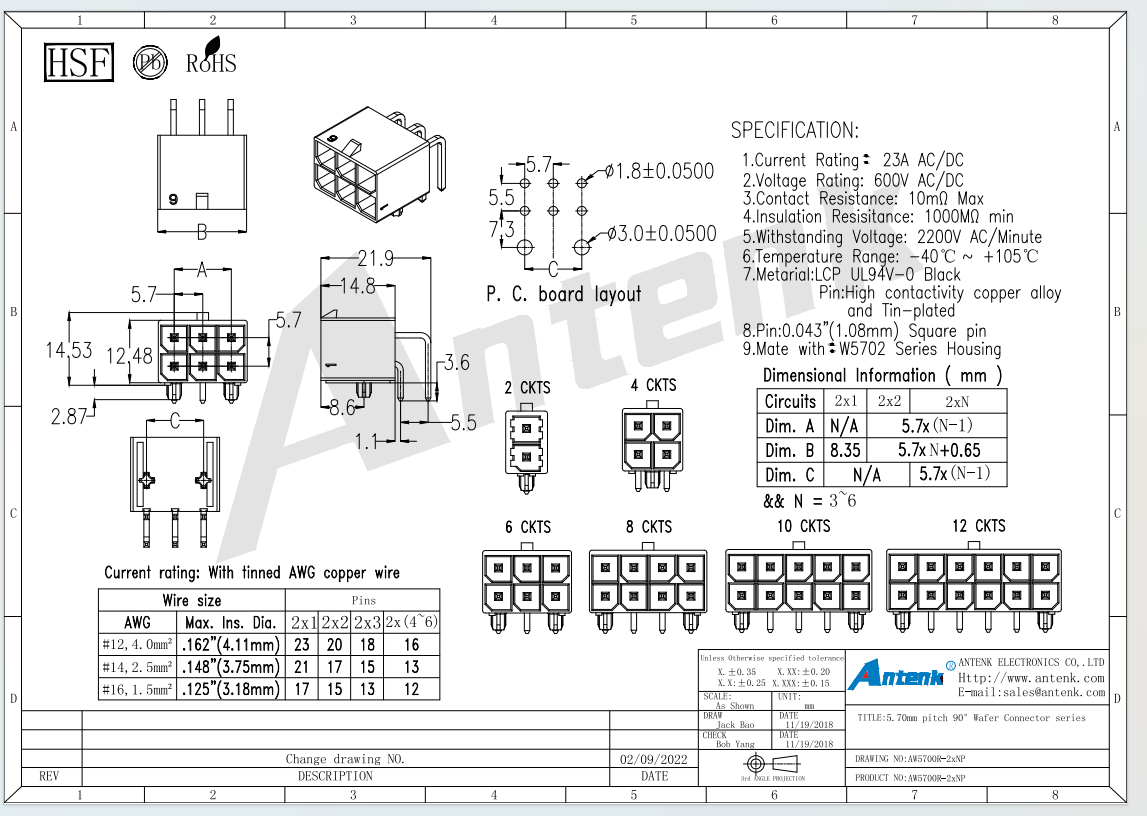

5.70mm pitch 90° Wafer Connector series

2 month ago

5 0 

5 year

Product details

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the 5.70mm Pitch 90° Wafer Connector Series, a right‑angle wire‑to‑board solution for medium‑high power applications. The housing is molded from UL94 V-0 rated high‑temperature PBT or nylon 66, featuring polarization ribs and a secure locking ramp. Contacts are stamped from phosphor bronze with selective tin or gold plating, rated up to 7A per circuit. Key specifications: contact resistance <20mΩ, insulation resistance >1000MΩ, dielectric strength 1500V AC, operating temperature -40°C to +105°C. The 90° orientation allows low‑profile edge mounting, saving PCB space. Available in 2 to 15 circuits. RoHS, REACH compliant, UL recognized (E472792).

Applications include power distribution boards, LED lighting modules, battery management systems, industrial controls, and household appliances. Usage: solder the through‑hole pins to the PCB using wave or reflow soldering (260°C peak). Mate with a corresponding 5.70mm straight wafer header; the latch provides audible lock confirmation. Precautions: do not exceed 7A per circuit, ensure correct mating alignment, avoid reverse polarity. Advantages over competitors: Antenk’s series features reinforced terminal retention (≥4kgf), and tight pin coplanarity (≤0.08mm) to eliminate soldering defects. The 5.70mm pitch offers higher creepage distance than 5.08mm types, improving safety in humid environments. Low MOQs (1,000 units) with no tooling fees for standard circuit counts.

Production process: in‑house mold design → injection molding (10 Japan/Taiwan machines) → high‑speed stamping (9 presses) → selective plating → automated pin insertion & right‑angle forming → 100% electrical & dimensional inspection → contact resistance & retention force tests → 48h salt spray test → final QC with lot traceability. Free samples, 2D/3D CAD drawings, and 24/7 technical support. Contact Antenk for custom colors and circuit counts.
