Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the 2.00mm Pin Header Dual Row Reversed Angle Type. This compact header features a 2.00mm pitch, dual row configuration, and a unique reversed right‑angle orientation where the pins exit the housing opposite to the standard mounting side. This design enables flexible PCB stacking and space‑constrained edge connections. The insulator is molded from high‑temperature UL94 V-0 PBT or nylon 6/6, providing excellent mechanical stability during soldering. Contacts are stamped from phosphor bronze with selective gold or tin plating. Key specifications: current rating 2A per pin, contact resistance <20mΩ, insulation resistance >1000MΩ, dielectric strength 500V AC, operating temperature -40°C to +105°C. RoHS, REACH compliant, UL recognized (E472792).
Applications include compact medical devices, portable instrumentation, communication modules, and battery management systems where reverse angle mating is required. Usage: solder the through‑hole pins to the PCB using wave or hand soldering (peak 260°C). The reversed angle allows the mating female connector to approach from the opposite side, optimizing internal cable routing. Precautions: do not exceed 2A per pin, ensure correct orientation before soldering, avoid excessive mating force. Advantages over competitors: Antenk’s reversed angle design eliminates the need for custom bent cables, reducing assembly complexity. Pin coplanarity is held within 0.08mm to prevent soldering defects. Compared to standard right‑angle headers, the reversed version improves board layout density by up to 30%. Low MOQs (1,000 units) with no tooling fees.

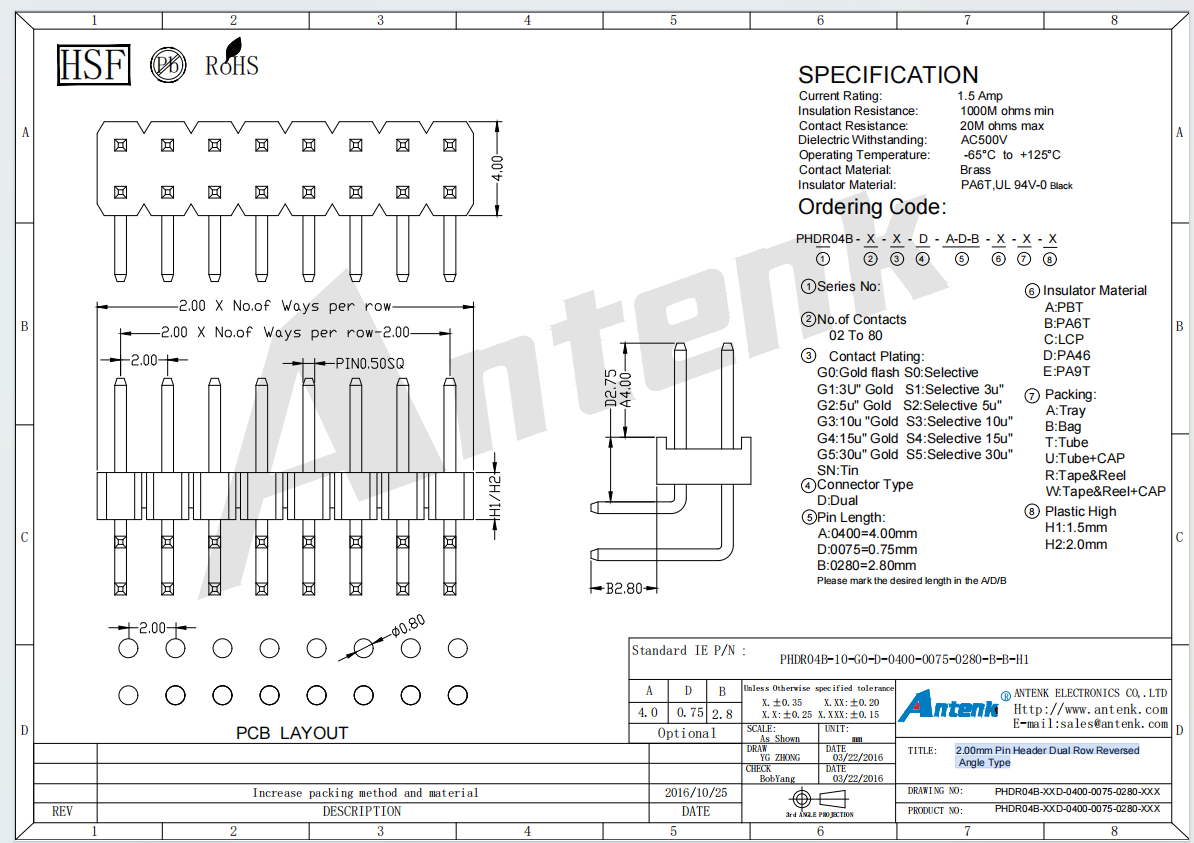

Production process: in‑house mold design → injection molding (10 Japan/Taiwan machines) → high‑speed stamping (9 presses) → selective plating → automated pin insertion & reversed angle forming → 100% coplanarity & pin position inspection → contact resistance & insulation tests → 48h salt spray test → final QC with lot traceability. Free samples, 2D/3D CAD drawings, and 24/7 technical support. Contact Antenk for custom pin counts and plating options.
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in connector and cables. And we export e our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
we can support ODM and OEM service here, we have strong R&D team in Atkconn group.
Q: How many different types of products your company manufactures?
A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
