32-Pin Vertical Female H32 High Power DIN41612

2 month ago

21 0 

5 year

Product details

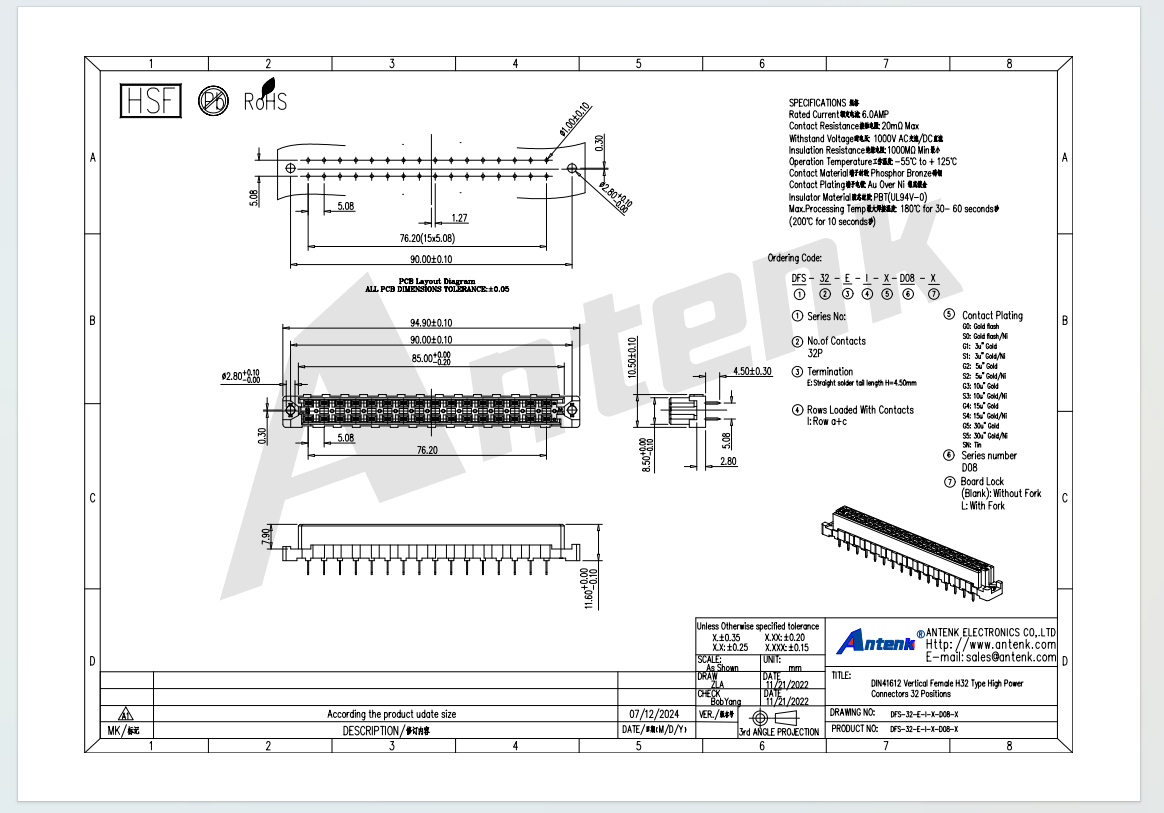

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) introduces the DIN41612 Vertical Female H32 Type High Power Connector with 32 positions. This H32 style receptacle is designed for high density power distribution, featuring 32 enlarged female contacts capable of handling up to 10A to 15A per contact depending on termination. The vertical orientation allows direct backplane mounting. The insulator is molded from high temperature UL94 V-0 PBT or glass filled polyester, providing excellent thermal stability up to 125 degrees Celsius. Power contacts are stamped from thick gauge phosphor bronze with selective gold or silver plating, ensuring low contact resistance below 10 milliohms. Key specifications include insulation resistance above 1000 megohms, dielectric strength 1500V AC, and operating temperature from -55 to +125 degrees Celsius. The product is RoHS and REACH compliant and UL recognized under E472792.

Applications include power supplies, industrial motor drives, battery management systems, telecom base stations, railway electronics, and high power distribution units. Usage method: solder the vertical through hole tails to the PCB using wave or hand soldering. The H32 female receptacle mates with a corresponding right angle male H32 plug, providing secure high power connection with multiple contact points. Precautions: do not exceed rated current per contact, ensure proper alignment before mating, avoid excessive insertion force. Advantages over competitors: Antenks H32 connector uses a hyperboloid or multi leaf female contact design for lower insertion force and higher reliability under vibration. Extra thick gold or silver plating prevents fretting corrosion. The 32 position configuration offers higher power density than standard DIN types. Low MOQs of 500 units with no tooling fees for standard 32 position configuration.

Production process: in house mold design, injection molding on 10 Japanese and Taiwanese machines, high speed stamping of female power contacts on 9 presses, selective gold or silver plating, automated contact insertion, 100 percent contact resistance and coplanarity inspection, dielectric and insulation testing, 48 hour salt spray test, and final QC with lot traceability. Free samples, 2D and 3D CAD drawings, and 24 hour technical support available. Contact Antenk for custom plating and pin lengths.
