PVC High Speed Door
PVC high speed door, Adopt intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

Pharmaceutical workshop                                               Air shower room                                                 Factory exterior doors

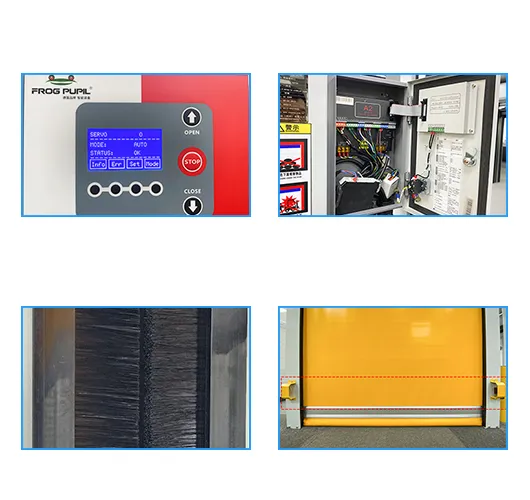

Human-machine interface



Innovative human-machine interfacedesign.Visual operation, real-time displayof running status.Plug-in interface,easyto use and maintain.

Intelligent control system

Equipped with control system and servo high-precision drive unit to ensurethe stable operation, fast and efficient operation of industrial fast rolling shutter products.

Sealing brush

The door frame is equipped with double-rowcard-type sealing brushes, which form afour-sided air-tight structure with the U-shaped bottom edge and the integrateddoor head sealing box, and the fast partitioneffect is better.

Infrared photoelectric

It is equipped with an infrared anti-pinch safetyprotection device as standard, which reboundswhen triggered to ensure safety, in addition,the bottom edge of the airbag and a multi-point pro-tective light curtain are optional.

Remote communication

There are various ports integrated in the control system of  high speed door, such as automatic control interface,external device interface and so on.Among them, the external device terminal has signal receiving and output terminals for opening and closing the door which can be connected to the general control of theAGV vehicle to realize the linkage control of the fast door and the vehicle.

Double/Multi-Door Interlock

Two or more high speed doors are connected with interlocking lines,and the two doors cannot be opened at the same time,that is, only when one door is closed the other door can be opened to ensure that the room is always in a closed state.

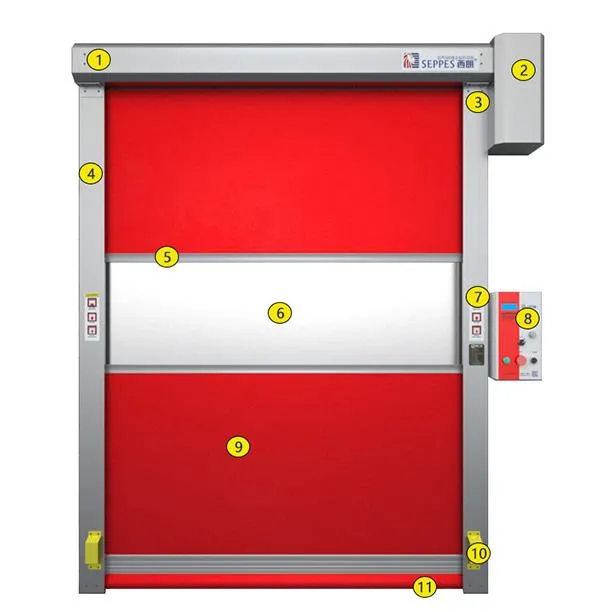

(1) The front box
(2) Motor
(3) Fixed angle iron
(4) Track Aluminum profile wind-resistant ribs
(5) Transparent window
(6) Identification nameplate
(7) Control box
(8) PVC door curtain
(9) Infrared safety photoelectric
(10) U-shaped bottom edge

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm

b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor:
When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Food Company Warehouse

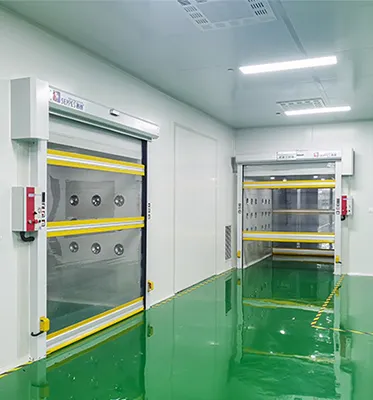

Air Shower Room Transparent High Speed Door


Other Products

FAQ 1: What are high-speed doors?
Answer: High-speed doors are specialized doors used in industrial and commercial settings, designed for fast opening and closing to ensure quick and efficient traffic flow, enhance environmental control, and improve safety. They are ideal for areas requiring rapid access, including warehouses, logistics centers, and manufacturing facilities.

FAQ 2: What materials are high-speed doors made of?
Answer: High-speed doors can be made from various materials, including PVC, steel, and aluminum. The choice of material depends on the application, with PVC being common for interior doors due to its lightweight and speed, and metal options offering greater durability and security for exterior entrances.

FAQ 3: Can high-speed doors be customized?
Answer: Yes, high-speed doors can be customized to meet specific requirements. This includes dimensions, materials, colors, and features such as windows or logos. Customization options vary by manufacturer, so please inquire about your specific needs.

FAQ 4: What is the average installation time for a high-speed door?
Answer: The installation time for a high-speed door can vary based on size, type, and site conditions. On average, installation can take from a few hours to a full day. We recommend professional installation to ensure optimal performance and safety.

FAQ 5: How do high-speed doors operate?
Answer: High-speed doors operate using a motorized mechanism that allows them to open and close rapidly. They can be activated through various methods, including remote controls, motion detectors, and push-buttons, depending on the user's needs and the door's application.

FAQ 6: Are high-speed doors energy efficient?
Answer: Yes, high-speed doors are designed for energy efficiency. Their quick open and close cycle helps maintain controlled environments, reducing energy loss from heating or cooling. Some models also include insulated materials for additional energy savings.

FAQ 7: How do I maintain my high-speed door?
Answer: Regular maintenance is crucial for the longevity and proper functioning of your high-speed door. This includes cleaning the door and sensors, checking for wear and tear, and ensuring the mechanism operates smoothly. We provide a maintenance checklist and recommend professional servicing for optimal performance.

FAQ 8: What safety features do high-speed doors have?
Answer: Safety is a priority for high-speed doors. Features may include built-in sensors to detect obstacles, emergency stop functions, and safety edges to prevent injury or damage. Specific safety features can vary, so please check the product specifications.

FAQ 9: Can high-speed doors be used in cold storage and freezer environments?
Answer: Yes, there are high-speed doors designed specifically for cold storage and freezer environments. These doors are constructed with insulated materials and special seals to maintain temperature control and reduce energy consumption in cold environments.

FAQ 10: How do I order a high-speed door for my facility?
Answer: To order a high-speed door, please provide us with details such as the door size, location, material preferences, and any custom features you require. Contact us directly through our product listing or website for a consultation and quote. We're here to help you select the perfect door solution for your needs.
