16P Male Angle Type standard 12V 13.9mm

2 month ago

7 0 

5 year

Product details

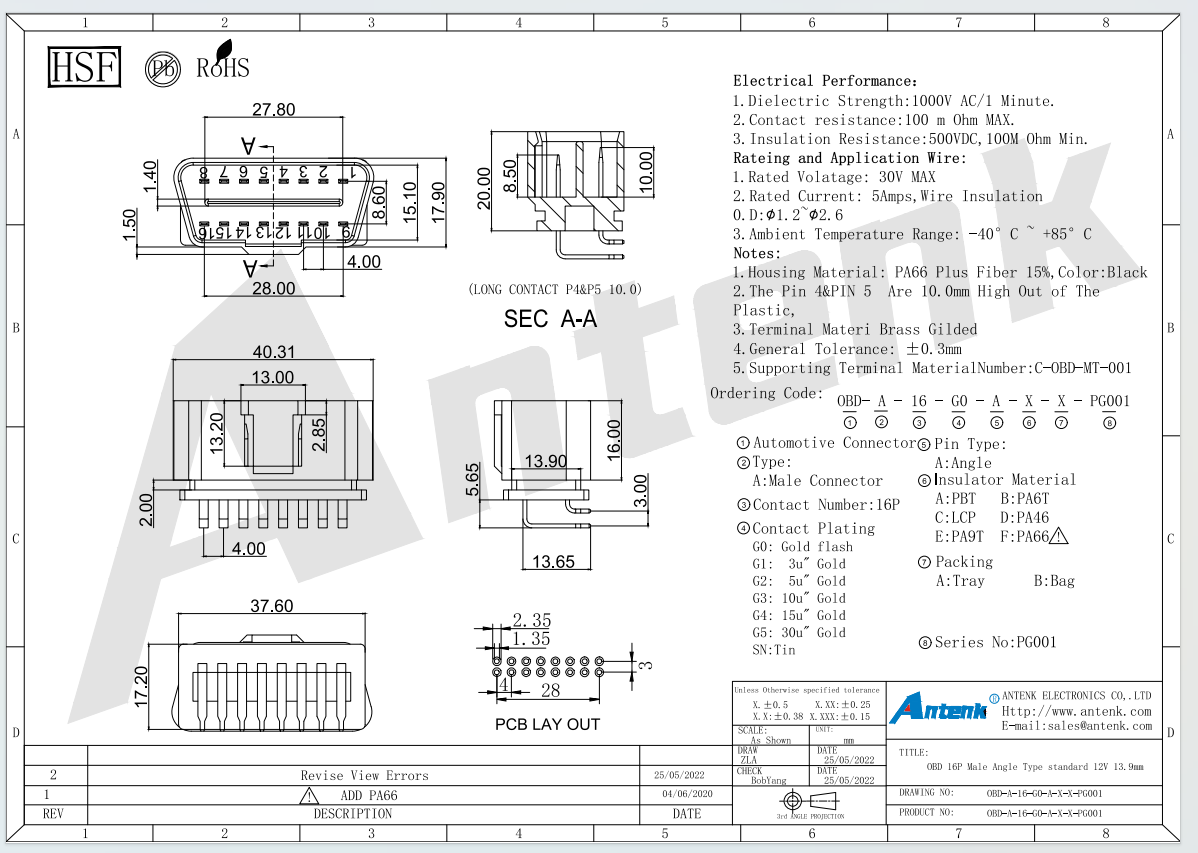

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the OBD 16P Male Angle Type connector, designed for on board diagnostic interfaces complying with SAE J1962 standard. This 16 pin male connector features a right angle orientation with a height of 13.9mm, allowing low profile installation in vehicle diagnostic ports. The housing is molded from high temperature UL94 V-0 PBT or PA66, providing mechanical strength and thermal stability up to 105 degrees Celsius. Contacts are stamped from phosphor bronze with selective gold or tin plating, rated for 12V DC with current capacity up to 5A per pin. Key specifications include contact resistance below 20 milliohms, insulation resistance above 1000 megohms, dielectric strength 500V AC, and operating temperature from -40 to +105 degrees Celsius. The angled design facilitates mating with female OBD receptacles in tight spaces. RoHS and REACH compliant, UL recognized under E472792.

Applications include automotive diagnostic tools, scan tools, fleet management systems, vehicle telematics, and aftermarket testing equipment. Usage method: solder the right angle through hole pins to the PCB using wave or hand soldering. Insert the male connector into the vehicle’s OBD female receptacle until the latch locks. The standard 12V interface supports power and signal transmission. Precautions: do not exceed 5A per pin, ensure correct orientation before insertion, avoid excessive force. Advantages over competitors: Antenks OBD male connector features reinforced latch arms tested to 5000 mating cycles, and tight pin coplanarity within 0.08mm for reliable soldering. The 13.9mm height meets standard OBD clearance requirements. Low MOQs of 1000 units with no tooling fees.

Production process: in house mold design, injection molding on 10 Japanese and Taiwanese machines, high speed stamping of pins on 9 presses, selective gold or tin plating, automated pin insertion and right angle forming, 100 percent electrical continuity and coplanarity inspection, contact resistance and insulation tests, 48 hour salt spray test, and final QC with lot traceability. Free samples, 2D and 3D CAD drawings, and 24 hour technical support available. Contact Antenk for custom plating and colors.
