Product details
HTD5M PU Baffle Integrated Timing Belt is an all-in-one molded synchronous transmission accessory that innovatively combines HTD5M arc-tooth timing base belt and integral anti-rebound baffles, exclusively developed for multi-angle reciprocating feeding and partitioned material conveying in modern light industrial automation equipment. Different from conventional assembled timing belts that require manual glued or riveted partition baffles, this integrated belt adopts one-time injection molding technology to form sturdy integral baffles and 5mm-pitch arc teeth as a single unit. Crafted from high-purity thermoplastic polyurethane and embedded high-density twisted steel tension cords, the product features exceptional tensile stability, outstanding tear resistance and perfect bending flexibility. The specialized arc tooth profile of HTD5M series optimizes contact area with matching pulleys to cut meshing noise and boost torque bearing capacity, while the integrated raised baffles effectively isolate materials to prevent rolling, overlapping and reverse sliding during inclined lifting and horizontal segmented transmission. Tailored for complex multi-angle feeding scenarios, this integrated timing belt is widely applied in electronic component sorting machines, vertical cosmetic filling equipment, miniature hardware classification conveyors and multi-station automated circulating material distribution systems.

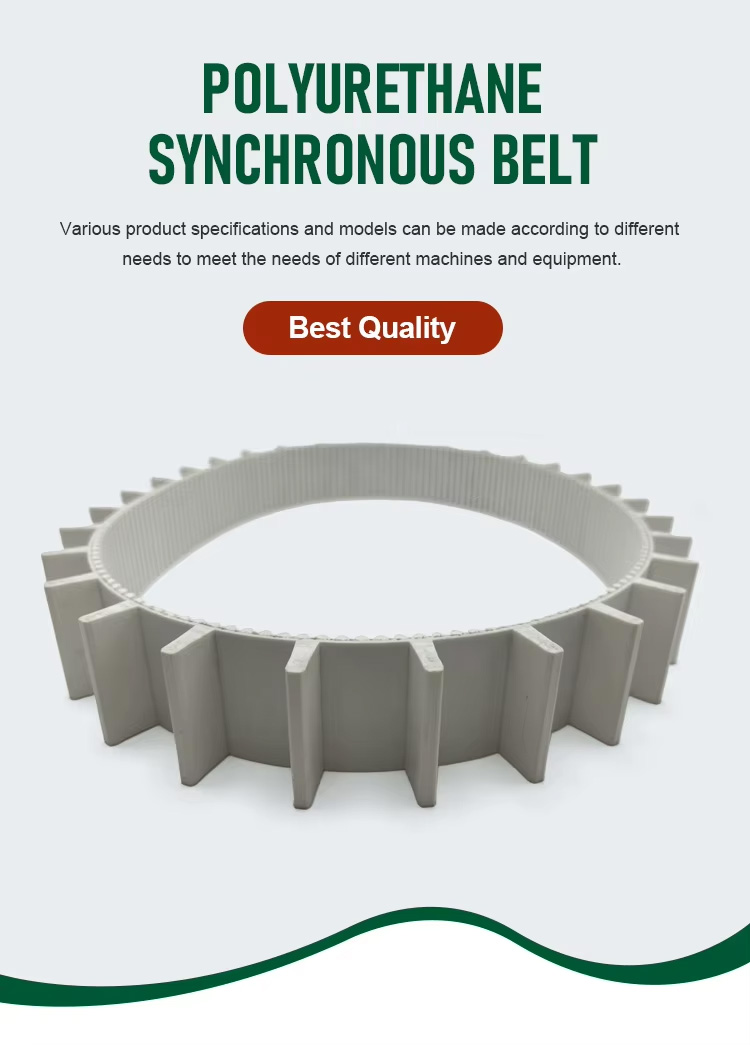

As our flagship integrated feeding solution designed for partitioned material transmission scenarios, Integrated Baffle HTD5M PU Drive Belt completely eliminates the inherent defects of traditional post-installed baffled belts such as adhesive aging, baffle detachment and positioning deviation. The seamless integrated molding process ensures the baffles and toothed base belt share the same stress tolerance, so the partitions will not loosen or fall off even after millions of high-frequency bending and impact cycles. Clients are allowed to customize baffle height, spacing and arrangement mode to adapt to granular electronic parts, bottled daily chemicals and small-sized hardware accessories. We once provided customized Integrated Baffle HTD5M PU Drive Belt for an electronic parts manufacturing enterprise focusing on chip resistors and miniature connectors. The client previously used bonded baffle belts which frequently suffered baffle shedding, causing material mixing and production stagnation. After upgrading to our integrally molded belts, the failure rate of transmission accessories dropped by over 60%, and the material sorting efficiency of multi-station screening equipment was greatly improved.

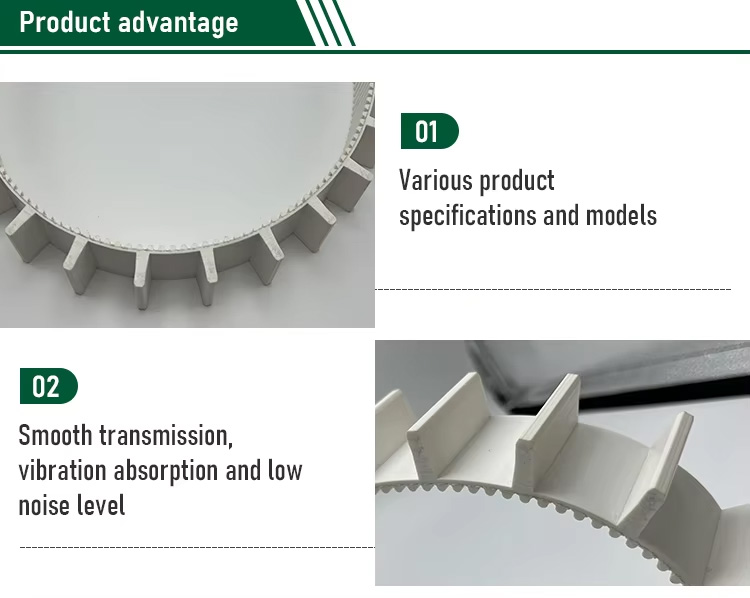

Optimized for heavy-load continuous operation and long-cycle intensive production environments, High Strength HTD5M Formed Timing Belt upgrades both internal tension structure and external molding technology compared with standard baffled timing belts. This reinforced version adopts thickened high-strength steel wire core and enhanced compact PU formula, effectively improving overall anti-stretching performance and baffle compression resistance. The optimized arc tooth root structure disperses instantaneous torque pressure during frequent start-stop and variable-speed operation, avoiding tooth cracking and structural fatigue damage under long-term heavy-load working conditions. Additionally, the surface undergoes smooth finishing treatment to reduce friction loss caused by continuous contact with workpieces and pulleys. Many daily chemical filling factories deploy High Strength HTD5M Formed Timing Belt on vertical lifting filling lines for lotion bottles and perfume containers. Its robust structural stability supports 24-hour uninterrupted cyclic feeding, reducing accessory replacement frequency and lowering overall operational maintenance costs for automated filling workshops.
Covering standardized stocking procurement and universal equipment retrofitting demands across multiple light-industry fields, HTD5M PU Baffle Industrial Transmission Belt serves as a cost-effective universal model for mainstream HTD5M pulley specifications. This industrial-grade timing belt supports direct plug-and-play replacement for most off-the-shelf sorting and conveying equipment, removing the need for extra modification on pulleys and fixed fixtures. Beyond electronic accessories and daily chemical products, this versatile baffled timing belt also adapts to granular plastic parts, tiny fasteners and packaged small commodities, realizing unified feeding and partitioned transmission. For small and medium-sized automation processing factories with mixed types of feeding equipment, HTD5M PU Baffle Industrial Transmission Belt simplifies spare parts inventory management. The unified HTD5M specification can cover most daily maintenance replacement needs, saving procurement time and reducing warehouse stocking pressure for automation accessory purchasers.
We provide comprehensive personalized customization services for HTD5M PU Baffle Integrated Timing Belt, including baffle structural adjustment, tooth profile optimization, endless thermal welding, anti-static surface treatment and arbitrary width cutting. Global industrial buyers can choose anti-drop integrated partition Integrated Baffle HTD5M PU Drive Belt for high-precision electronic component sorting lines, heavy-duty reinforcedHigh Strength HTD5M Formed Timing Belt for intensive daily chemical vertical filling workshops, and universal standardized HTD5M PU Baffle Industrial Transmission Belt for multi-scenario hardware accessory conveying equipment. All finished products undergo baffle pressure resistance testing, high-speed bending fatigue detection and meshing accuracy calibration before delivery. By solving the common pain points of baffle peeling and unstable feeding for automated equipment, our HTD5M integrated baffled timing belts help global light-industry manufacturers stabilize production rhythm and maximize economic benefits.
