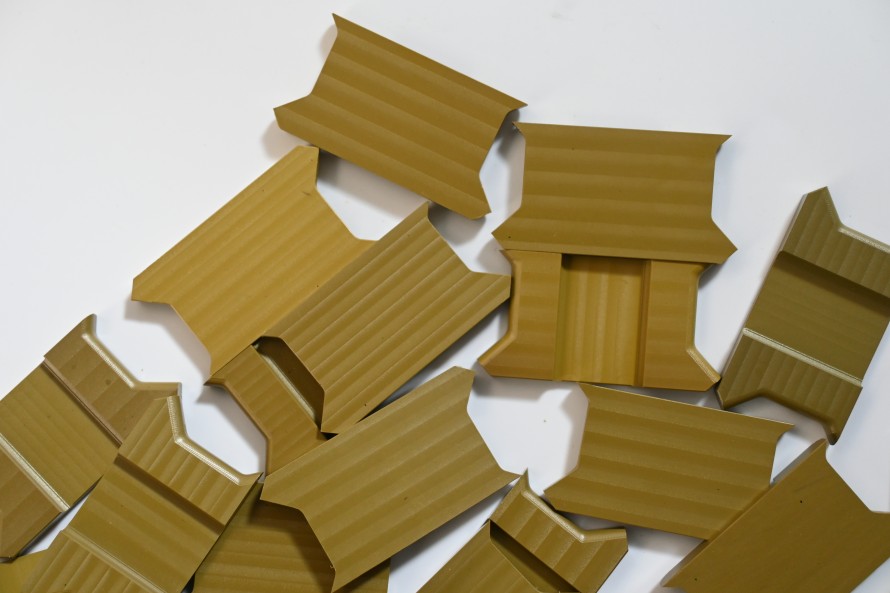

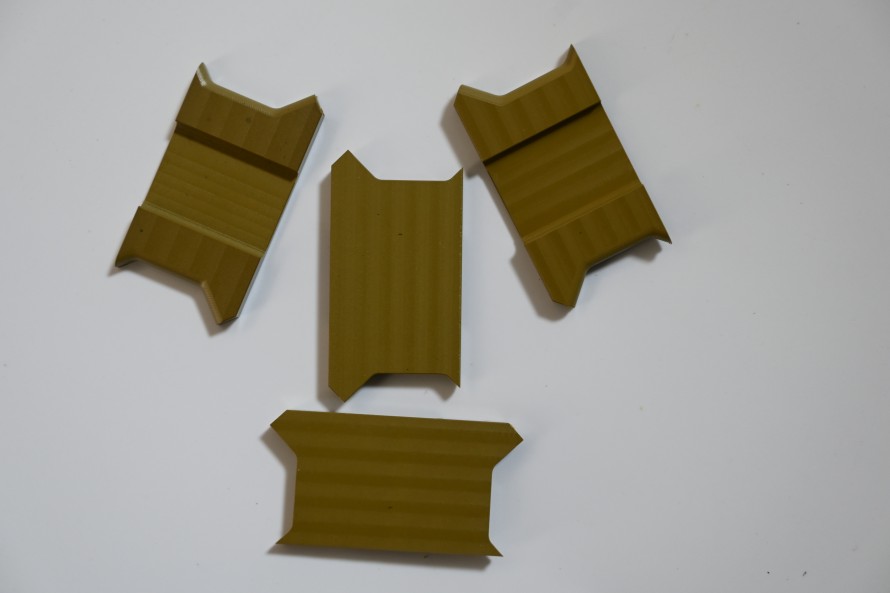

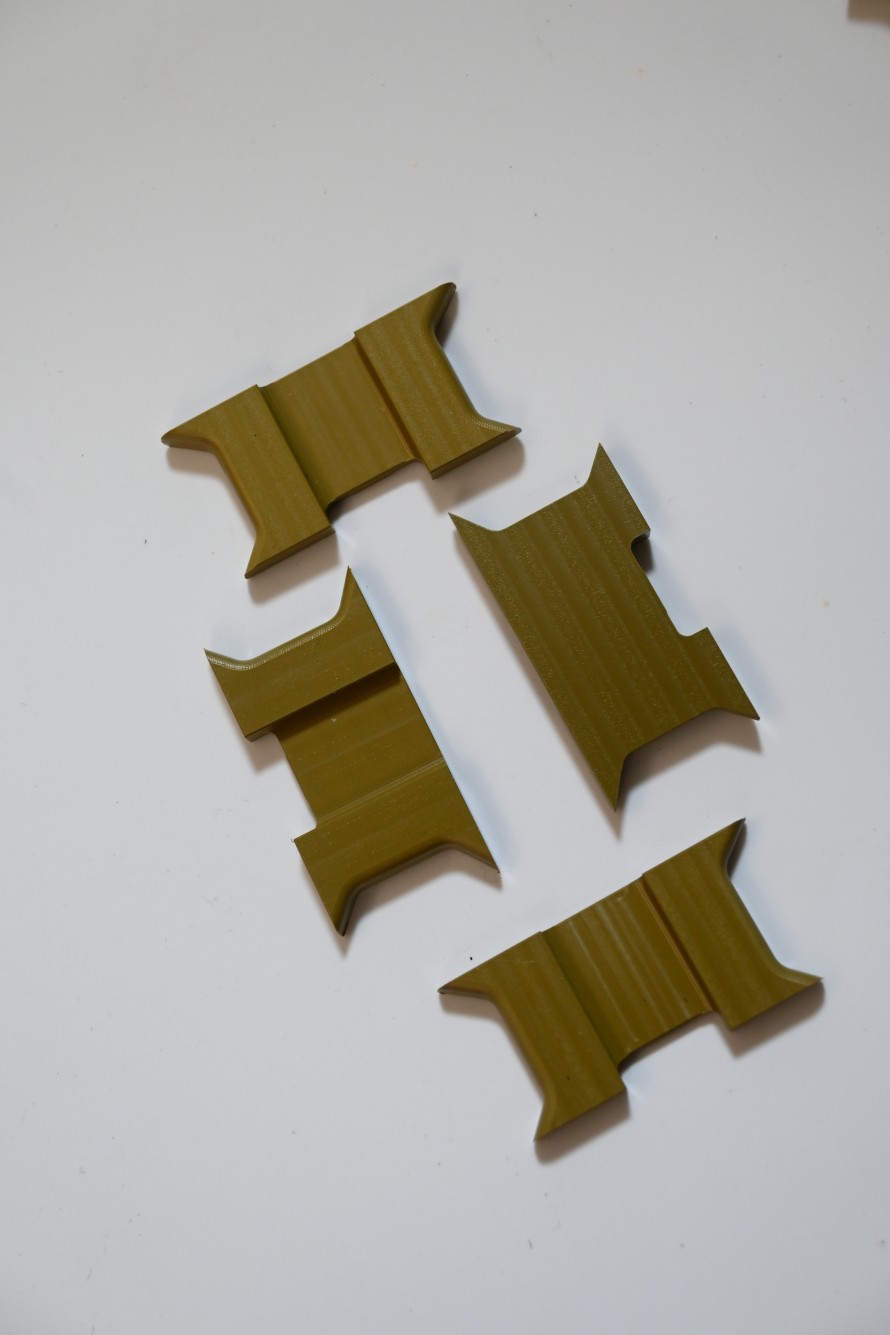

Torlon 4203 PAI spacer
2 month ago
Product details
Analysis of Torlon 4203 Material
I. What is Torlon 4203?
Torlon 4203 is a high-performance polyamide-imide (PAI) engineering plastic renowned for its excellent high-temperature resistance and mechanical strength. This amber-colored, translucent material maintains its performance over long periods at 260°C and can withstand temperatures as high as 300°C for short durations. With a heat deflection temperature of up to 280°C and a flexural strength approaching 200 MPa—combined with excellent wear resistance and dimensional stability—it is an ideal choice for specialized components in the aerospace, automotive, and electronics industries.
II. Processing Methods for Torlon 4203
Conventional machining: Mechanical processes such as turning, milling, and drilling are suitable, though specialized cutting tools are required.
Specialized processing: Grinding and polishing can be used to achieve high-precision surface finishes.
Molding process: Suitable for injection molding, but requires strict control of mold temperature and pressure.
Post-processing: Annealing is typically required to relieve internal stresses.
III. CNC Machining Techniques
CNC machining of Torlon 4203 is entirely feasible, but several key points should be noted:
Use sharp carbide cutting tools with a cutting speed of 200–300 m/min.
Employ a strategy of shallow depths of cut (0.1–0.5 mm) and high feed rates.
The use of coolant is mandatory to prevent overheating.
Post-machining annealing is recommended.
Machining Parameters for Torlon 4203
Torlon 4203 is a high-performance polyimide material characterized by exceptional heat resistance, chemical stability, and mechanical strength. Consequently, it is widely utilized in sectors such as aviation, aerospace, automotive, medical, and general industry. Proper machining requires adherence to the following key parameters:
1. Cutting Speed
Cutting speed refers to the relative speed between the cutting tool and the workpiece. Due to the high hardness and thermal stability of Torlon 4203, the cutting speed must be kept within a relatively low range. Typically, the cutting speed should be maintained between 5 and 30 meters per minute to ensure optimal cutting quality and tool life.
2. Feed Rate
The feed rate refers to the distance the tool advances per revolution during the machining process. Controlling the feed rate is particularly critical, as it directly influences the quality of the machined surface and the magnitude of the cutting forces. For Torlon 4203, the feed rate should be controlled within the range of 0.05 to 0.15 mm/rev to ensure surface quality and manage cutting forces effectively.
3. Depth of Cut
The depth of cut refers to the depth of material removed by the tool in a single pass. For Torlon 4203, the depth of cut should be maintained within the range of 0.2 to 0.5 mm to ensure appropriate cutting forces and high-quality results.
4. Coolant
Torlon 4203 possesses high thermal stability, so excessive coolant is not required during the cutting process. However, using an appropriate amount of coolant during machining can lower processing temperatures, reduce cutting forces, and extend tool life. Therefore, we recommend using a suitable amount of coolant during cutting operations.
5. Tool Selection
Due to the high hardness and heat resistance of Torlon 4203, selecting the right cutting tools is essential. We generally recommend using tungsten carbide tools or polycrystalline diamond (PCD) tools for machining Torlon 4203. Additionally, it is important to monitor tool wear and replace tools promptly to ensure machining quality and maximize tool life.
Key parameters for machining Torlon 4203 include cutting speed, feed rate, depth of cut, coolant usage, and tool selection. These factors should be adjusted and managed according to specific conditions to ensure optimal machining quality and tool longevity.
