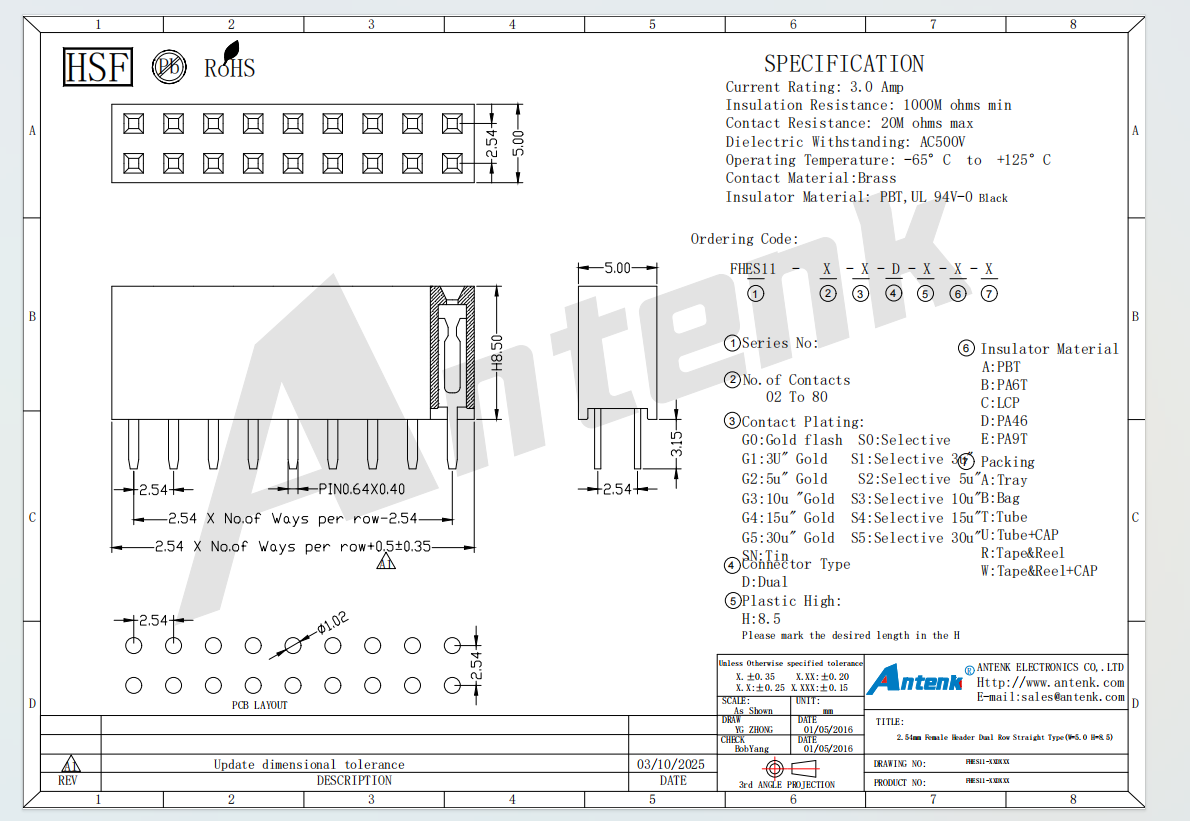

2.54mm Female Header Dual Row Straight Type(W=5.0 H=8.5)

2 month ago

3 0 

5 year

Product details

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the 2.54mm Female Header Dual Row Straight Type with overall width of 5.0mm and height of 8.5mm. This dual row socket features a 2.54mm pitch, straight vertical orientation, and a compact profile designed for space efficient PCB stacking. The insulator is molded from high temperature UL94 V-0 PBT or nylon 6/6, providing mechanical stability and resistance to flux and cleaning solvents. Contacts are stamped from phosphor bronze with selective gold or tin plating on the mating area and pure tin on the solder tails. The female contact uses a dual leaf spring design with a boxed shroud to protect the contact fingers during handling. Key specifications include current rating 3A per contact, contact resistance below 20 milliohms, insulation resistance above 1000 megohms, dielectric strength 500V AC, and operating temperature from -40 to +105 degrees Celsius. The 8.5mm height allows secure mating with standard 2.54mm pin headers of similar or lower profile. RoHS and REACH compliant, UL recognized under E472792.

Applications include industrial control modules, medical monitoring equipment, automotive electronics, test fixtures, and consumer devices requiring reliable board to board connections. Usage method: solder the through hole tails to the PCB using wave or hand soldering. Mate with a 2.54mm dual row pin header; the dual leaf contacts provide a gas tight connection with low insertion force. The 5.0mm width is optimized for standard 0.1 inch grid layouts. Precautions: do not exceed 3A per contact, ensure proper pin alignment before mating, avoid excessive force. Advantages over competitors: Antenks 8.5mm height offers a balanced insertion depth that reduces the risk of short circuits on adjacent components. The dual leaf contact design maintains stable normal force over 1500 mating cycles. Coplanarity is controlled within 0.05mm for uniform soldering. Low MOQs of 1000 units with no tooling fees for standard pin counts.

Production process: in house mold design, injection molding on 10 Japanese and Taiwanese machines, high speed stamping of dual leaf contacts on 9 presses, selective gold or tin plating, automated contact insertion, 100 percent insertion force and coplanarity inspection, contact resistance and insulation tests, 48 hour salt spray test, and final QC with lot traceability. Free samples, 2D and 3D CAD drawings, and 24 hour technical support available. Contact Antenk for custom plating and pin counts.
