MARSHINE 50KN Tension Dynamometer Test
4 week ago
50 KN Alloy Steel Digital Display Tension Meter Dynamometer
Product Feature
High-Strength Alloy Steel Construction
Manufactured from premium alloy steel, the dynamometer offers excellent mechanical strength, impact resistance, and long-term durability. The rugged construction ensures reliable performance under demanding working conditions.50 KN Load Capacity
Designed to measure tensile forces up to 50 KN (5tons), the device is suitable for a wide range of applications, including conductor stringing, cable pulling, lifting operations, and industrial load testing.Digital Display System
Equipped with an easy-to-read digital screen that provides clear real-time load readings, allowing operators to monitor tension values accurately during operation.High Measurement Accuracy
Advanced electronic load cell technology delivers precise force measurement, helping users maintain safe working loads and improve operational efficiency.Lightweight and Portable Design
The compact structure allows convenient transportation and installation, making the MARSHINE Dynamometer For Tension ideal for both field operations and workshop applications.Overload Monitoring Capability
Provides continuous load monitoring to help prevent excessive tension and reduce the risk of equipment damage, cable failure, or structural overload.Low Power Consumption
Designed with an energy-efficient electronic system that supports extended operating periods while maintaining reliable measurement performance.Suitable for Harsh Environments
The durable housing and corrosion-resistant components allow the dynamometer to perform reliably in outdoor construction sites, industrial facilities, and challenging weather conditions.Easy Integration with Pulling and Lifting Equipment
Can be installed between ropes, cables, slings, shackles, winches, and pulling systems to provide accurate force monitoring during operation.Product Application
Technical Parameters
|
Model |
MAR-TM05 |
|
Maximum capacity |
5000 kg |
|
Minimum capacity |
40 kg |
|
Scale interval |
2 kg |
|
Number of scale intervals |
2500 |
|
Precision |
Accuracy Class 0.5 |
|
Power supply |
AA dry batteries*3 |
|
Units |
kg, lb, kN |
|
Material |
Alloy steel |
|

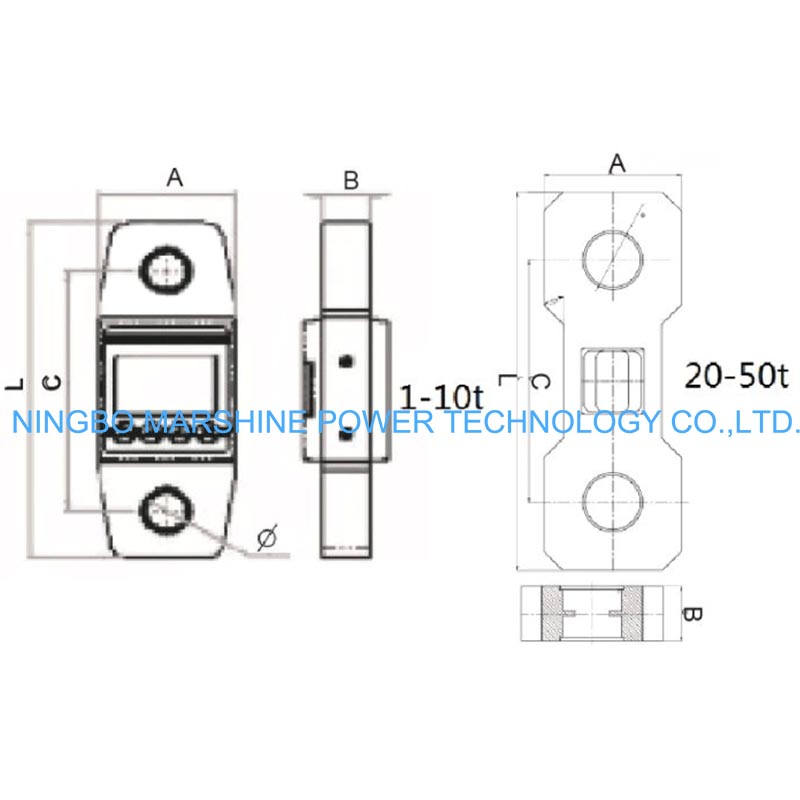

Dimension |
230*90*30 MM |
|
Aperture |
Φ 32 MM |
|
Net weight (excluding shackle weight) |
3.5 kg |
|
Weight including shackle |
6 kg |
PRODUCT DISPLAY
