Product details

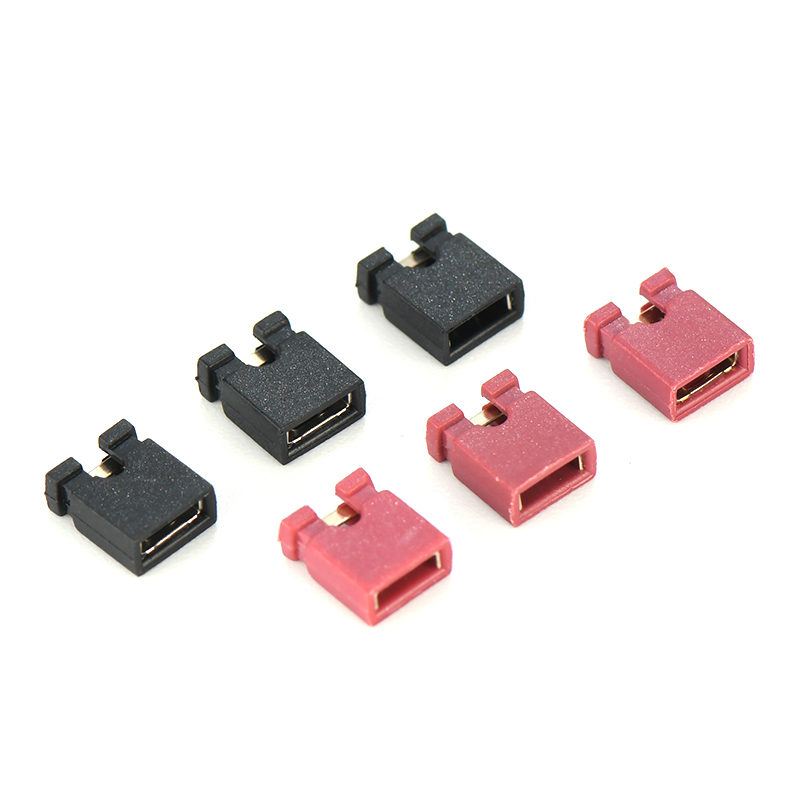

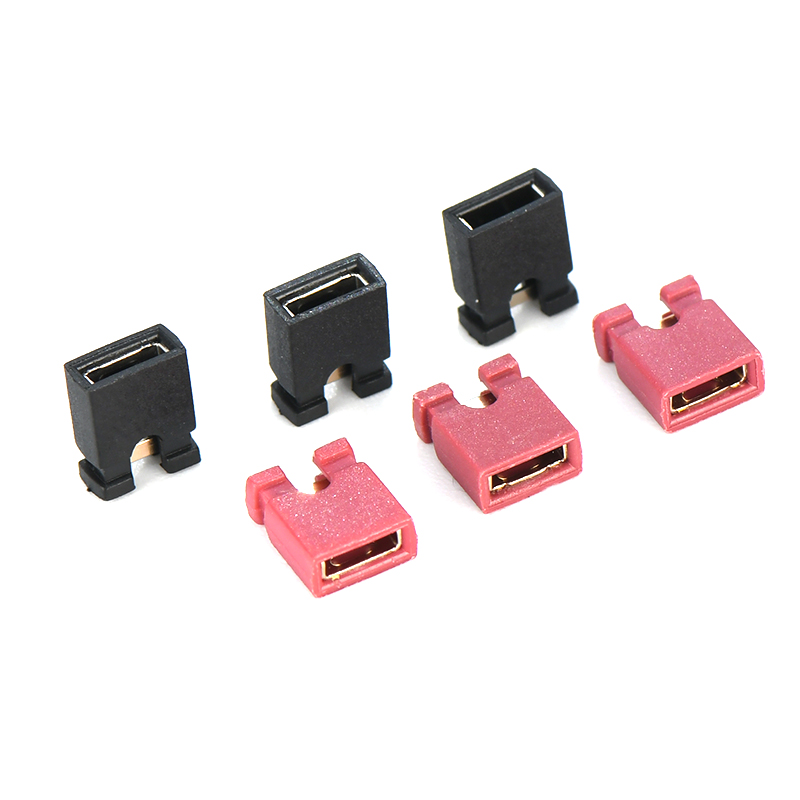

MINI JUMP 2.54 H6.0 Jumper Connector
In compact electronic devices, circuit settings often need to be changed quickly during testing, debugging, or maintenance. A jumper that is too small or difficult to handle can slow down assembly work and increase the chance of incorrect connections.
| Item | Specification |
| Model | MINI JUMP 2.54 H6.0 OPEN (Colorful) |
| Pitch | 2.54mm (0.1") |
| Type | Open Type |
| Height | 6.0mm |
| Poles | 1×2P |
| Housing | PBT+GF / Polyester, UL94V-0 |
| Contact | Brass / Phosphor Bronze |
| Plating | Matte Tin / Au over Ni |
| Rated Voltage | 250V AC/DC |
| Rated Current | 3A per Pole |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Withstand Voltage | 1000V AC / 1 min |
| Operating Temperature | -40℃ ~ +105℃ |
| Mating Cycles | ≥ 50 times |
| Compliance | RoHS, Halogen Free |
| Color | Black, Red, Blue, Green, Yellow, White |
The MINI JUMP 2.54 H6.0 Jumper Connector is designed to make circuit bridging simple and reliable. With its 2.54mm pitch and higher H6.0 profile, it is easier to grip by hand and more convenient to install on densely populated PCBs.
Easy Handling in Tight PCB Layouts
When components are packed closely together, technicians need a jumper that can be removed and reinstalled without damaging nearby parts. The raised H6.0 structure improves accessibility and helps speed up maintenance and configuration work.
This MINI JUMP 2.54 H6.0 Open model is especially practical for:
Computer motherboards
Industrial control boards
Communication equipment
Security and monitoring devices
Testing and debugging systems
Colorful Housing Helps Reduce Wiring Mistakes
In production lines and repair environments, visual identification matters. The 2.54mm Colorful Jumper Cap H6.0 allows different functions or circuit settings to be identified quickly, helping reduce confusion during troubleshooting or batch assembly.
As a dependable Jumper Cap, it provides stable contact while also improving operational efficiency for technicians working with multiple jumper positions.
Stable Contact Performance for Repeated Use
A jumper connector is a small component, but it directly affects circuit continuity. The MINI JUMP 2.54 H6.0 uses a firm internal contact structure to maintain consistent conductivity even after repeated insertion and removal.
For projects that require reliable PCB configuration, this Jumper Connector offers:
1. Secure pin retention
2. Smooth insertion and removal
3. Stable electrical conductivity
4. Durable housing for long service life
It is also suitable for applications related to jumper connector 2.54 mm systems that require compact and easy-to-operate circuit bridging solutions.
Typical Applications
This connector is widely used in electronic products that require manual circuit selection or configuration adjustment.
PC motherboards and expansion cards
Industrial automation controllers
Networking and communication devices
Smart home electronics
Security monitoring equipment
Electronic testing instruments
Why Choose YZK Electronics
Dongguan Yangzhankang Electronics Co., Ltd. focuses on reliable connector solutions for electronic manufacturing. We provide stable production capability, strict quality inspection, and flexible OEM customization support for global customers.
Our advantages include:
Automated production lines
Consistent quality control
Fast sample support
Flexible customization options
Stable delivery capability
Technical support for project development
The MINI JUMP 2.54 H6.0 Jumper Connector is a practical choice for manufacturers who need compact, durable, and easy-to-use jumper solutions for modern electronic devices.
