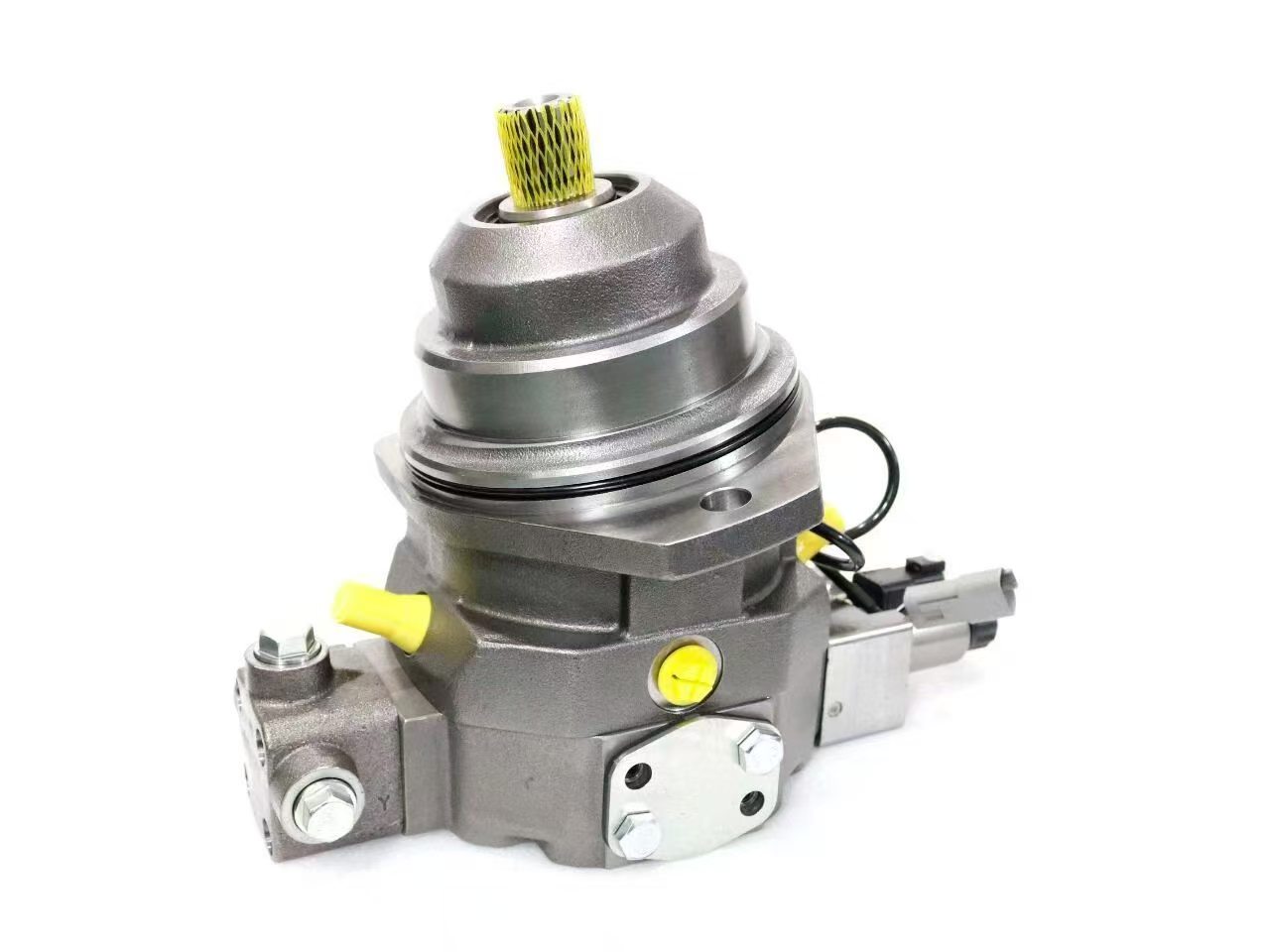

A6VE55EP Series Variable Displacement Piston Motor

Detailed Specification

The A6VE55EP is a bent‑axis axial tapered piston variable displacement motor manufactured by Bosch Rexroth. Designed for open‑circuit and closed‑circuit hydrostatic transmissions, it features plug‑in mounting, high operating pressure and high power density, and is widely used in mobile machinery.

1. Model Code Explanation (A6VE55EP)

- A6VE: Series designation, plug‑in variable displacement motor

- 55: Nominal displacement: 55 cm³/r

- EP: Control type, electro‑hydraulic proportional variable control (infinitely variable displacement down to 0)

2. Key Technical Parameters (Size 55, 63/65 Series)

- Nominal displacement: 55 cm³/r

- Nominal pressure: 400 bar; peak pressure: 450 bar

- Maximum speed: approx. 2400 rpm (subject to inlet flow rate)

- Maximum flow rate: approx. 244 L/min

- Weight: approx. 26 kg

- Mounting style: middle casing flange, plug‑in installation into gearbox for compact layout

3. Structure & Features

- Bent‑axis design with tapered piston rotating assembly, delivering high torque and high rotational speed

- Infinitely variable displacement from maximum Vg down to 0, enabling wide speed regulation range

- Output performance:

- Rotational speed: determined by pump flow and motor displacement

- Torque: increases with pressure differential and displacement

- Easy plug‑in installation into gearbox without complex alignment

- Compatible with both open and closed hydraulic circuits

- Optional accessories: flushing valve, charge pressure valve, counterbalance valve, speed sensor

4. Typical Applications

- Mobile machinery: excavators, loaders, bulldozers (wheel / track drive)

- Cranes, forklifts, aerial work platforms

- Industrial hydraulics: injection molding machines, machine tools, mining equipment

5. Common Model Variants

- A6VE55EP1/63W‑VZL020B

- A6VE55EP2/65W‑VZL027FPB‑SK
