Product details
Core Product Attributes
Product Name :Hot Dip Galvanized Street Light Pole Q235 Steel 3-15m
Material: Q235 Carbon Steel (Optional Q345 Steel)
Height:3m-15m (Customizable, Standard: 6m/8m/10m)
Shape:Square / Tapered / Octagonal (Customizable)
Arm Type:Single Arm / Double Arm (Arm Length: 0.5m-2m)
Surface Treatment:Hot Dip Galvanized (Zinc Layer: ≥85μm) + Optional Powder Coating
Wall Thickness:3mm-8mm (Adjustable by Height & Load)
Flange Size:260*260mm/300x300mm / 400x400mm / 500x500mm (Customizable)
Anti-Corrosion Grade:ISO 1461 (Salt Spray Test ≥2000 Hours)
Service Life:20+ Years
Application:Municipal Engineering, Highway, Roadway, Solar/LED Street Light, Parking Lot, Stadium
MOQ:1 Sets (Negotiable for Large Projects)
Certification:ISO 9001, CE, SGS,IP66.IK10 (If Available)
Customization:Size, Shape, Arm Type, Color, Logo, Flange Size
Product Description
Superior Anti-Corrosion Performance: Full hot dip galvanization process with ≥85μm zinc layer, compliant with ISO 1461 standard. Resists rust, moisture and harsh weather (coastal, rainy, high-temperature areas), ensuring 20+ years service life.
High-Strength Q235 Steel: Selected high-quality carbon steel for stable structure, strong load-bearing capacity (supports 5-20kg lighting fixtures) and wind resistance (up to 160km/h, suitable for high-wind regions).
Customizable Design: Flexible options for height (3m-15m), shape (square/tapered/octagonal), arm type (single/double), flange size and color (powder coating available). Meets various project requirements.
Easy Installation: Pre-drilled flange base with matching bolts, simple assembly steps. Professional installation drawing provided for free.
Wide Application: Perfect for municipal roads, highways, parking lots, stadiums, residential areas, solar/LED street light supporting, etc.

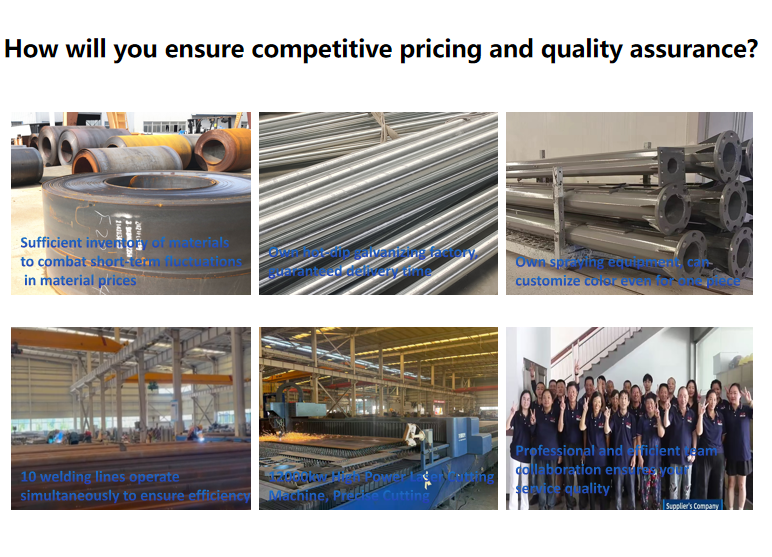

Factory Direct Supply: 16+ years of manufacturing experience in street light poles, no middlemen
Strict Quality Control: Each pole undergoes 3 inspections
Customer benefits
• Procurement costs are reduced by 20%, with no frequent replacement costs for long-term use
• The project implementation cycle is shortened by 40%, making installation hassle-free and effortless
• After-sales issues have decreased by 90%, resulting in an improvement in both word-of-mouth and repeat purchase rate
• Multi-size adaptability, easily undertaking various municipal lighting engineering orders
Supporting evidence guarantee
• CE+ISO+SGS triple certification, meeting international municipal engineering quality standards
• We have provided services for projects such as the renovation of old street lamps in Europe and the Lekki Deep Sea Port in Nigeria, with a cumulative delivery of over 30,000+ poles. Our quality has been verified through practical use, and dealers have reported a 50% increase in repurchase rates.

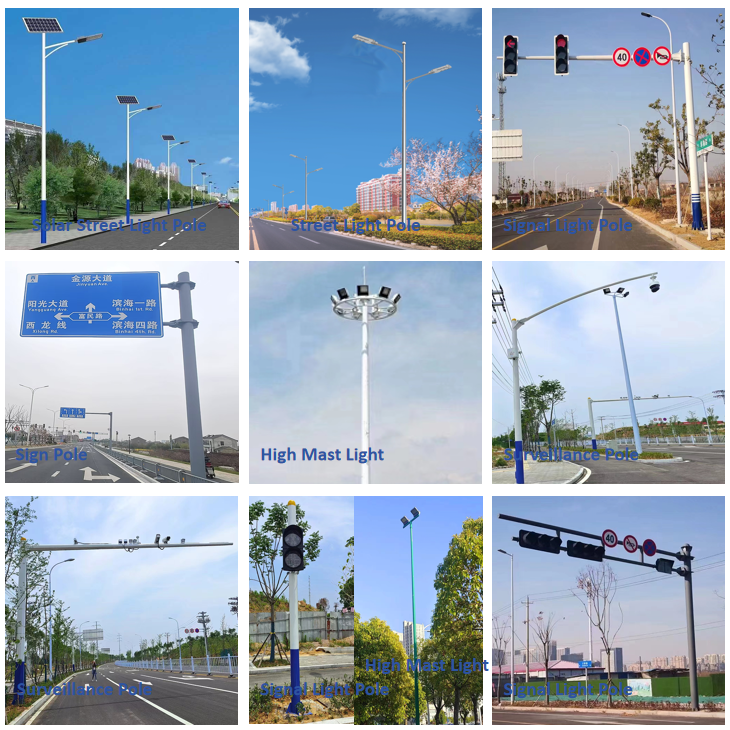

Types of poles:
street light poles, solar street light poles, garden light poles, high poles, signal light poles, traffic signal poles, surveillance poles, signpost poles, pedestrian light poles, single-arm light poles, double-arm light poles, irregular-shaped light poles, gantry frames, height limit frames, and various other types of poles

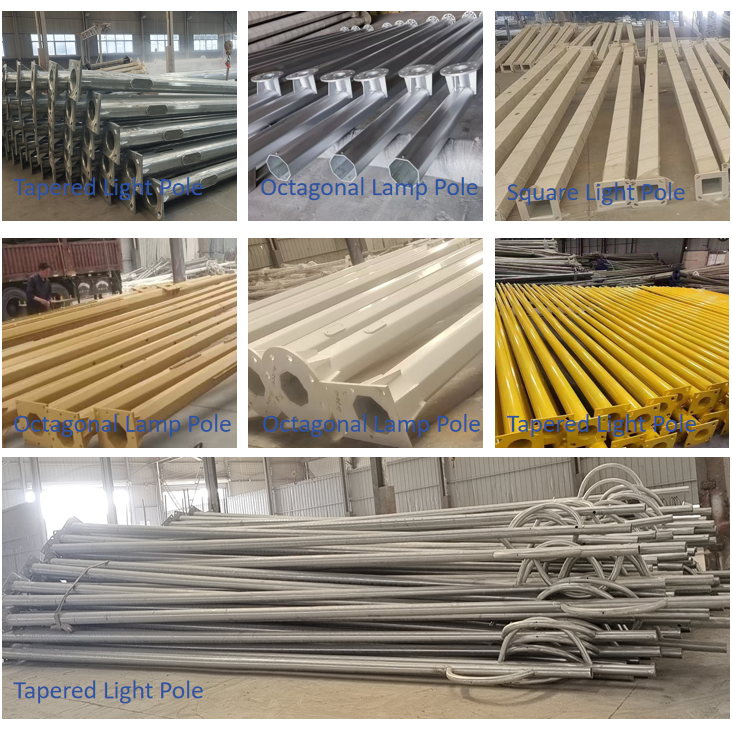

These poles are classified as:
Conical Rod, Round Rod, Equal Diameter Rod, Square Rod, Hexagonal Rod, Octagonal Rod, Dodecagonal Rod, Polygonal Rod, Adjustable Rod, Folding Rod
Custom-shaped lampposts
