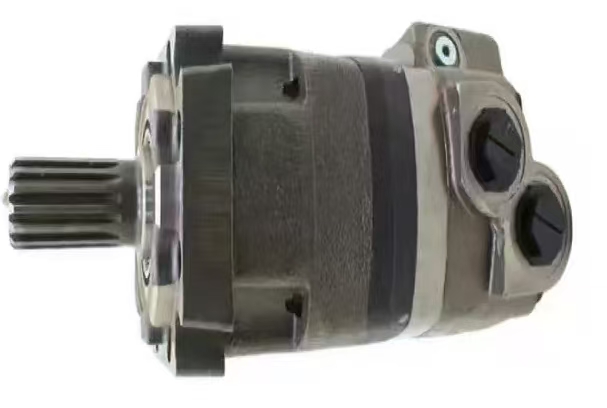

Eaton 109-1119-006 Hydraulic Motor – Details

The Eaton 109-1119-006 is a low-speed, high-torque gerotor hydraulic motor, part of the Char-Lynn VIS 40 series. The following technical information is based on standard Eaton catalogs. Always refer to the motor nameplate or the latest official documentation for exact specifications.

---

1. Model Code Breakdown (Typical)

· 109 – VIS series motor (gerotor design)

· 1119 – Base model, corresponding to a displacement of 40.6 cm³/rev (VIS 40)

· 006 – Configuration code, usually indicating:

· Shaft: 1 inch straight shaft with parallel key

· Mounting flange: SAE A 2-bolt flange (pilot diameter 82.55 mm)

· Ports: Side standard ports (commonly G 1/2 or SAE 8)

2. Technical Specifications (Typical VIS 40 values)

Item Metric Imperial

Displacement 40.6 cm³/rev 2.48 in³/rev

Max. continuous pressure 140 bar 2030 psi

Max. intermittent pressure 175 bar 2540 psi

Peak pressure 210 bar 3045 psi

Max. continuous torque approx. 92 Nm 814 lb-in

Max. intermittent torque approx. 115 Nm 1018 lb-in

Max. continuous flow 30 L/min 7.9 US gpm

Max. continuous speed approx. 730 rpm –

Max. output power approx. 7 kW 9.4 hp

Weight (approx.) 5.9 kg 13 lb

Note: Speed and flow are theoretical values without back pressure. Actual allowable speed may be slightly lower depending on back pressure and oil temperature.

3. Structure and Interfaces

· Motor type: Gerotor motor, shaft distribution valve, high volumetric efficiency, strong contamination tolerance.

· Mounting flange: SAE A 2-hole (bolt hole pitch 106.4 mm, pilot diameter 82.55 mm).

· Output shaft: Straight shaft, diameter 1 inch (25.4 mm), effective length approx. 63 mm, with 1/4 inch square key.

· Ports: Side arrangement; common thread sizes are G 1/2 (BSPP) or 7/8-14 UNF (SAE #8), with O-ring seal.

· Drain port: VIS series typically has no external drain line; internal drain occurs through the gerotor cavity (confirm actual configuration).

4. Typical Applications

This medium-displacement VIS motor is widely used in applications requiring low speed, high torque and a compact envelope, such as:

· Agricultural machinery (sprayers, hose-reel irrigation systems, augers)

· Side brush drives on industrial sweepers, scrubber drives

· Small winches and sprocket drives

· Conveyor belts, mixers, auxiliary drives for crushers

· Replacement or repair of older Char-Lynn S series / H series motors in the medium displacement range

5. Additional Notes

· This motor has a long production history. Currently, Eaton may have incorporated it into the VIS 40 standard product line; 109-1119-006 remains an orderable valid part number or may have been superseded by a new one.

· To order or verify a replacement model, provide the complete number to an Eaton distributor, or refer to the latest Eaton Char-Lynn VIS motor catalog (E-MOLO-MC001-E1).

· When using it as a service replacement, always check that the shaft extension dimensions, mounting flange pilot diameter, and port thread type are exactly the same to avoid installation problems.

EATON 109‑1119‑006 Hydraulic Motor

This high‑torque hydraulic motor is a core actuator of the whole hydraulic system. It is commonly matched with a gear box to form a drive assembly, and works together with the hydraulic pump and hydraulic valve to realize stable power output for construction machinery such as excavators and loaders

I. Product Positioning and Series Affiliation

• Product Positioning: The EATON 109-1119-006 is a hydraulic motor manufactured by Eaton Corporation, likely falling under a specific model within the Eaton 4000 or 2000 series (specific series confirmation requires reference to Eaton's official product catalog).

• Series Characteristics: Eaton's hydraulic motor series are renowned for their high performance, reliability, and wide range of applications. These motors typically employ advanced gear designs (such as Geroler gear sets) to ensure smooth and reliable operation under high pressure.

II. Technical Specifications and Performance Parameters

• Displacement Range: While the exact displacement of the 109-1119-006 is not directly available, Eaton's motors in the same series typically offer a displacement range of 50-1250 mL/rev, catering to various working conditions.

• Pressure Ratings: Continuous working pressure can reach up to 20 MPa (for some models), with higher peak pressures achievable, ensuring stable operation under high-pressure environments.

• Speed and Torque: Provides a wide speed range with excellent low-speed stability; simultaneously, it delivers high torque output to meet heavy-duty application requirements.

• Efficiency: Mechanical efficiency exceeds 85%, ensuring efficient energy utilization.

III. Structural and Design Features

• Gear Design: Adopts an advanced internal gearing design (such as Geroler gear sets) to ensure low starting pressure, smooth operation, and high efficiency.

• Bearing System: The output shaft utilizes tapered roller bearings or high-load-capacity rolling bearings to support high radial/axial forces, extending service life.

• Sealing Design: The shaft seal design can withstand high-pressure reverse oil flow, preventing leakage and ensuring long-term stable operation.

• Port Distribution: Employs axial or end-face port distribution designs to ensure precise oil distribution under high pressure, improving volumetric efficiency.

IV. Application Areas

• Construction Machinery: Used in walking drive systems for excavators, loaders, and road rollers, providing stable and efficient walking power for these equipment.

• Agricultural Machinery: Applied in hydraulic transmissions for combine harvesters and tractors, enhancing agricultural production efficiency.

• Industrial Machinery: Suitable for rotary or linear drives in injection molding machines, presses, and machine tools, meeting diverse industrial production needs.

• Marine Industry: Serves as an auxiliary power unit for deck machinery and propulsion systems in ships, supporting various ship operation requirements.

V. Certifications and Standards

• Quality Certifications: The EATON 109-1119-006 Hydraulic Motor may be certified by international quality standards such as ISO9001, ensuring product reliability and stability.

• Safety Standards: Complies with relevant industry safety standards to ensure safety during use.

VI. Customization Services and Support

• Customization Services: Eaton offers customization services to adjust motor specifications and parameters according to specific customer needs, meeting requirements for special application scenarios.

• Technical Support: Provides comprehensive technical support and after-sales service, including guidance on product selection, installation and commissioning, and maintenance.
