2.54mm Female Header Dual Row Angle Type H:8.5

4 week ago

3 0 

5 year

Product details

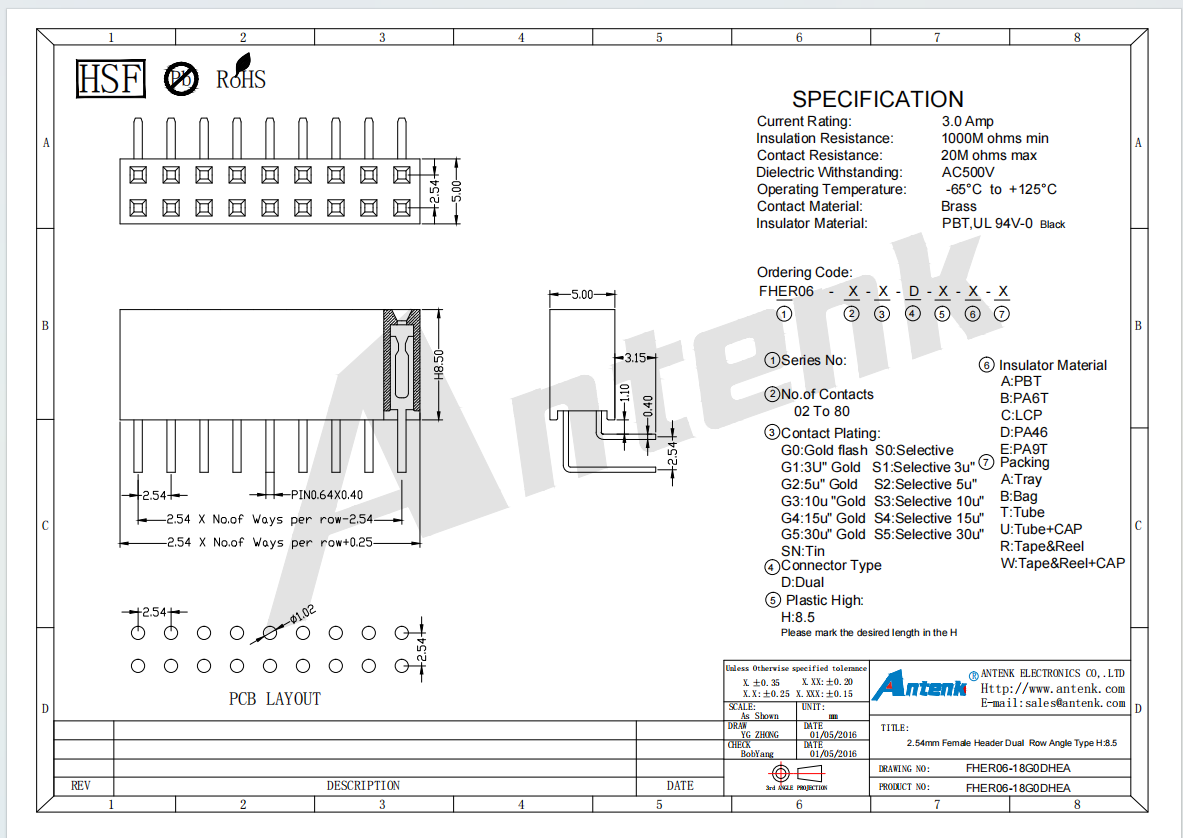

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the 2.54mm Female Header Dual Row Angle Type with an overall height of 8.5mm. This right angle socket features a 2.54mm pitch, dual row configuration, and 90 degree bent solder tails, designed for parallel PCB mounting with perpendicular mating to male pin headers. The insulator is molded from high temperature UL94 V-0 PBT in black, offering excellent chemical resistance and dimensional stability. Contacts are stamped from brass with selective gold or tin over nickel plating. Per the attached datasheet, key specifications include current rating 3.0A per contact, contact resistance 20 milliohms max, insulation resistance 1000 megohms min, dielectric withstanding voltage 500V AC, and an extended operating temperature range from -65°C to +125°C, suitable for harsh environments. The dual leaf spring contact design ensures reliable gas tight connection with low insertion force. The 8.5mm height provides ample mating clearance while maintaining a low profile. RoHS and REACH compliant, UL recognized under E472792.

Applications include industrial control systems, automotive electronics, medical devices, communication equipment, and aerospace instrumentation where wide temperature tolerance and right angle board mounting are required. Usage method: solder the through hole pins to the PCB using wave or hand soldering. The right angle tails exit parallel to the board, allowing the mating male header to be inserted perpendicularly. Mate with a 2.54mm dual row pin header of matching height. Precautions: do not exceed 3.0A per contact, ensure correct orientation before soldering, avoid excessive insertion force. Advantages over competitors: Antenks 8.5mm height offers a balance between board clearance and stacking height, while the -65°C to +125°C operating range exceeds standard commercial grades. The dual leaf spring contacts maintain stable normal force over 1500 mating cycles. Low MOQs of 1000 units with no tooling fees for standard pin counts (2 to 80 pins).

Production process: in house mold design, injection molding on 10 Japanese and Taiwanese machines using PBT (UL94 V-0), high speed stamping of brass contacts on 9 presses, selective gold or tin plating, automated contact insertion and right angle forming, 100 percent coplanarity and insertion force inspection, contact resistance (≤20mΩ) and insulation resistance (≥1000MΩ) testing, dielectric withstand (500V AC) test, 48 hour salt spray test, and final QC with lot traceability. Free samples, 2D and 3D CAD drawings, and 24 hour technical support available. Contact Antenk for custom plating options (gold flash, selective, 3u to 30u gold, or tin) and pin counts.
