VH3.96mm 180° Wafer Connector Series

4 week ago

2 0 

5 year

Product details

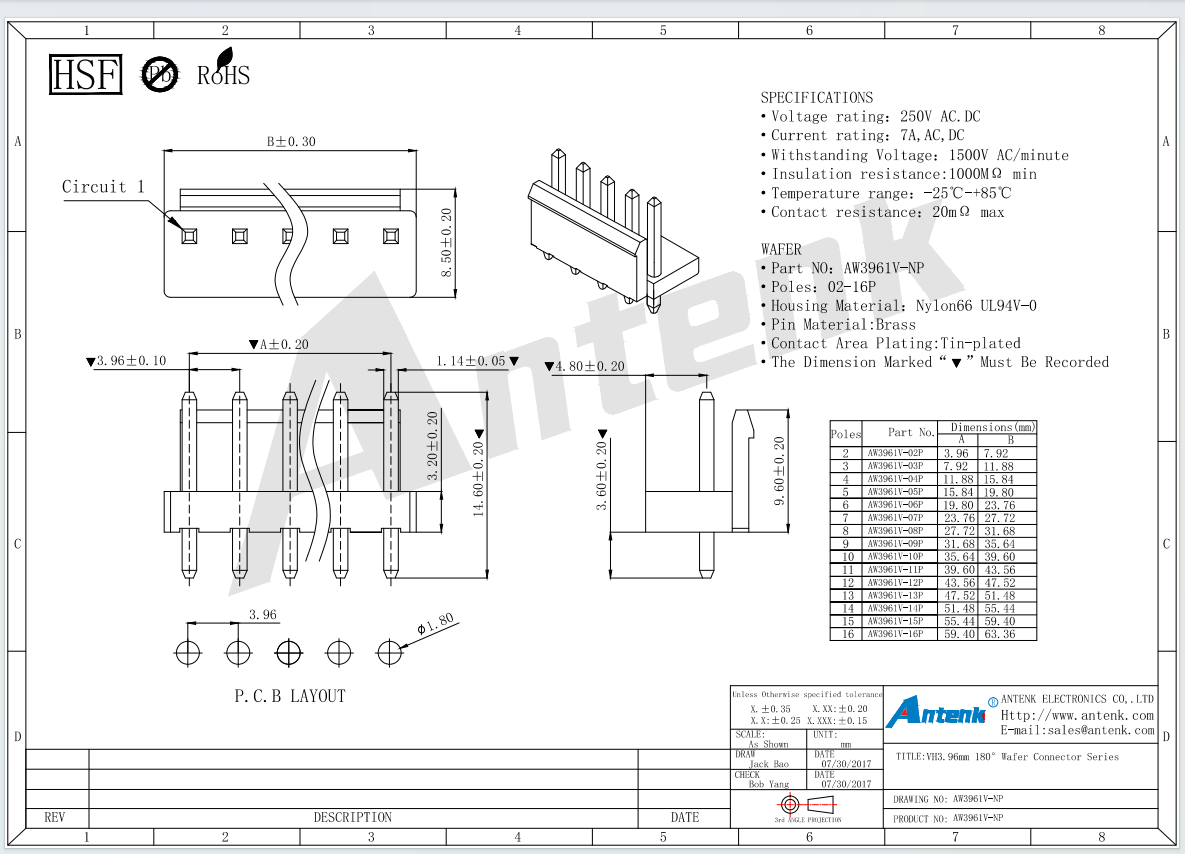

Huizhou Antenk Electronics Co., Ltd. (IATF16949, ISO9001, ISO14001 certified) presents the VH3.96mm 180° Wafer Connector Series (AW3961V-NP). This vertical wire to board header features a 3.96mm pitch, straight orientation, and is designed for power distribution applications requiring high current and voltage capability. The insulator is molded from UL94 V-0 rated Nylon66, offering excellent mechanical strength and flame retardancy. Contacts are stamped from brass with tin plating on the contact area. Per the attached datasheet, key specifications include current rating 7A AC/DC, voltage rating 250V AC/DC, withstanding voltage 1500V AC per minute, contact resistance 20 milliohms max, insulation resistance 1000 megohms min, and operating temperature range from -25°C to +85°C. The 3.96mm wide pitch provides increased creepage distance for safety, while the 180° straight pins allow vertical PCB mounting and easy mating with corresponding VH female housings. Available in poles from 2 to 16. RoHS and REACH compliant, UL recognized under E472792.

Applications include power supplies, LED lighting drivers, battery chargers, household appliances, industrial control panels, and automotive aftermarket electronics where reliable high current connections are needed. Usage method: solder the through hole pins to the PCB using wave or hand soldering. Mate with a VH series female housing loaded with crimp terminals. The polarization features prevent misinsertion. Precautions: do not exceed 7A per circuit, ensure proper crimping of terminals, verify full mating engagement. Advantages over competitors: Antenks VH3.96mm wafer offers higher current rating (7A) than many similar pitch connectors, and the 1500V withstand voltage ensures safety in power applications. The Nylon66 housing provides superior heat resistance during wave soldering. Low MOQs of 1000 units with no tooling fees for standard pin counts.

Production process: in house mold design, injection molding on 10 Japanese and Taiwanese machines using Nylon66 UL94 V-0, high speed stamping of brass pins on 9 presses, tin plating, automated pin insertion, 100 percent coplanarity and pin alignment inspection, contact resistance (≤20mΩ) and insulation resistance (≥1000MΩ) testing, dielectric withstand (1500V AC) test, 48 hour salt spray test, and final QC with lot traceability. Free samples, 2D and 3D CAD drawings, and 24 hour technical support available. Contact Antenk for custom pin lengths and plating options.
